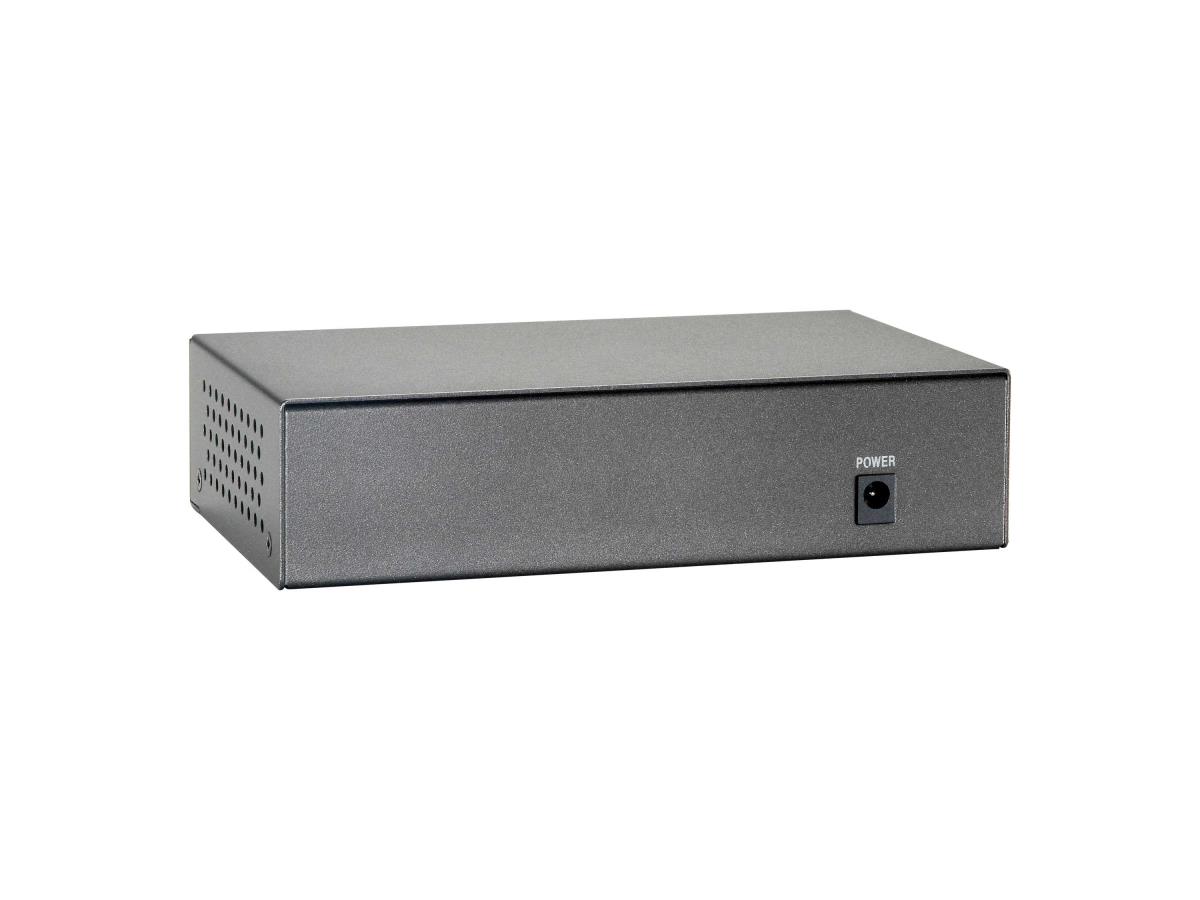

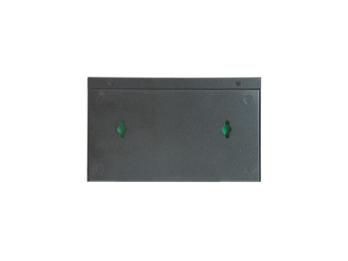

EU Product - LevelOne PoE Switch 8xFE PoE 90W Plastik
Introduction
FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 85W, up to 30W per port
- Simple Plug and Play installation
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Performance | |
| Stackable | No |
| Auto-negotiation | Yes |
| Buffer size | 64 KB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Output voltage | 56 V |
| Power supply included | Yes |
| Power protection features | Over current, Short circuit |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 90 W |
| Technical details | |
| Product colour | Black, Grey |
| Stackable | No |
| Rack mounting | No |
| Power over Ethernet (PoE) | |
| Power protection features | Over current, Short circuit |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 85 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| MAC address table | 1024 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Design | |
| Country of origin | Taiwan |
| On/off switch | Yes |
| Product colour | Black, Grey |
| Stackable | No |
| LED indicators | Activity, LAN, PoE, Power |
| Certification | FCC, CE, RoHS |
| Rack mounting | No |
| Indication | |
| LED indicators | Activity, LAN, PoE, Power |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 99 mm |
| Height | 41 mm |
| Weight | 1.4 kg |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 371 mm |
| Package depth | 230 mm |
| Package height | 82 mm |
| Package weight | 1.6 kg |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Other features | |
| Country of origin | Taiwan |
