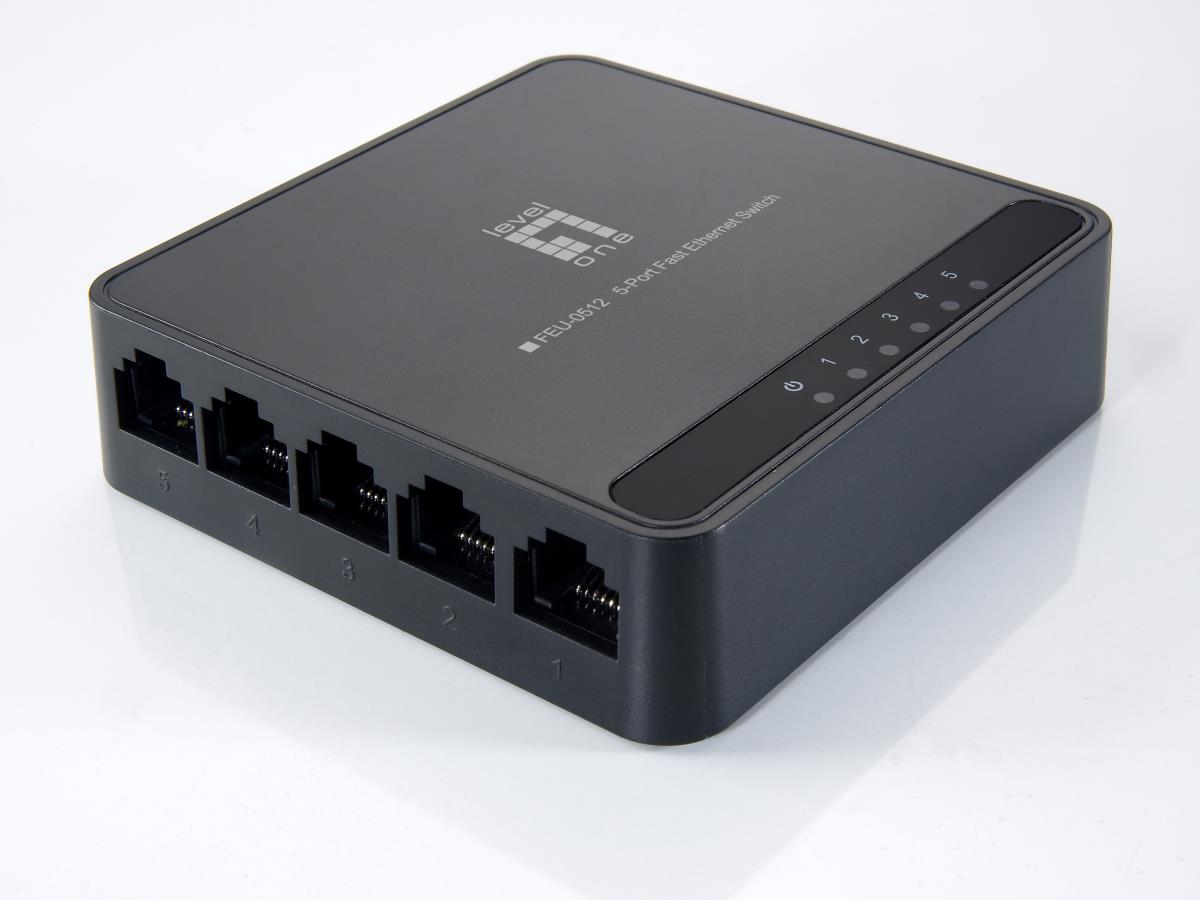

EU Product - LevelOne Switch 5xFE Plastik
Introduction
The LevelOne FEU-0512 is a wire-speed, non-blocking networking device that provides 5 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Packet buffer memory | 0.744 MB |
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Design | |
| Wall mountable | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Country of origin | China |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 0.744 MB |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 1.3 W |
| Input current | 0.55 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 88.2 mm |
| Depth | 52.7 mm |
| Height | 21.8 mm |
| Weight | 47 g |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 123 mm |
| Package depth | 80 mm |
| Package height | 83 mm |
| Package weight | 140 g |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Product colour | Black |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 147 cm |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS, UKCA |
| Memory | |
| Packet buffer memory | 0.744 MB |
| Certificates | |
| Compliance certificates | CE, RoHS, UKCA |
| Indication | |
| LED indicators | Activity, Link, Power |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 271 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 8 kg |
| Products per master (outer) case | 50 pc(s) |
