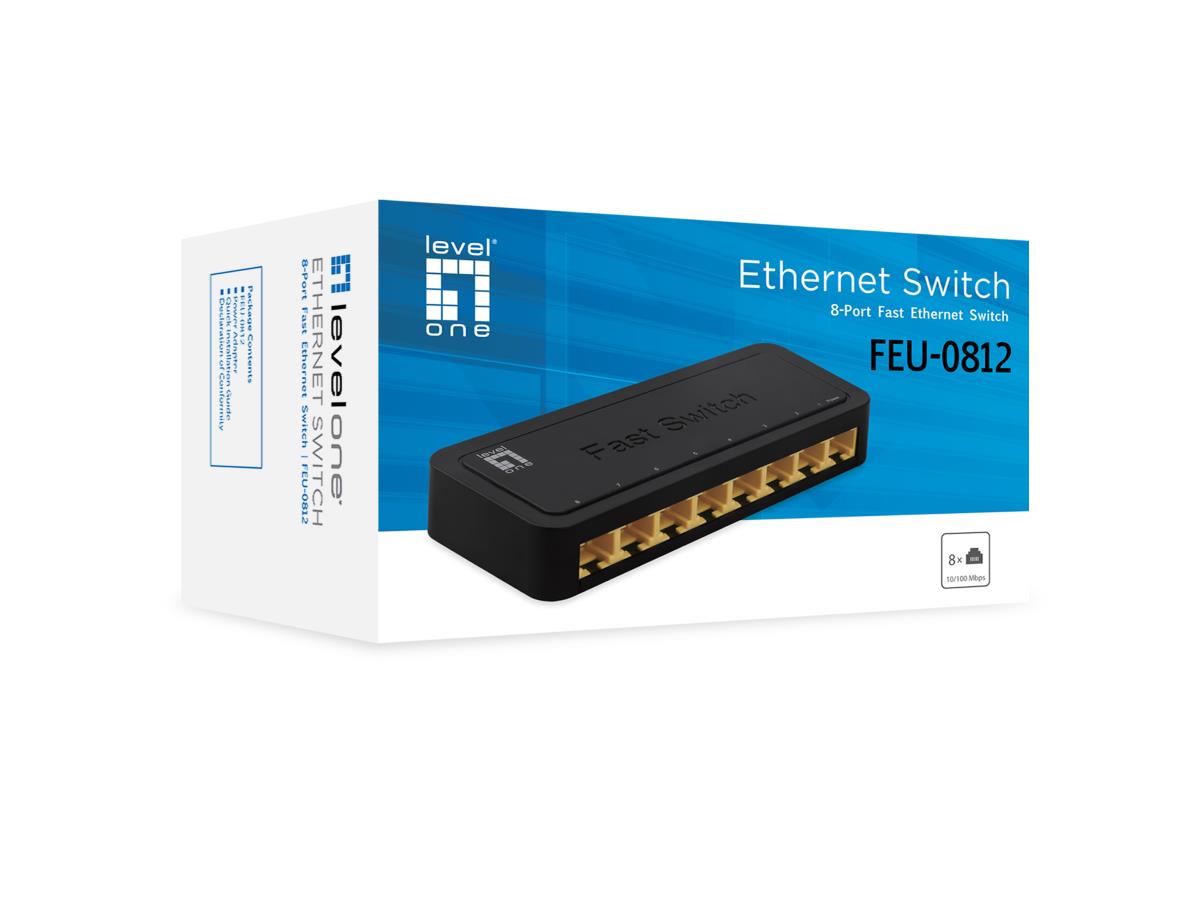

EU Product - LevelOne Switch 8xFE Plastik
Introduction
The LevelOne FEU-0812 is a wire-speed, non-blocking networking device that provides 8 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Packet buffer memory | 1.19 MB |
| MAC address table | 1000 entries |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Activity, Link, Power |
| Rack mounting | No |
| Country of origin | China |
| Certification | CE RoHS |
| Performance | |
| Plug and Play | Yes |
| Fanless | Yes |
| Packet buffer memory | 1.19 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 1.7 W |
| Input current | 0.55 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 130.7 mm |
| Depth | 52.3 mm |
| Height | 20 mm |
| Weight | 110 g |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 145 mm |
| Package depth | 80 mm |
| Package height | 80 mm |
| Package weight | 214 g |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 1.19 MB |
| Certificates | |
| Certification | CE RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
