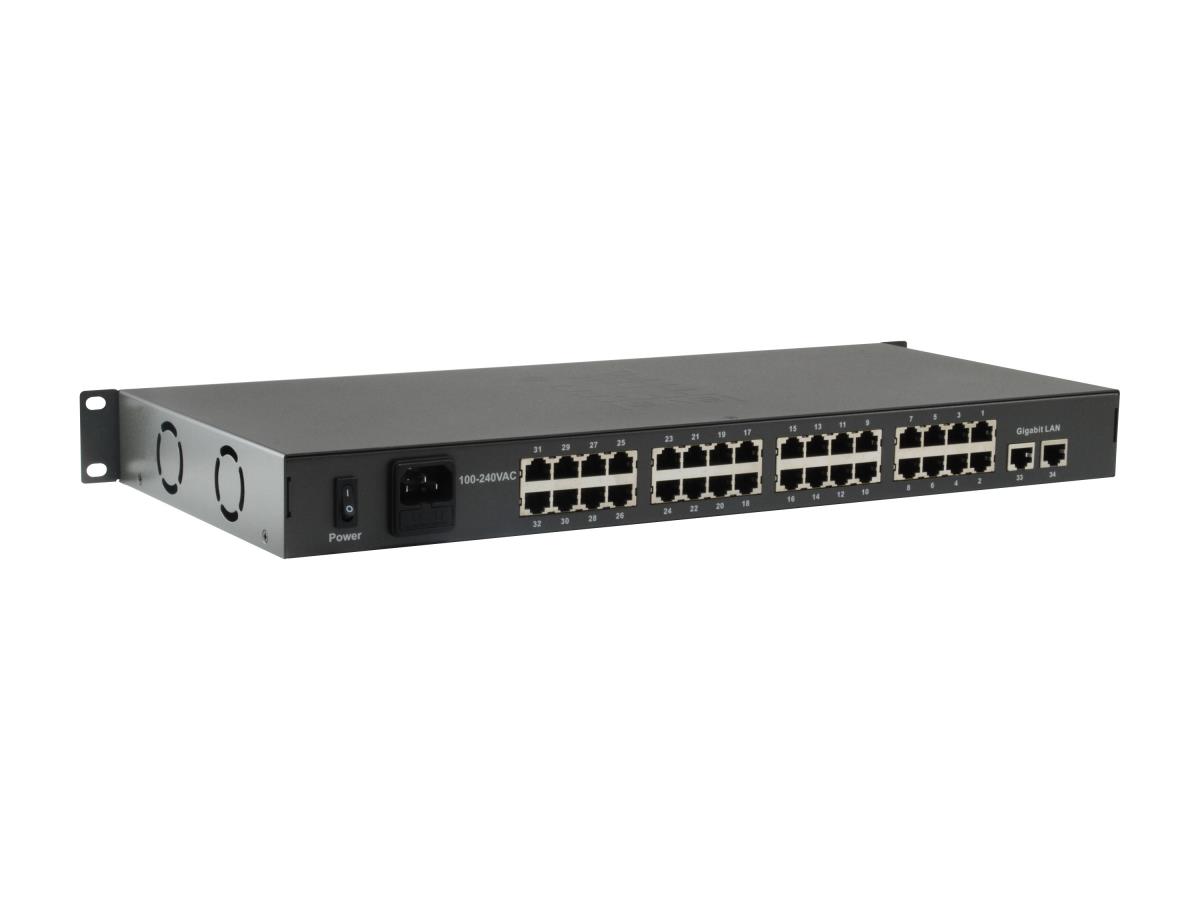

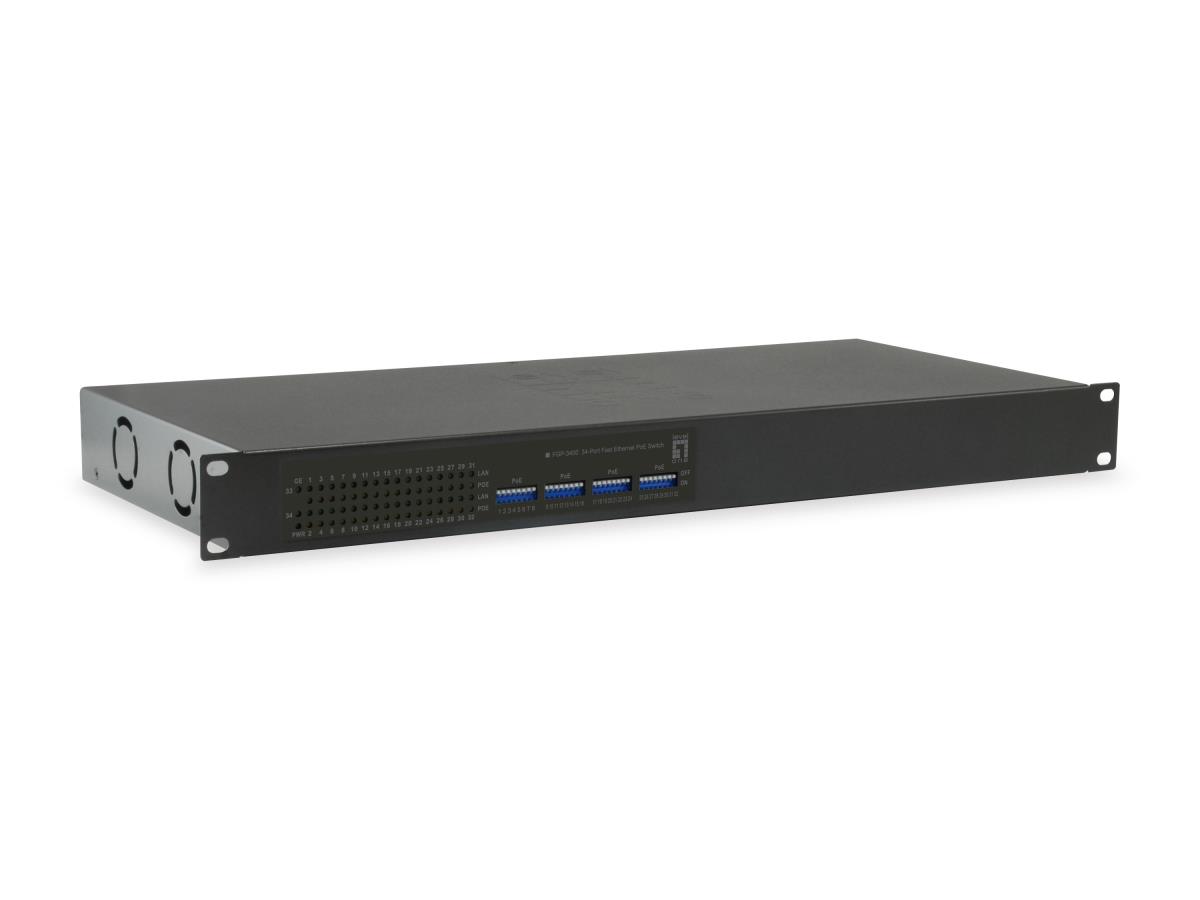

EU Product - LevelOne PoE+Switch 32xFE PoE/2xGE 250W 19" unmanaged Metall
Introduction
The LevelOne FGP-3400 series are unmanaged PoE switches with 32 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 250/380/500/630/760W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-3400 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |

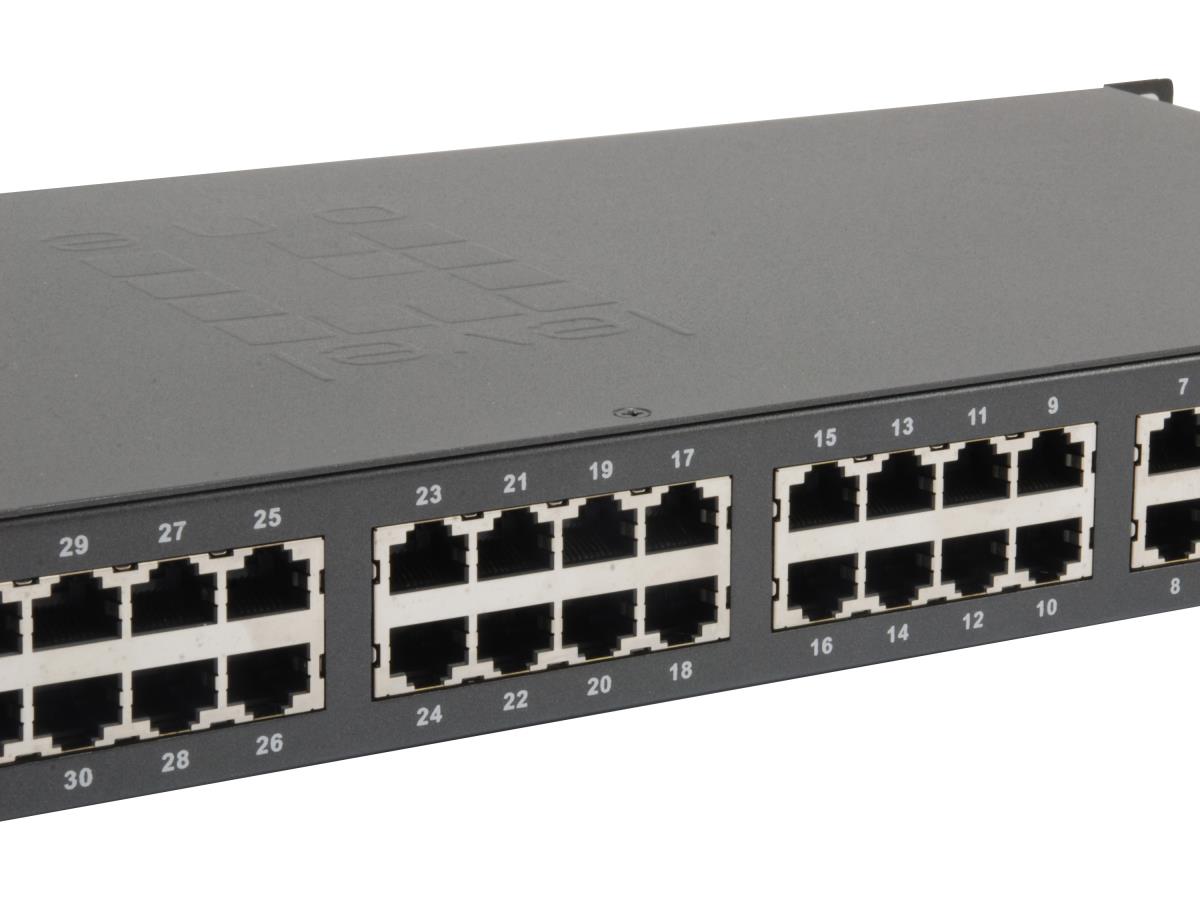

| Basic switching RJ-45 Ethernet ports quantity | 32 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

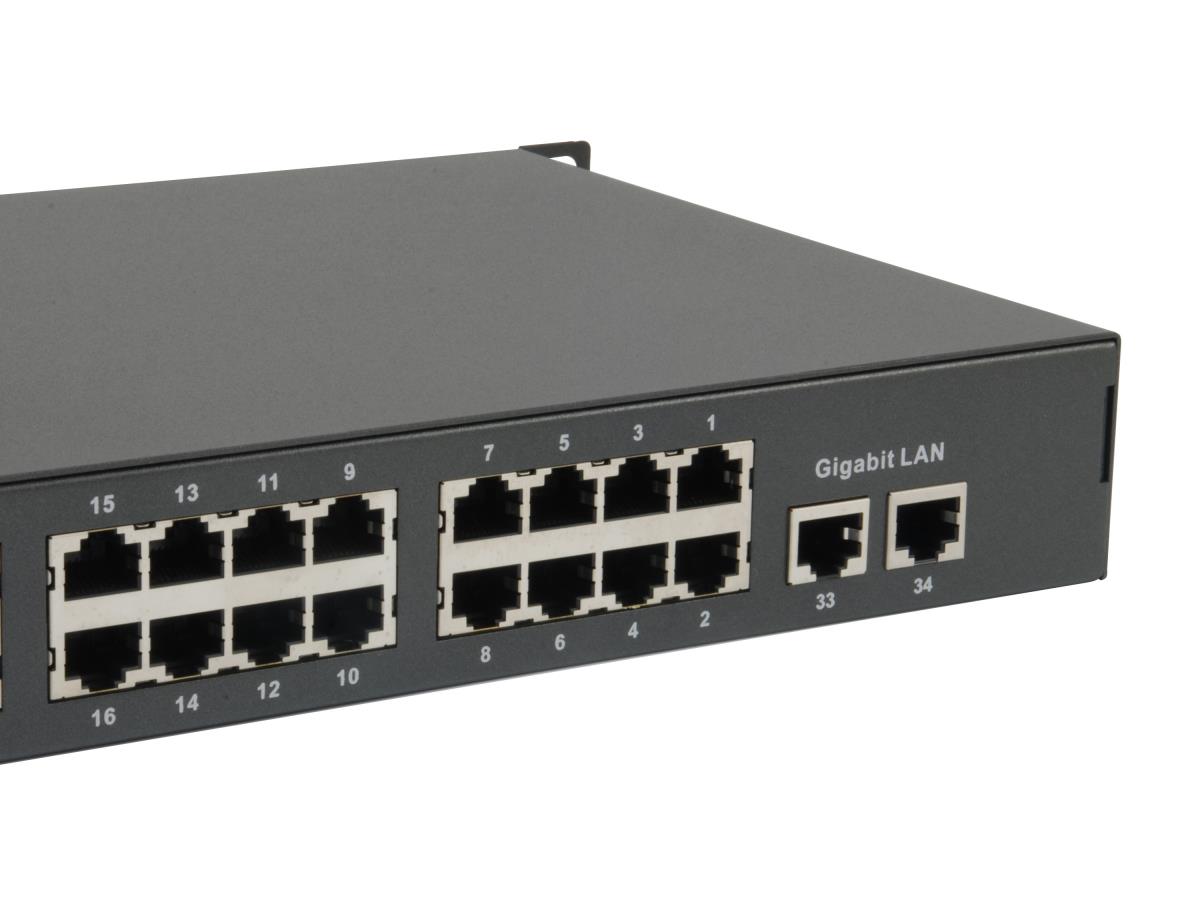

| Gigabit Ethernet (copper) ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 32 |
| Performance | |
| Packet buffer memory | 8 MB |
| Mean time between failures (MTBF) | 74000 h |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 74000 h |
| Rack mounting | Yes |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 16000 |
| Packet buffer memory | 8 MB |
| MAC address table | 32000 entries |
| Switching capacity | 10.4 Gbit/s |
| Jumbo frames support | Yes |
| Memory | |
| Packet buffer memory | 8 MB |
| Design | |
| Country of origin | Taiwan |

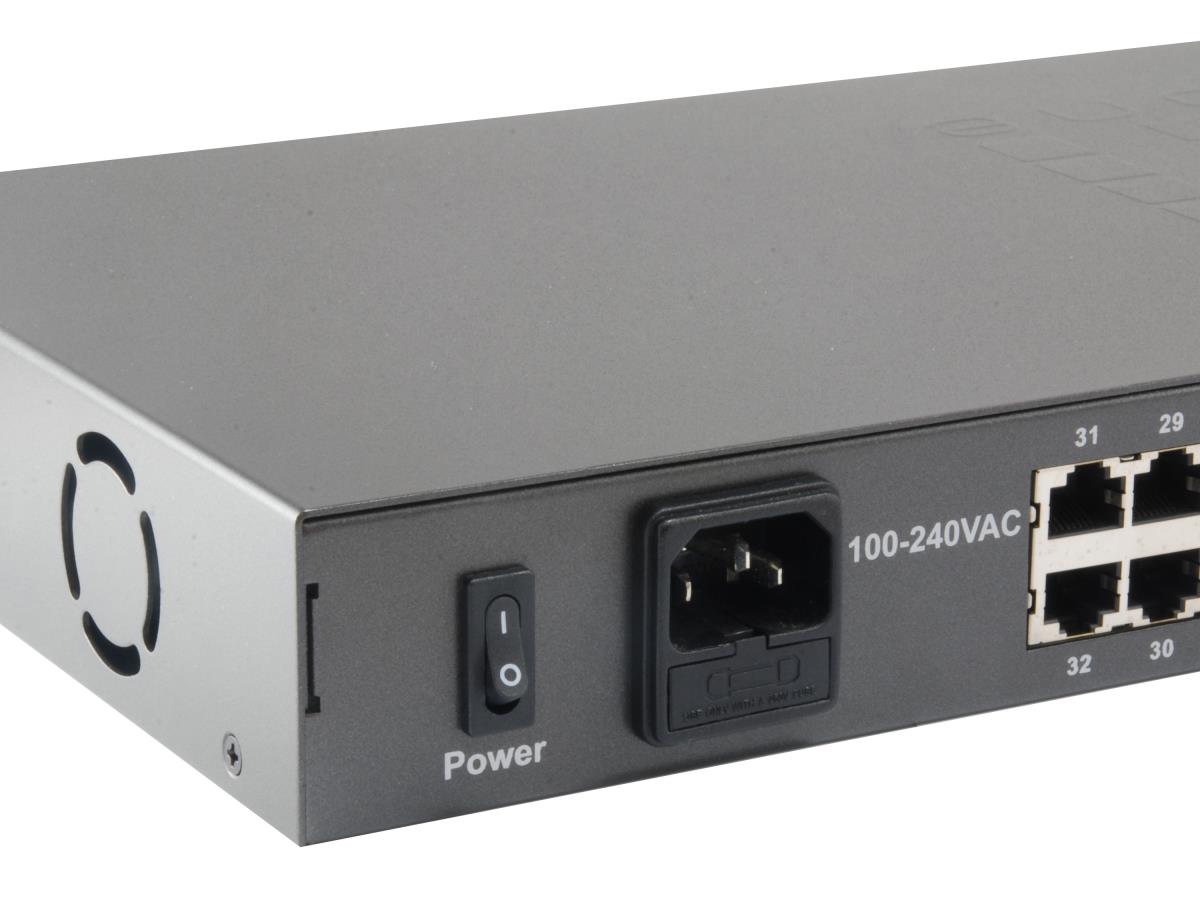

| On/off switch | Yes |
| Product colour | Black |
| LED indicators | LAN, PoE, Power, Uplink |
| Rack mounting | Yes |
| Indication | |
| LED indicators | LAN, PoE, Power, Uplink |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 195 mm |
| Depth | 480 mm |
| Height | 45 mm |
| Weight | 2.8 kg |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| Quick start guide | Yes |
| Package width | 255 mm |
| Package depth | 534 mm |
| Package height | 95 mm |
| Package weight | 3.3 kg |
| Cables included | AC |
| Logistics data | |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 17.8 kg |
| Products per master (outer) case | 5 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Other features | |
| Country of origin | Taiwan |
