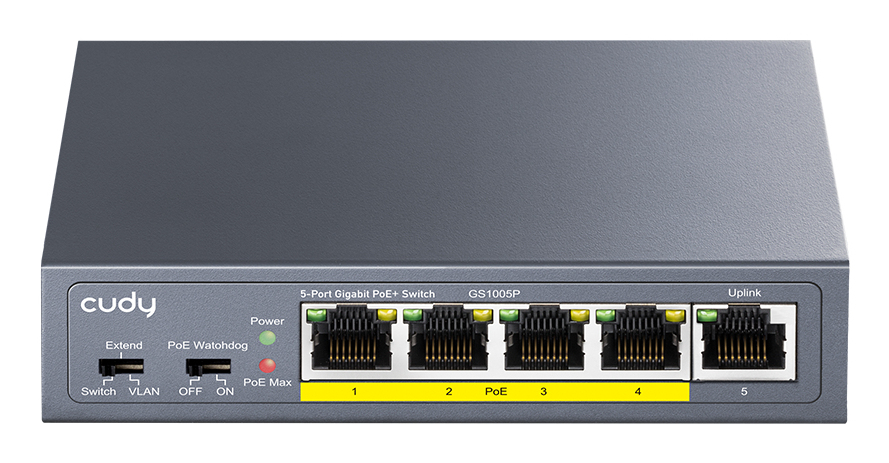

EU Product - GSwitch 5P GS1005P PoE+ - Switch - Switch - 1 Gbps

Introduction

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery
Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

PoE Management Made Simple

Extend PoE Reach. Enhance Client Security.

Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Easy Installation. Robust Protection.

Plug and Play
Connect your router to the uplink port, client devices to PoE ports, and power on the PoE switch—then you're good to go.

Fit into a Distribution Box
Fits easily into most distribution boxes and makes cable management a breeze.

Protect Clients with Outstanding EMC
Shield your cameras and access points, from surges in power grid and ESD, delivering rock-solid reliability.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Metal Casing. Wallmount Ready.
Metal casing delivers simplicity and protection for the network hub. Need to save floor spaces? The wall-mounting kit is included in the box to help you.

Versatile Scenarios

Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Uplink ports quantity	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Data transmission
MAC address table	2048 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Design
Product colour	Grey
LED indicators	Activity, Link, PoE, Power
Housing material	Metal
Country of origin	China
Performance
Plug and Play	Yes
Power
Power consumption (max)	60 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	5 W
Input voltage	52 V
Input current	1.25 A
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE)	Yes
Other features
Warranty period	1 year(s)
Input voltage	52 V
Ethernet LAN data rates	10,100,1000 Mbit/s
Country of origin	China
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	119 mm
Depth	85 mm
Height	28 mm
Weight	261 g

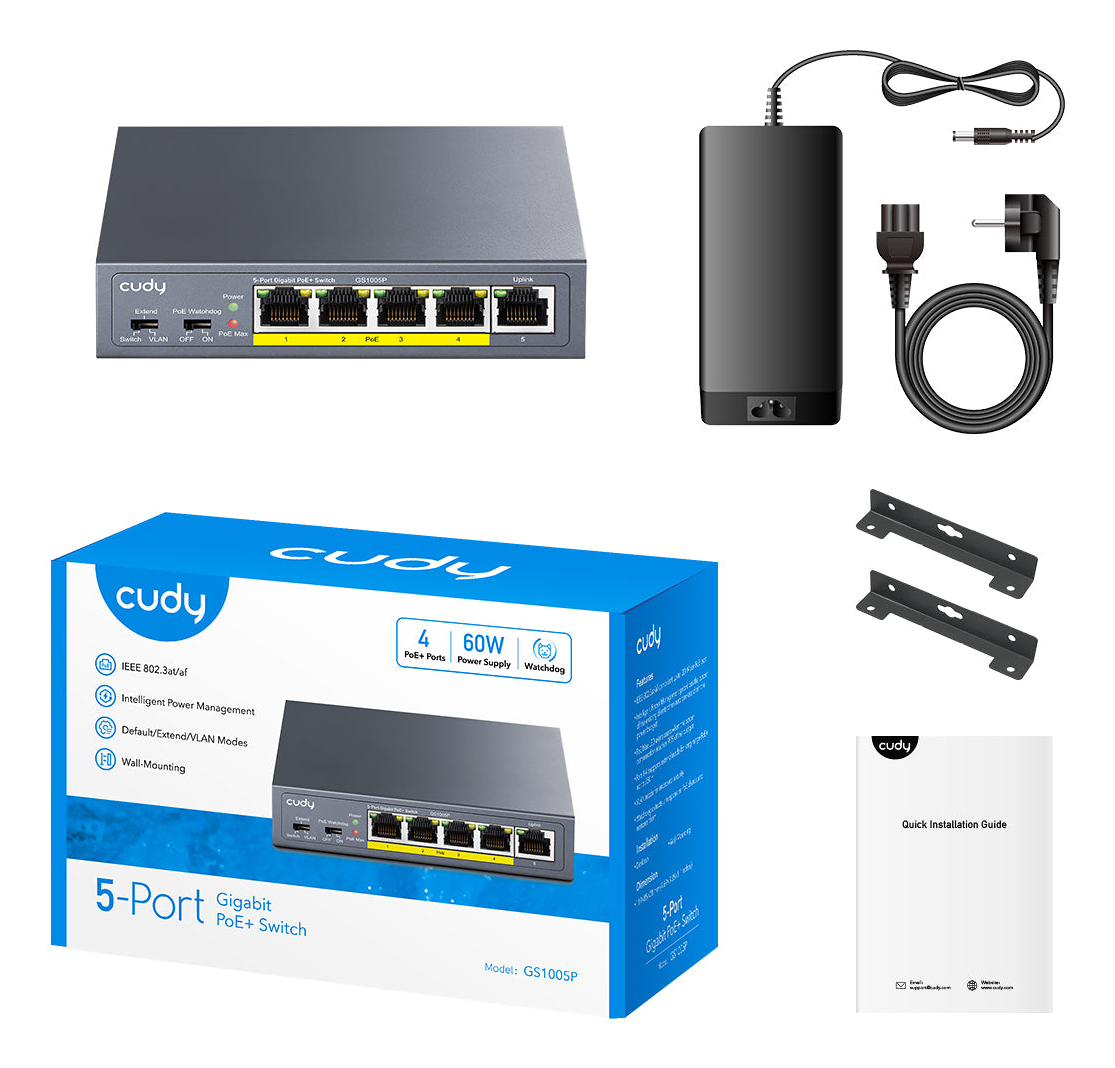

Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC, DC
Packaging data
Package type	Box
Package width	186 mm
Package depth	123 mm
Package height	81.5 mm
Package weight	784 g
Rack mount kit	Yes
User guide	Yes
Cables included	AC, DC
Technical details
Product colour	Grey
Housing material	Metal
Warranty period	1 year(s)
Indication
LED indicators	Activity, Link, PoE, Power
Logistics data
Country of origin	China
