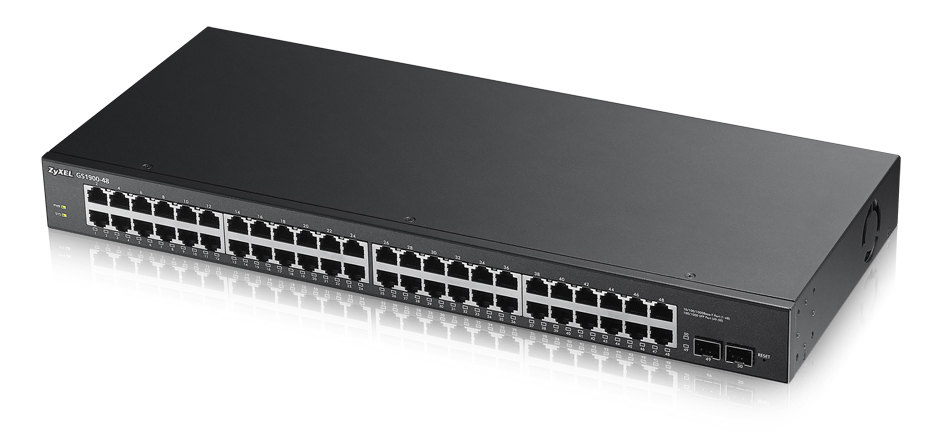

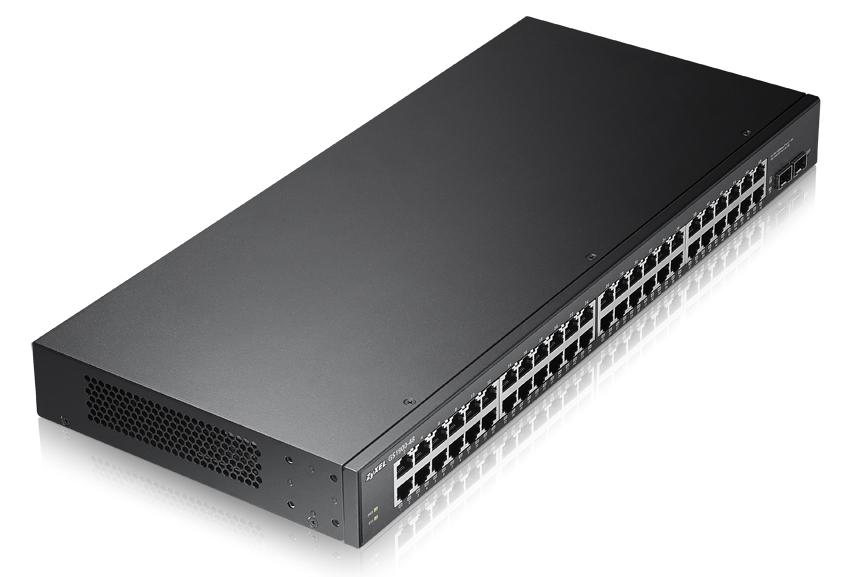

EU Product - Smart Switch 48x Port GbE L2,rackmount
Introduction
Simple, Fast and Smart Managed Switches for Small Business Connectivity
The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. The 1900 Series consists of eight (8) models—the GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.
Specifications
| Power | |
|---|---|

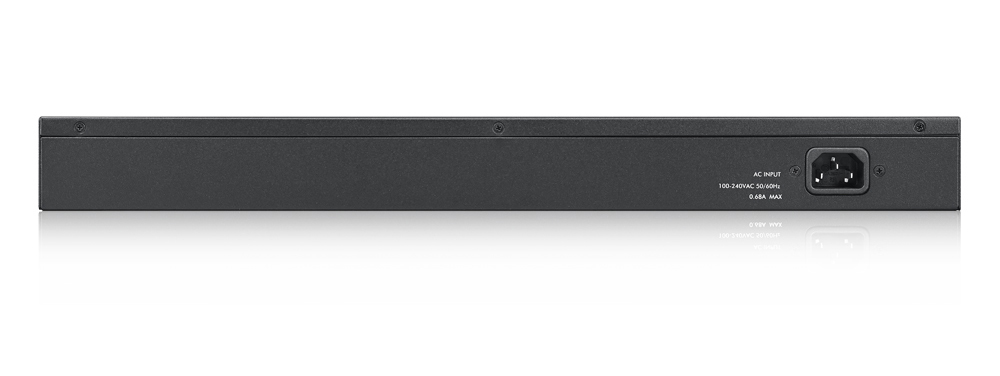

| Power connector | AC-in jack |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Management features | |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| Throughput | 74 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 100 Gbit/s |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 126 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 29 kg |
| Packaging data | |
| Package width | 509 mm |
| Package depth | 292 mm |
| Package height | 93 mm |
| Package weight | 4.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
