EU Product - Layer 2 Managed PoE++ Switch with 4 10G SFP ports 720W - Switch - 0.1 Gbps
Introduction

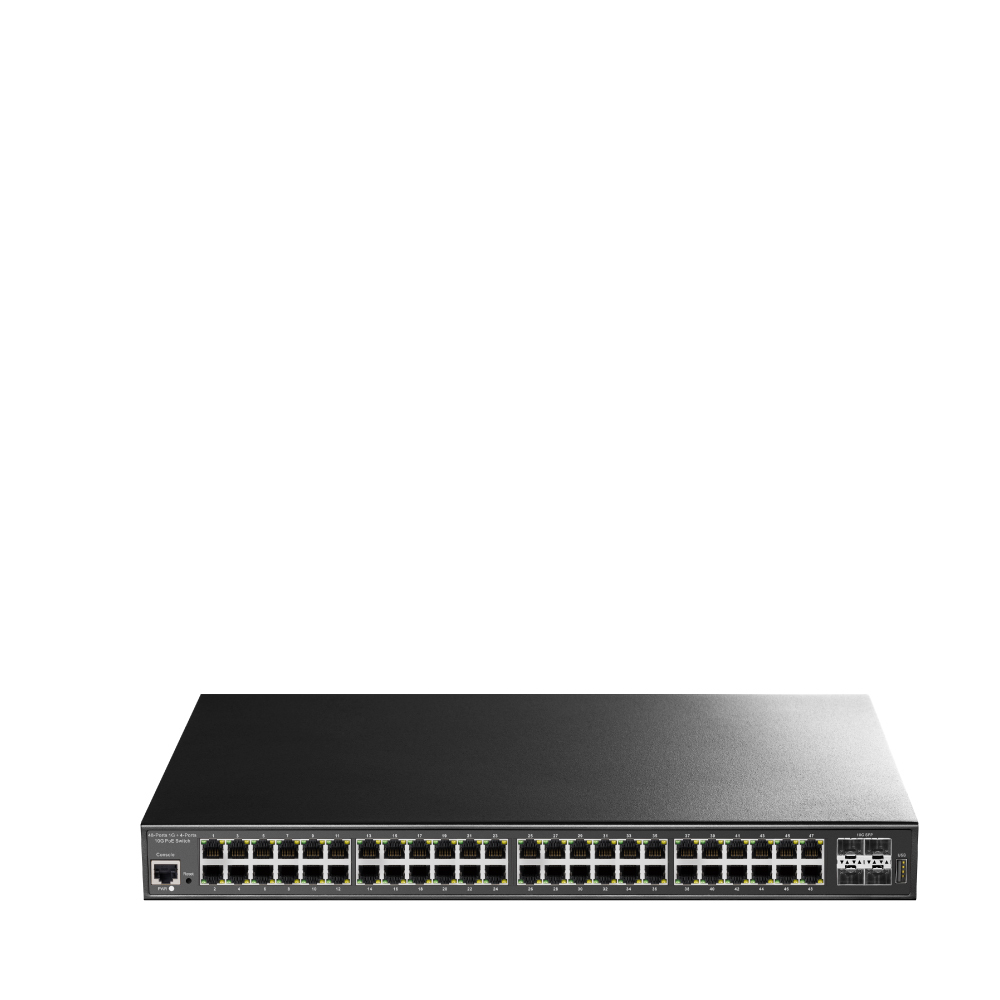

48-Port PoE + 4-Port Uplink
- 10/100/1000Mbps Ethernet ports
- IEEE 802.3af / 802.3at / 802.3bt compliant
- 720W total PoE power supply.
- Ideal for installing 48 PoE devices
- Auto-sensing technology delivers up to 90W of power to an 802.3bt PoE ++ device with backward compatibility for 802.3at PoE+ (30W) and 802.3af PoE (15.4W) devices
Highlight Features
- 4 x 10G SFP Slots
- 1-4 ports support IEEE802.3af/at/bt
- 5-48 ports support IEEE802.3af/at
- Support for the 19-inch cabinet installation
- Support desktop installation

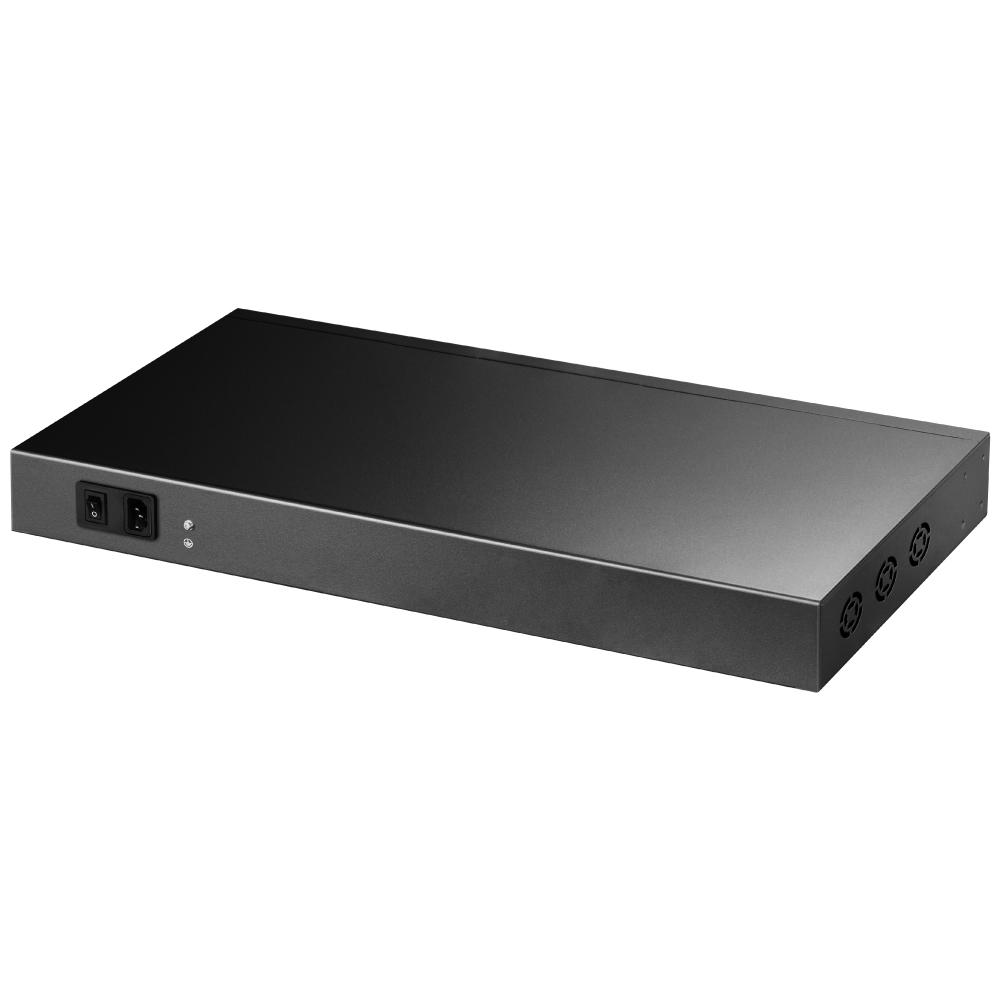

Heat Dissipation
- Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
- Built-in fan and venting holes help to dissipate heat quickly and ensure stable product operation
- High Quality TPS PoE chipset inside
- High Quality TPS PoE chipset inside ensure High performance and stable operation of the product.
Auto-sensing technology
- The port power prioritization technology ensures the continuous power supply of the key nodes.
Lightning protection
- Electrostatic standard: contact 6KV, air 8KV
- MTBF > 50000 hour
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| MAC address auto-learning supported | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, VLAN mapping, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 12000 |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 130.944 Mpps |
| Number of VLANs | 4096 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Security algorithms | SNMP, SNMPv2 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Authentication type | AAA, IEEE 802.1x, RADIUS |
| MAC address entries | Static MAC address entries |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| Design | |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Performance | |
| Processor frequency | 400 MHz |
| Memory type | DDR3-SDRAM |
| Mean time between failures (MTBF) | 50000 h |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 2 MB |
| Auto-negotiation | Yes |
| Power | |
| Surge protection voltage | 8 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, VLAN mapping, Voice VLAN |
| Packaging content | |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 50000 h |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Packaging data | |
| Cables included | AC |
