Introduction

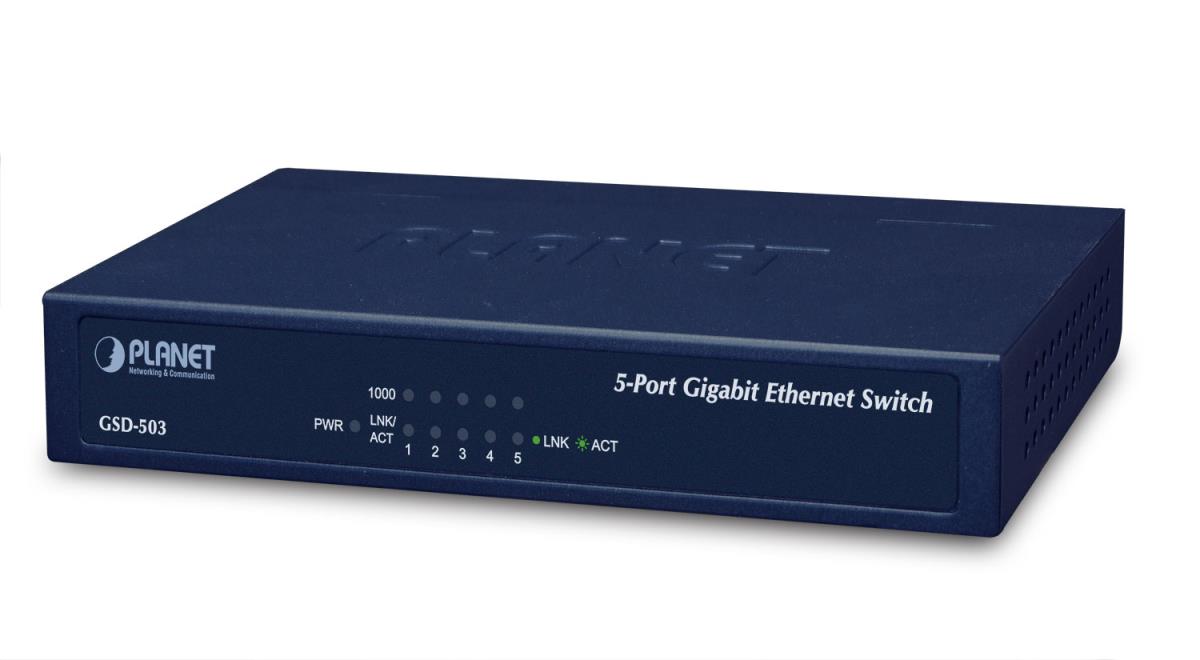

With concepts of "Easy to Install and use", "Compact-sized design", and "Simple troubleshooting", PLANET GSD-503 provides cost-conscious business and home users an integrated system of small-office / home-office networking. The GSD-503 is the fancy-shape standard metal model and just right for your network in compact housing and deployment.

General

Model

GSD-503

Type

Fixed Port

Technical Features

Port Count

5

Other Ports

5 x Auto MDI/MDIX ports

Management

Unmanaged

Routing/Switching

Layer 2

Uplink Speed/Media

10/100/1000 Copper

High Availability

None

Protocols/Networks

IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3ab: 1000Base-T,IEEE 802.3x Flow Control

Form Factor

Mounting

Desktop

Power and Operating Requirements

Power Consumption

4.4 Watts

Input Voltage

12V

Dimensions and Weight

Width

155 mm (6.10 inches)

Height

26 mm (1.02 inches)

Depth

86 mm (3.39 inches)

Weight

360 g (12.70 ounces)
