EU Product - LevelOne Industr.Switch 8xFE+DIN Metall
Introduction

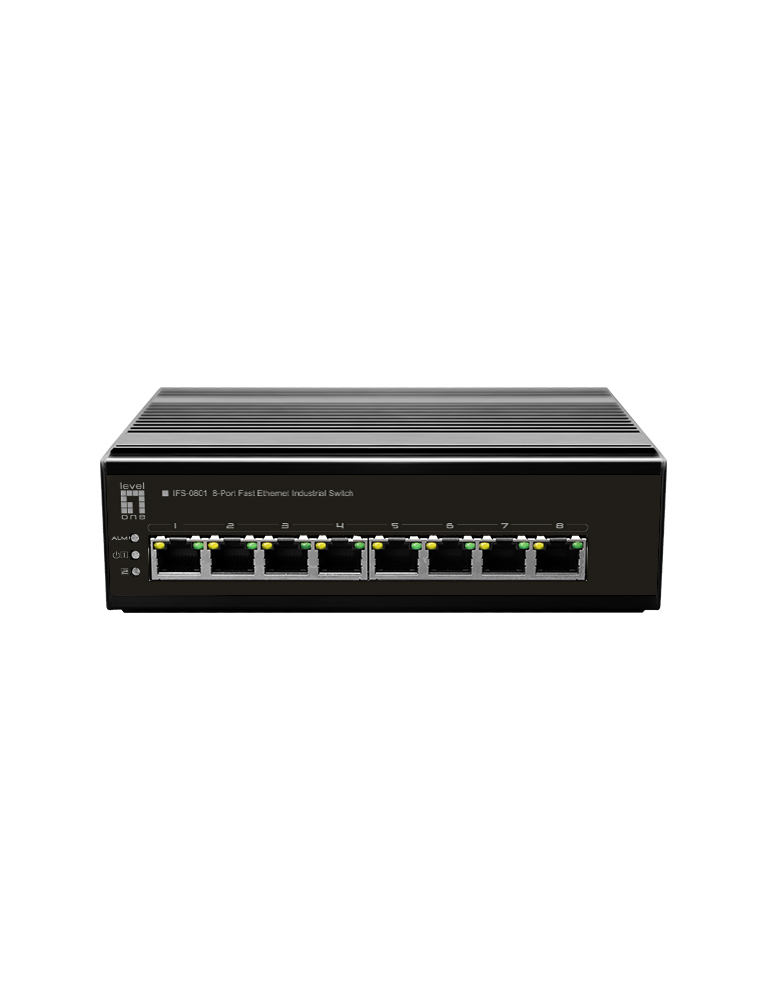

LevelOne IFS-0801 Industry Ethernet Switch provides 8 ports 10/100Base network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity.
Specifications
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Performance | |
| Packet buffer memory | 1 MB |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Packet buffer memory | 1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 1.6 Gbit/s |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power | |
| Power supply included | Yes |
| Surge protection voltage | 8 kV |
| Input voltage | 12 - 60 V |
| Surge protection | Yes |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 114 mm |
| Height | 50 mm |
| Weight | 450 g |
| Packaging data | |
| Terminal block included | Yes |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Terminal block port | Yes |
| Input voltage | 12 - 60 V |
| Packaging content | |
| Terminal block included | Yes |
| Quick start guide | Yes |
