EU Product - LevelOne Industr.PoE Switch 8xGE PoE/+ 360W Managed L2
Introduction

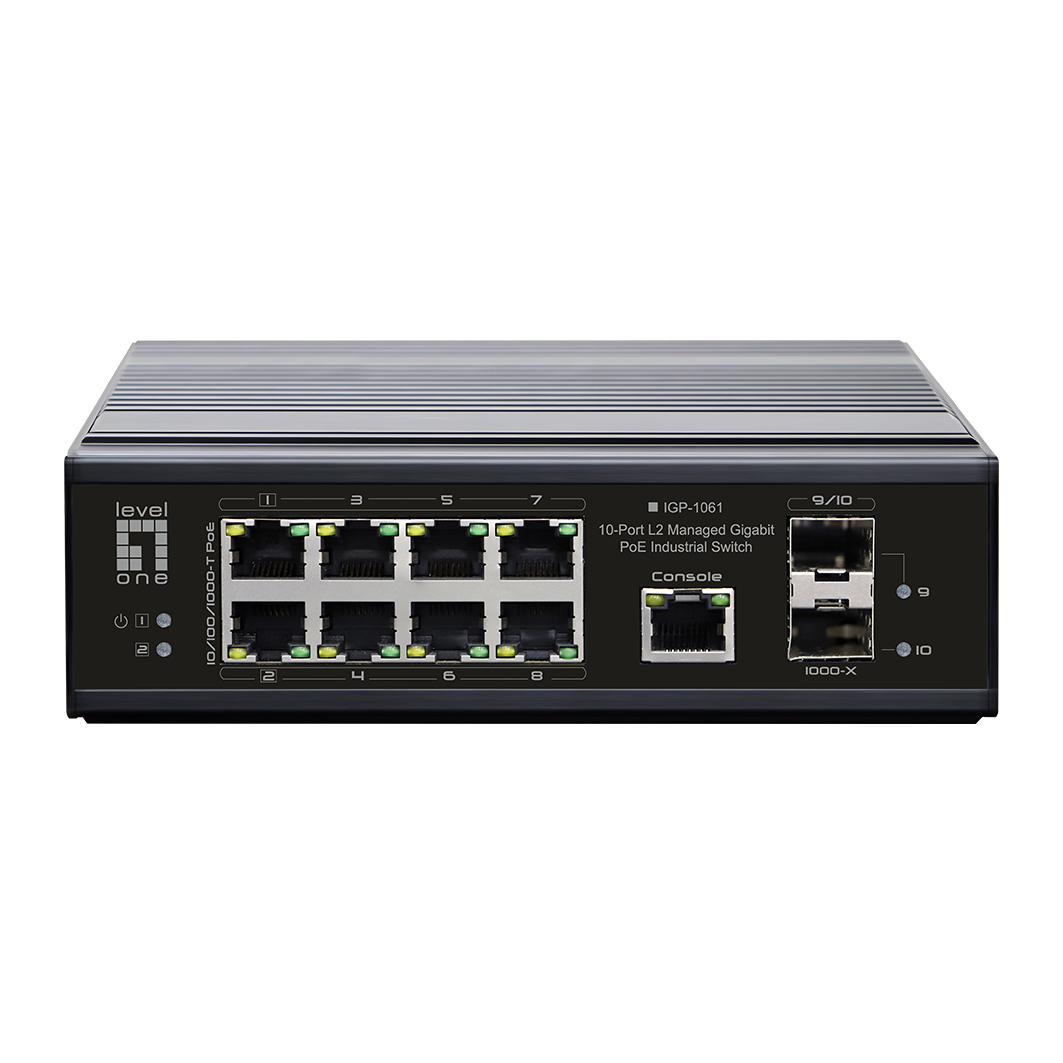

The LevelOne IGP-1061 L2 Managed Gigabit PoE Industrial Switch, provides 8 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Console port | RJ-45 |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Performance | |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 338634 h |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 338634 h |
| Rack mounting | No |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CE, RoHS |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Design | |
| Country of origin | China |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Certification | CE, RoHS |
| Rack mounting | No |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Power | |
| Power consumption (max) | 380 W |
| Power consumption (typical) | 5 W |

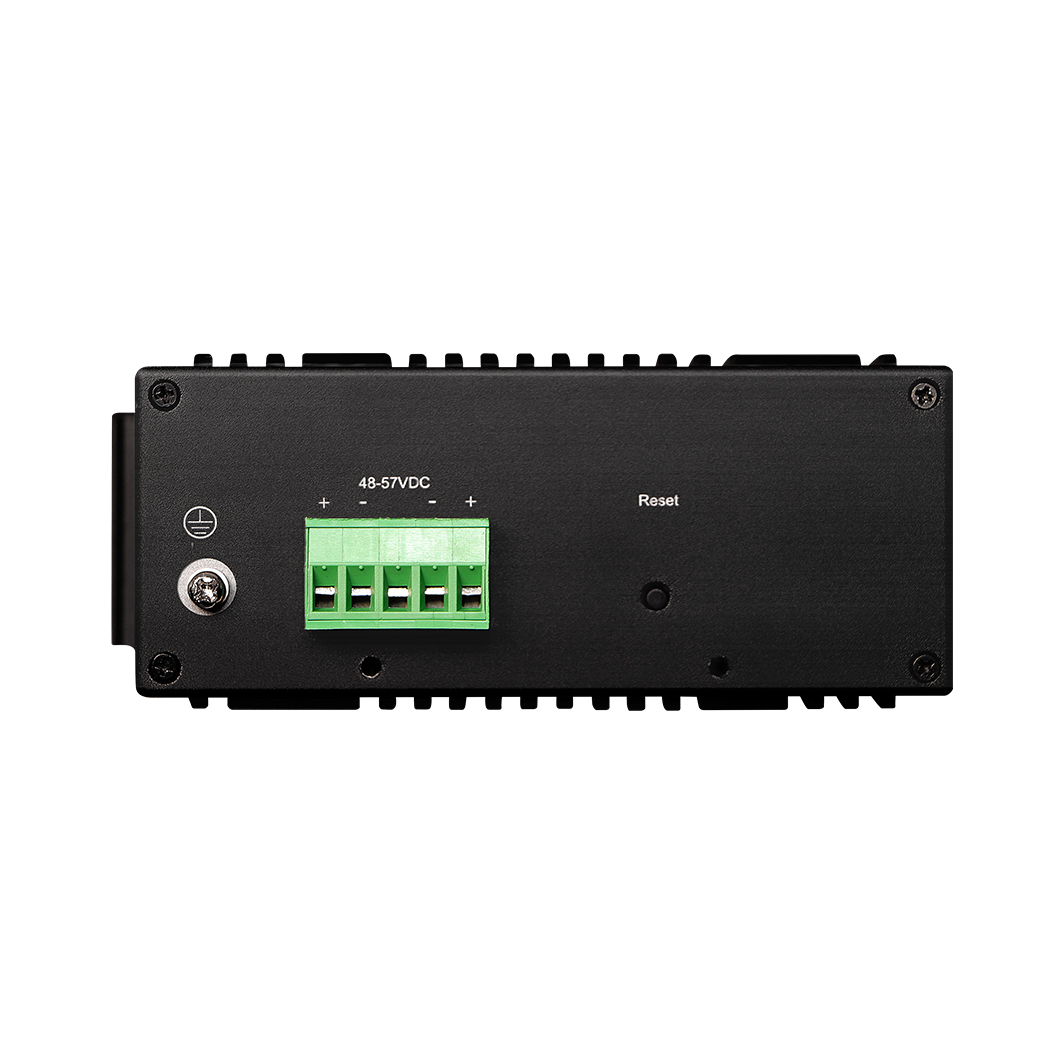

| DC input voltage | 48 - 57 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 10 W |
| Total Power over Ethernet (PoE) budget | 360 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 115 mm |
| Height | 50 mm |
| Weight | 500 g |
| Packaging data | |
| Package type | Box |
| Quick start guide | Yes |
| Package width | 270 mm |
| Package depth | 181 mm |
| Package height | 74 mm |
| Package weight | 1.13 kg |
| Packaging content | |
| Quick start guide | Yes |
| Other features | |
| Country of origin | China |
