Introduction

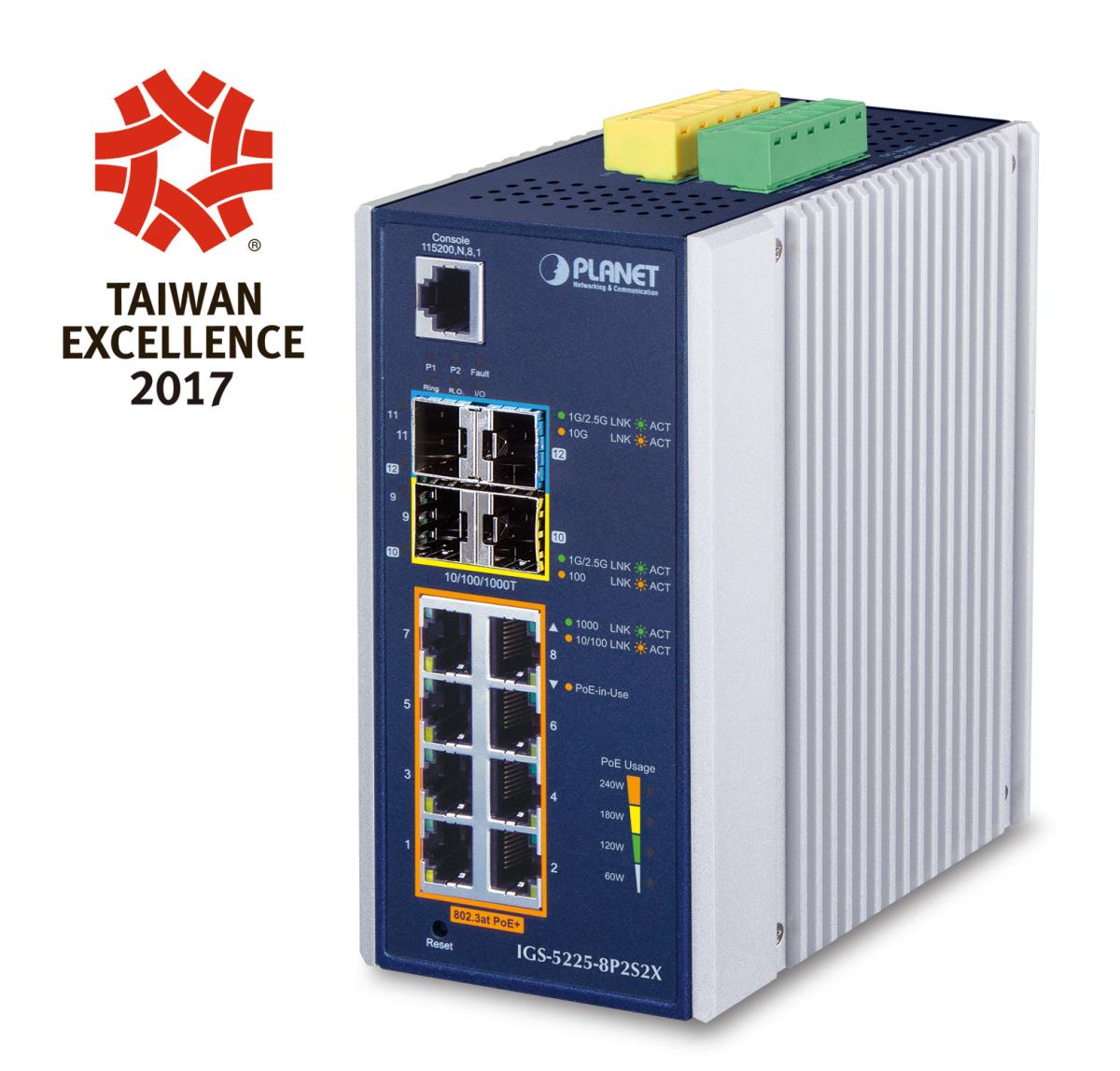

PLANET IGS-5225-8P2S2X is the smallest 10G uplink managed PoE switch in the industrial networking industry. Based on its 10Gbps big pipe connectivity to core networks, the IGS-5225-8P2S2X, equipped with 8 Gigabit ports featuring 36-watt 802.3at PoE+ and two 10Gbps SFP+ uplink slots, meets the demands of high power consumption and high bandwidth for 11ac Gigabit Wi-Fi APs, other PoE applications or those requiring heavy traffic loading.

General

Model

IGS-5225-8P2S2X

Type

Fixed Port

Technical Features

Port Count

8

Management

Fully Managed

Routing/Switching

Layer 2 to 4

Uplink Speed/Media

10/100/1000 Copper

High Availability

None

Features

PoE+

Ports/Interfaces

RJ-45,SFP and SFP+

LEDs

LAN, PoE, System

Form Factor

Mounting

Rack

Dimensions and Weight

Width

72 mm (2.83 inches)

Height

152 mm (5.98 inches)

Depth

107 mm (4.21 inches)

Weight

1.68 kg (3.70 lb)
