EU Product - LevelOne Industr.PoE Switch 24xGE PoE/+ 370W Managed L2
Introduction

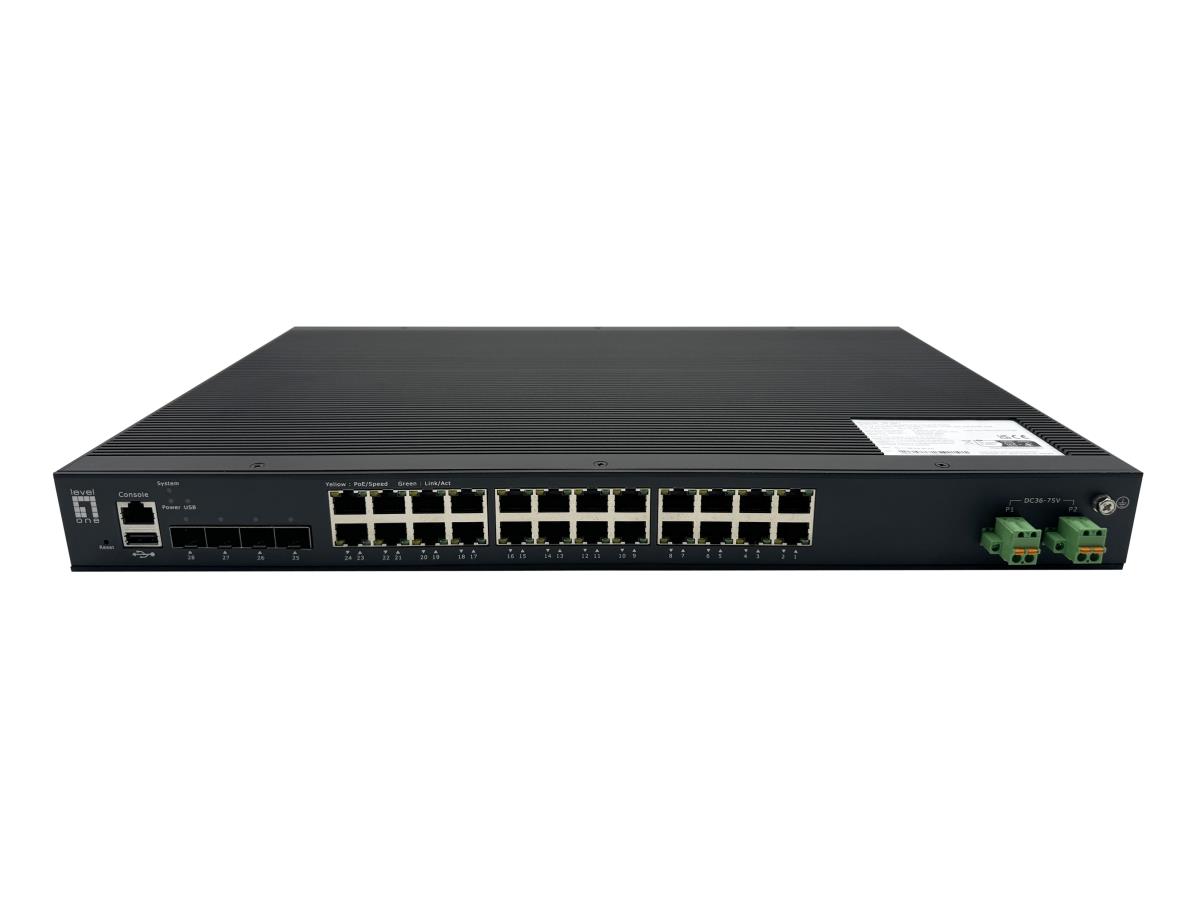

The IXP-2871 is a high-performance industrial Ethernet switch with 24 PoE ports and 4 SFP+ slots. It delivers up to 370W of PoE power, with Ports 1-2 supporting up to 90W and Ports 3-24 supporting up to 30W, providing flexibility in power allocation for various powered devices. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time. Its wide operating temperature range, DC Redundant power supply, and fanless design ensure uninterrupted operation in harsh industrial conditions. Ideal for large-scale industrial networks.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| USB Type-A ports quantity | 1 |
| Terminal block port | Yes |
| Network | |
| Cable length detection | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Port trunking | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 16000 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 190.4 Mpps |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | IEEE 802.1x |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| International Protection (IP) code | IP40 |
| Product colour | Black |
| LED indicators | Fault, PoE, Power, Status, USB |
| Rack mounting | Yes |
| Country of origin | China |
| Performance | |
| Mean time between failures (MTBF) | 200000 h |
| Telnet | Yes |
| Dying Gasp | Yes |

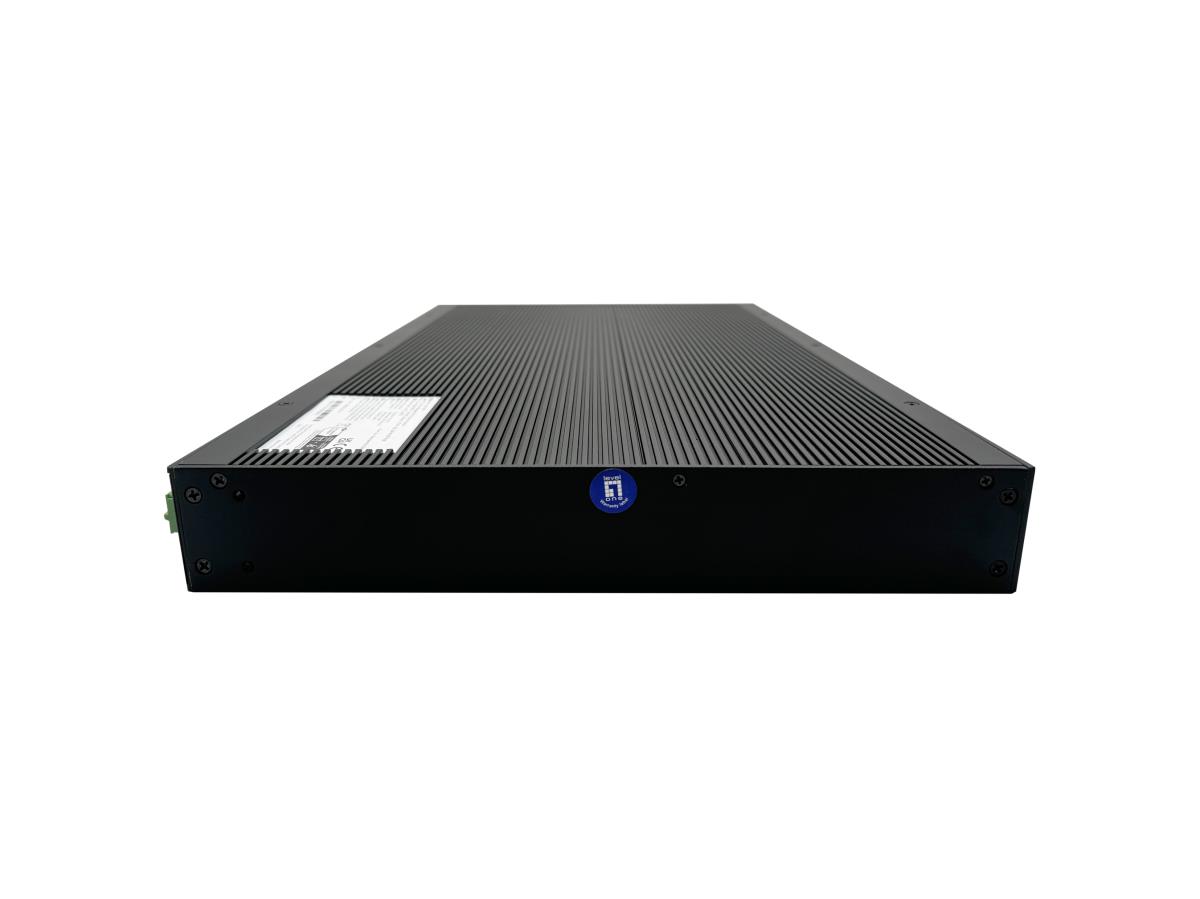

| Fanless | Yes |
| Packet buffer memory | 12 MB |
| Harmonized System (HS) code | 851762 |
| Power | |
| Power consumption (max) | 402 W |
| Surge protection voltage | 6 kV |
| Power consumption (typical) | 32 W |
| Redundant power supply (RPS) support | Yes |
| Surge protection | Yes |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Other features | |
| Terminal block port | Yes |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 280 mm |
| Height | 45 mm |
| Weight | 4.14 kg |

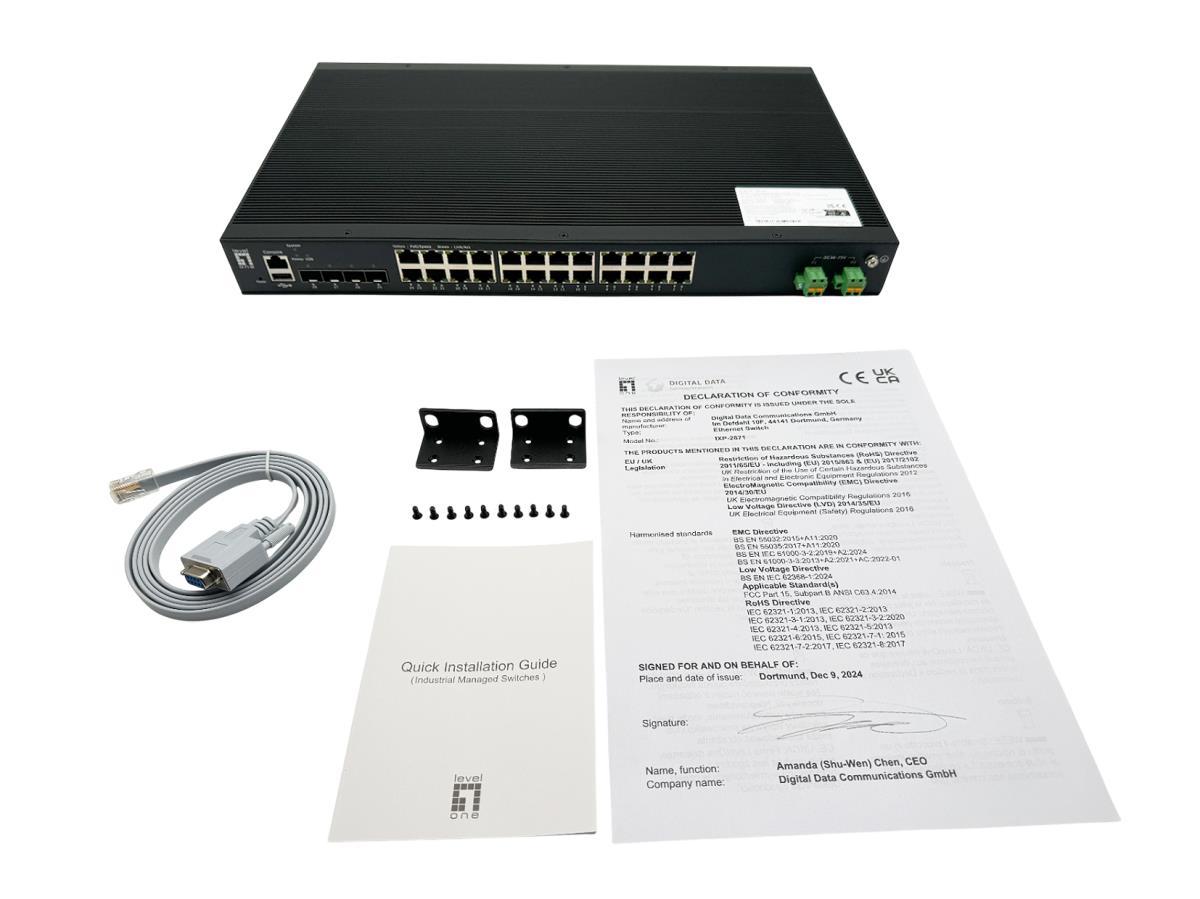

| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) to DB9 |
| Terminal block included | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Package width | 525 mm |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 4.8 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) to DB9 |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 200000 h |
| Rack mounting | Yes |
| Port trunking | Yes |
| Telnet | Yes |
| Dying Gasp | Yes |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Compliance certificates | UKCA, Federal Communications Commission (FCC), RoHS, CE |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Compliance certificates | UKCA, Federal Communications Commission (FCC), RoHS, CE |
| Indication | |
| LED indicators | Fault, PoE, Power, Status, USB |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 408 mm |
| Master (outer) case gross weight | 10.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Pallet gross height | 177.6 cm |
| Harmonized System (HS) code | 851762 |
