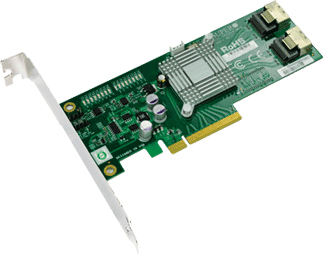

EU Product - Supermicro AOC-SAS2LP-MV8 interface cards/adapter Internal

Introduction

Supermicro's SAS2LP-MV8 controller (based on the Marvell 9480 host controller) provides 8-port SAS/SATA HDD support via PCI-E by 8 bus interface with high-performance features. Serving as a 3rd generation SAS/SATA storage card, the AOC-SAS2LP-MV8 offers double the data transfer rate of its 1st generation counterpart and offers functionalities for server, workstation and network storage environments in a low-profile PCI platform.

Features & Benefits

• Key Features
• 8-channel SAS/SATA adapter with 600MB/s per channel
• PCI-E x8 interface
• JBOD mode only. No RAID support
• Dimension: 6.6" (length) x 2.7" (width)
• Other Features
• Benefit:     Affordable, easy-install, eight-port SAS/SATA Card
• Key Application:     Storage arrays for Network Attached Storage (NAS) and Nearline Backup
• Device Support:     Up to 8 SAS/SATA disk drives, activity LED indicated for each drive (LED cables not included)
• Data Transfer Rates:     Up to 6.0 Gigabits/sec per port
• RAID:     No
• Bus Type:     PCI-E x8 Gen 2
• Internal Connectors:     2 SFF 8087 connectors
• Supported Operating Systems
• Windows 2003, 2008 and Vista
• RedHat Enterprise Linux
• Fedora Linux 9
• SuSE Linux Enterprise
• CentOS
