EU Product - PCI Express Karte, 4x USB 3.0
Introduction

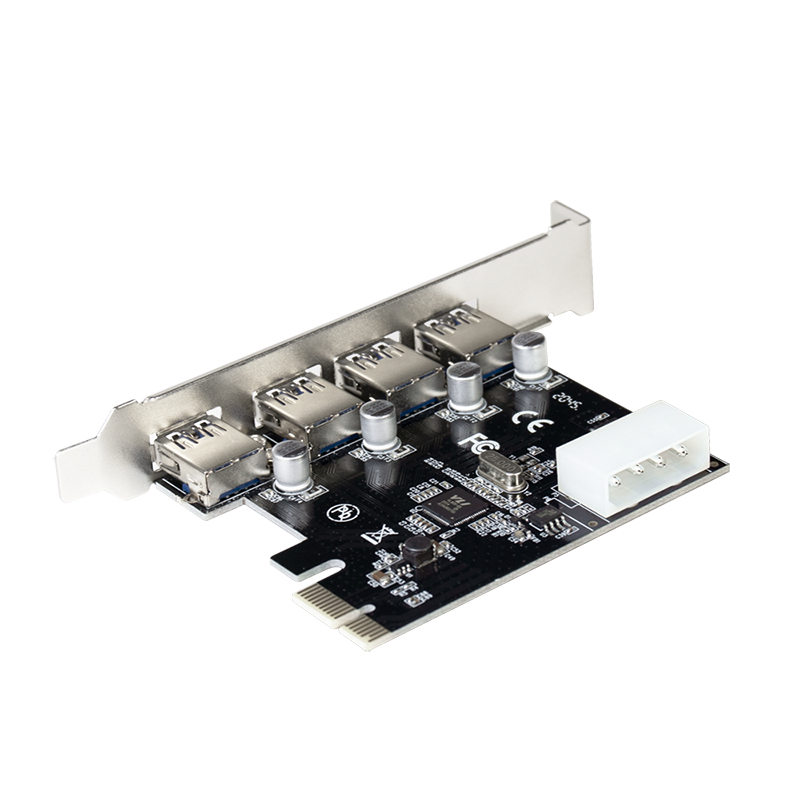

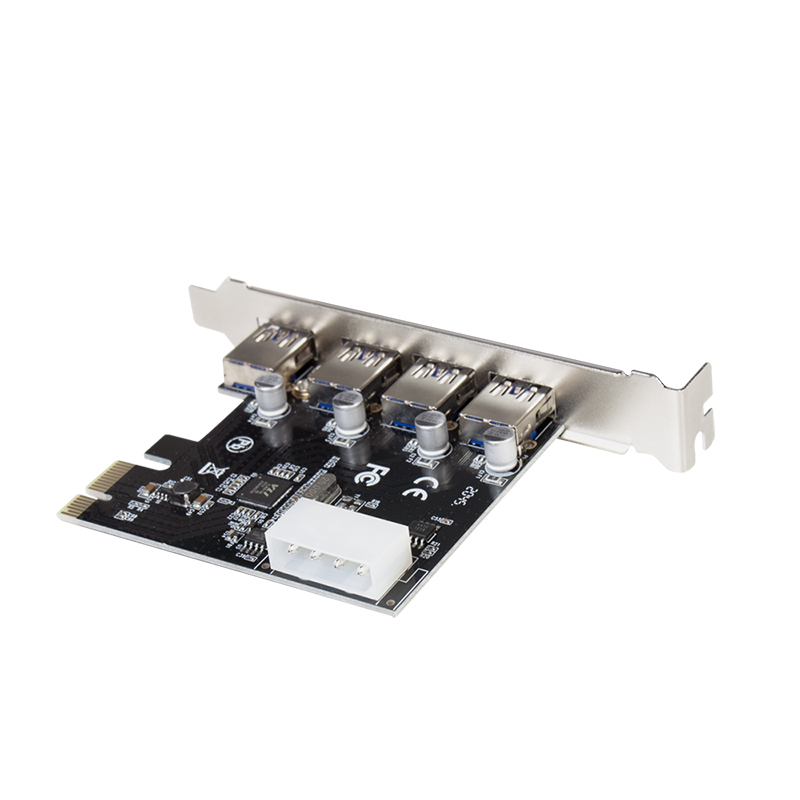

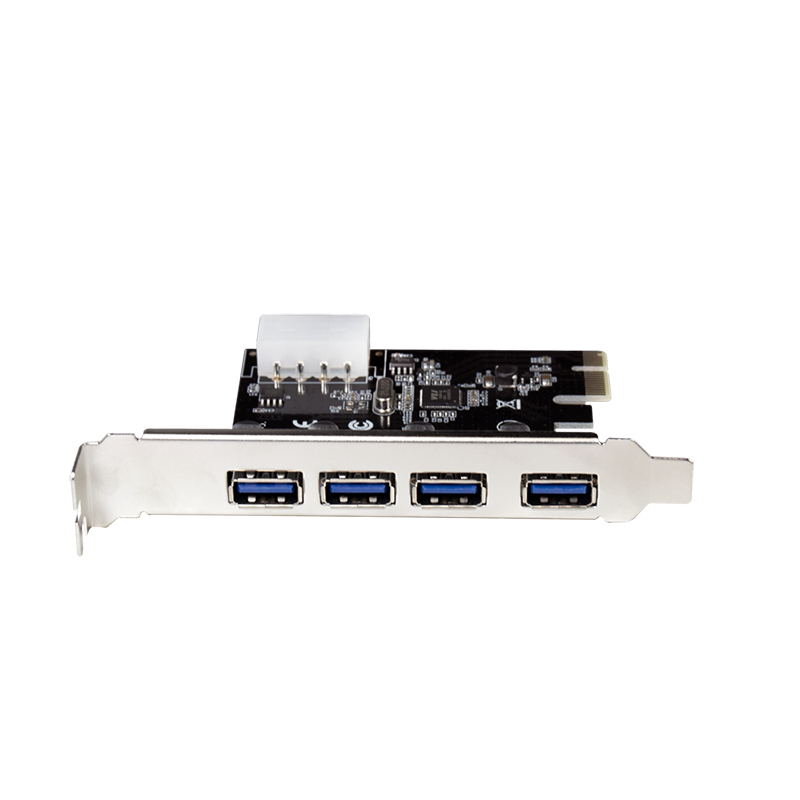

Expansion card LogiLink for 4 additional USB 3.0 ports. The interface is installed in the PCI Express port of your computer with Plug and Play support. It supports USB 3.0 transfer rates of up to 5 Gbps and an electricity supply of up to 900 mA per port. Backwards-compatible USB 2.0 or USB 1.1 devices are operated.
- PCI Express card, USB 3.0.
- Chipset: VIA VL805.
- 4x USB 3.0 (Type A) female.
- Backward compatible with USB 2.0/1.1.
- Specification according to USB 3.0.
- Max. Transfer rate: 5 GBit/s.
- USB Legacy function.
- Internal power supply via 5.25".
- Maximum of 900 mA per USB 3.0 port.
- Supports Windows XP/Vista/7/8/8.1.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Host interface | PCIe |
| Technical details | |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Chipset | VIA VL805 |
| Purpose | PC |
| Bandwidth | 5 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Chipset | VIA VL805 |
| Purpose | PC |
| Bandwidth | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Hot-Plug support | Yes |
| Purpose | PC |
| Internal | Yes |
| Features | |
| Plug and Play | Yes |
| Chipset | VIA VL805 |
| Bandwidth | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| System requirements | |
| Windows operating systems supported | Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home |
| Packaging data | |
| Package width | 172 mm |
| Package depth | 167 mm |
| Package height | 60 mm |
| Package weight | 140 g |
| User guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Package width | 172 mm |
| Package depth | 167 mm |
| Package height | 60 mm |
| Package weight | 140 g |
| Packaging content | |
| User guide | Yes |
| Other features | |
| Chipset | VIA VL805 |
