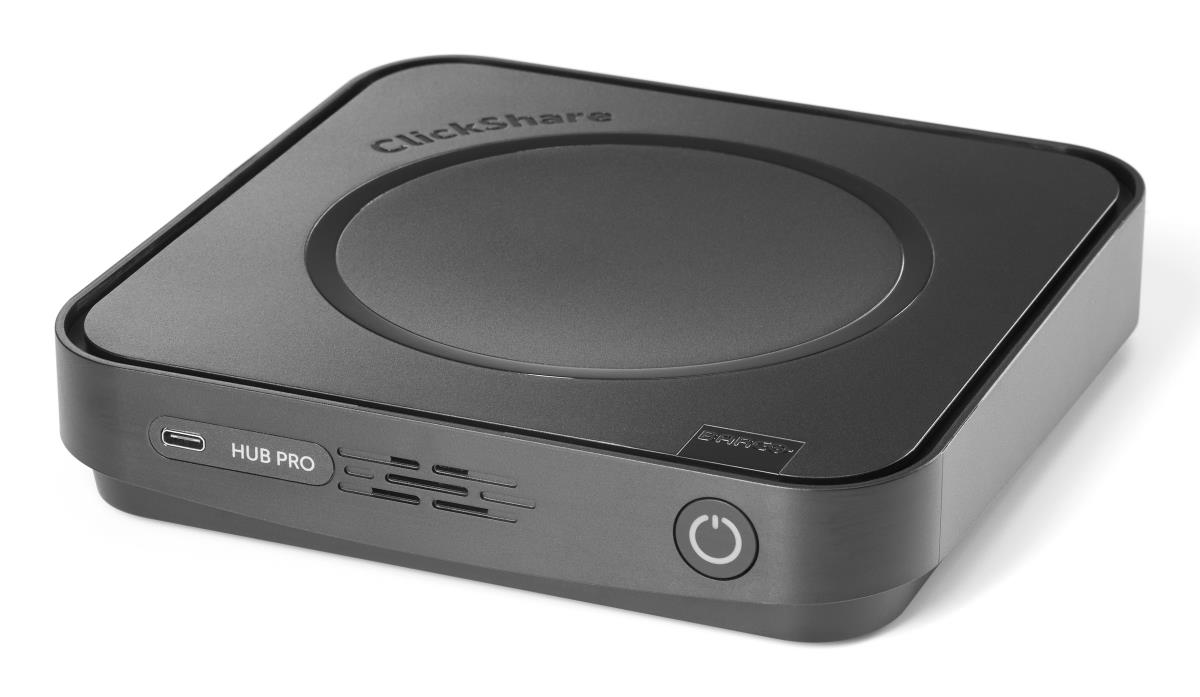

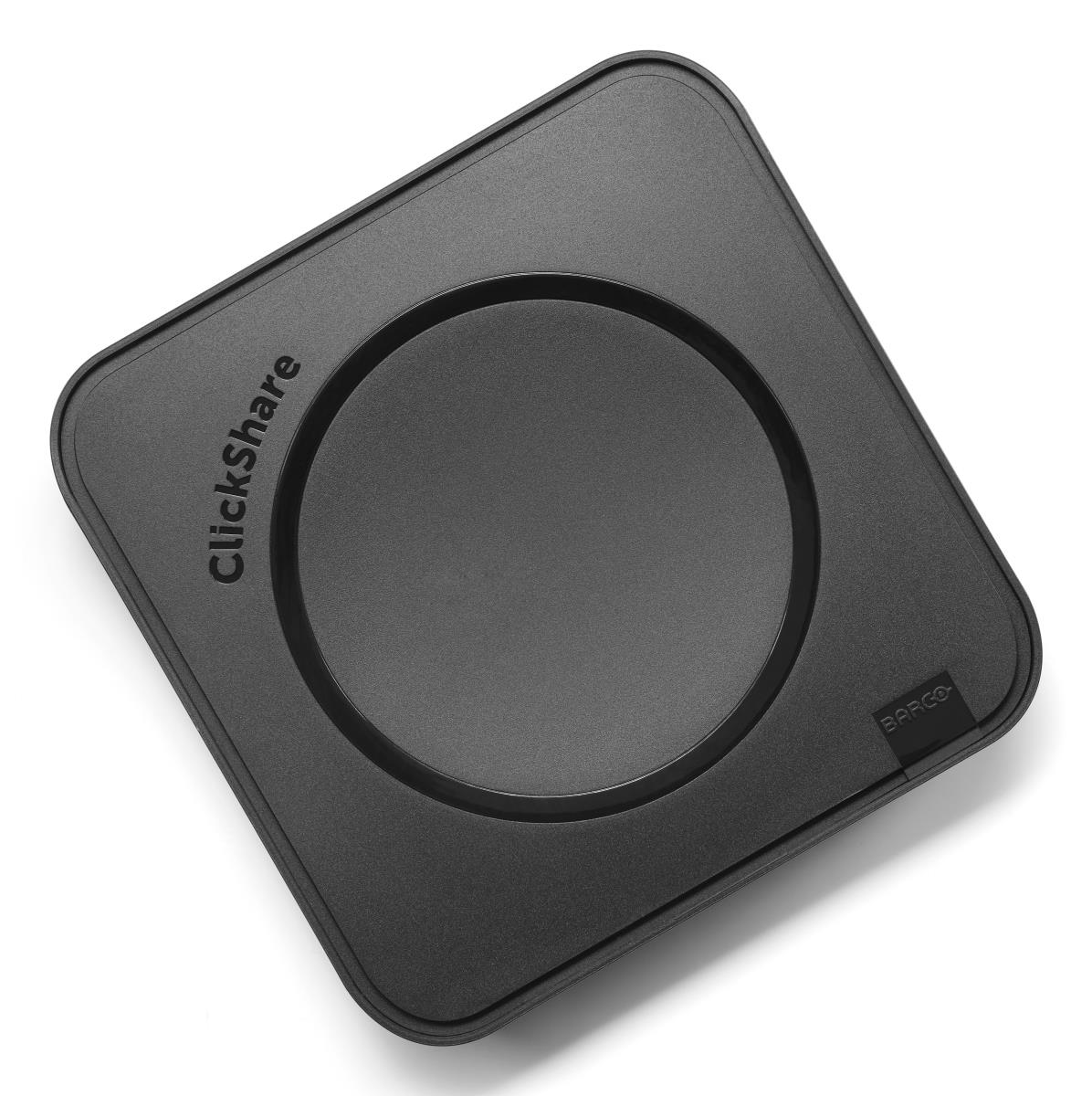

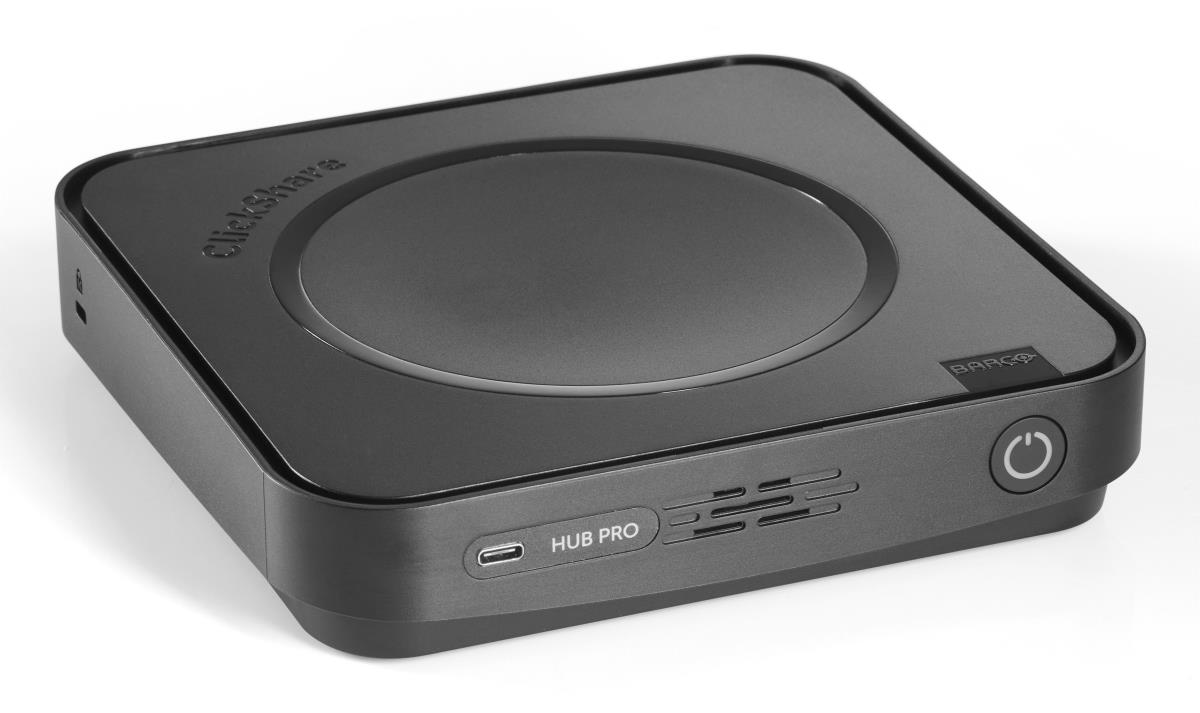

ClickShare Hub Pro Full Room System SetUp Kit 180W
Introduction

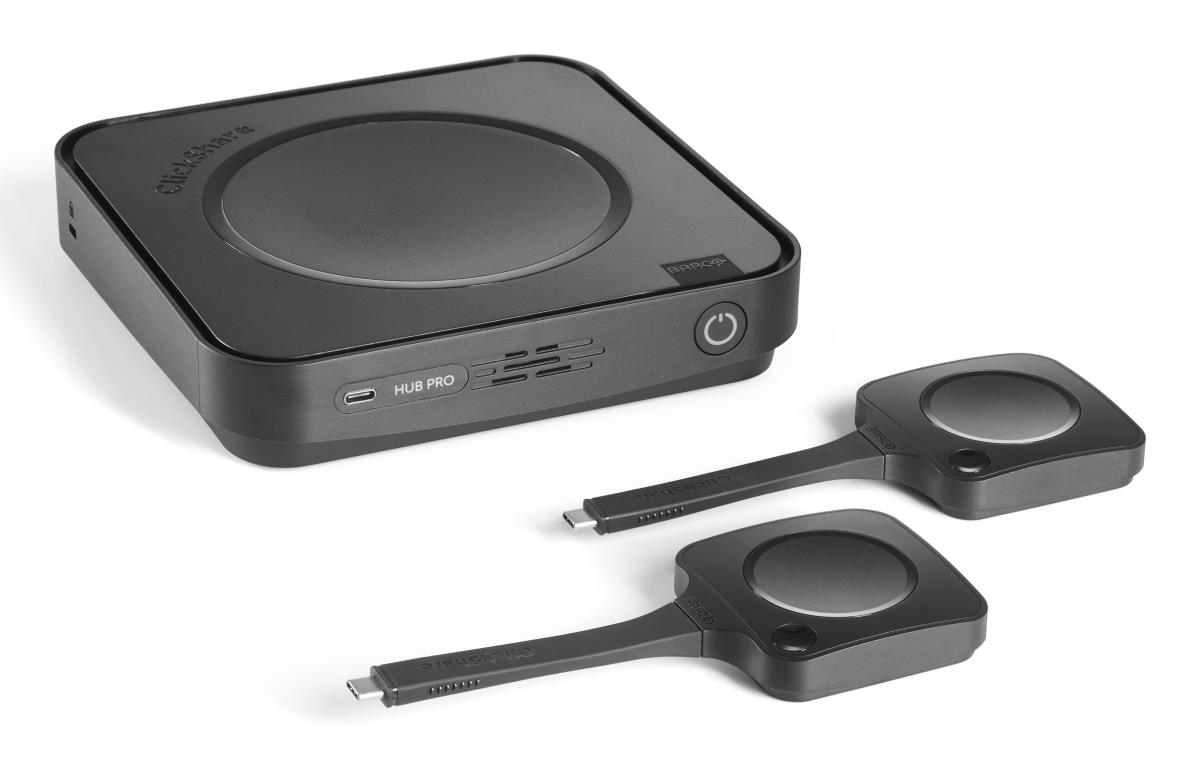

ClickShare Hub Pro is a premium modular, wireless video conferencing system for enhanced hybrid meetings. Featuring two next-gen ClickShare Buttons (with Wi-Fi 6E and USB-C DisplayPort™), it ensures meeting participants enjoy secure, 4K wireless content sharing. With dual display support, it guarantees highly visual and engaging meetings.
For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types, enterprise-grade security and compliance.

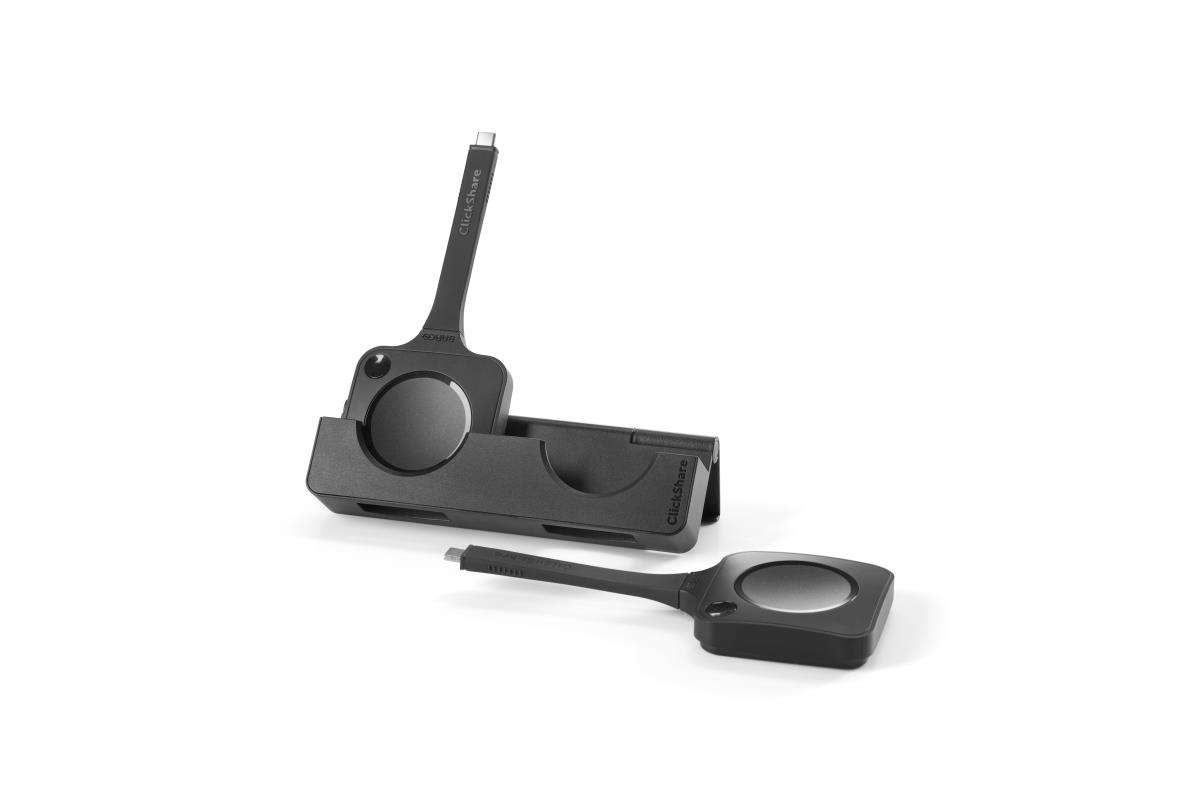

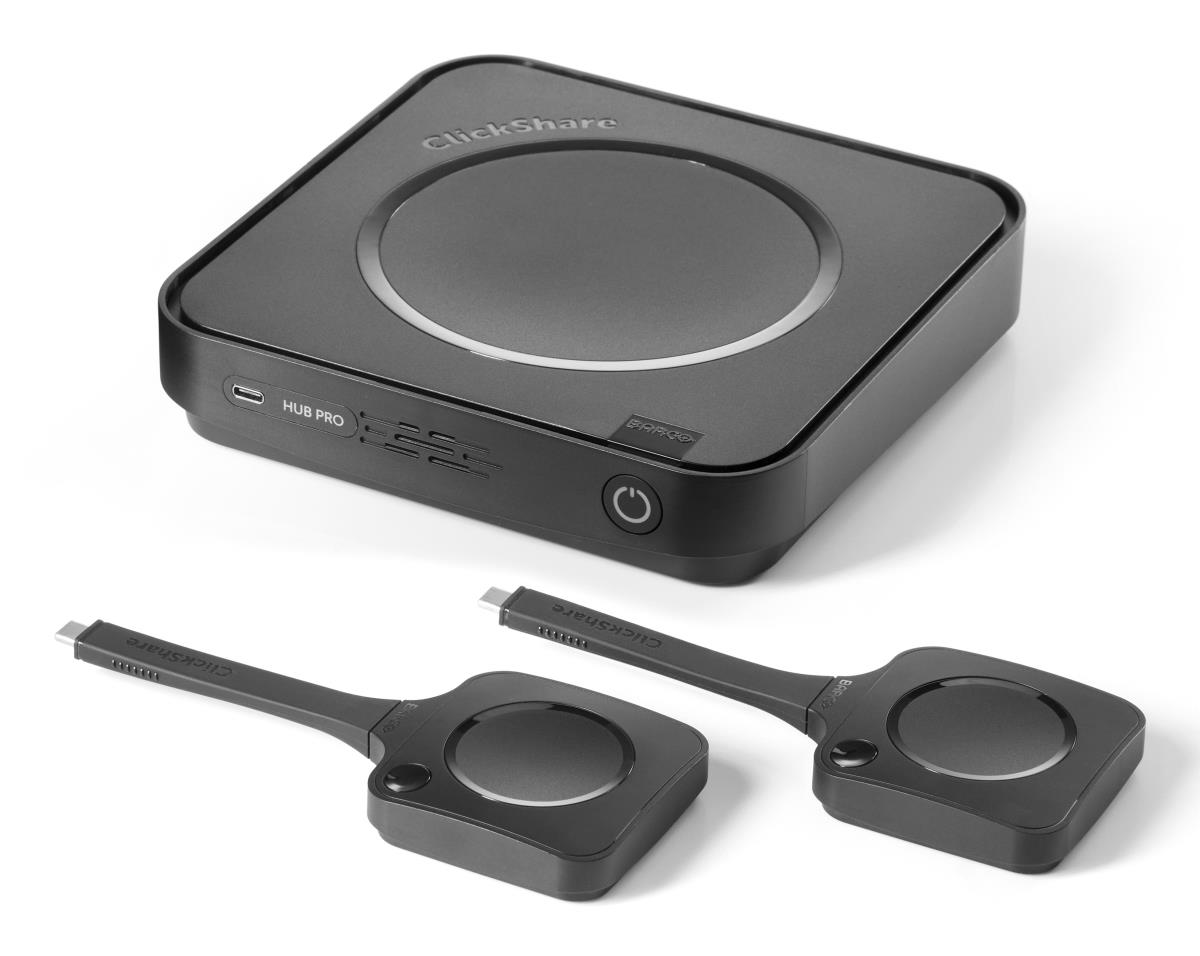

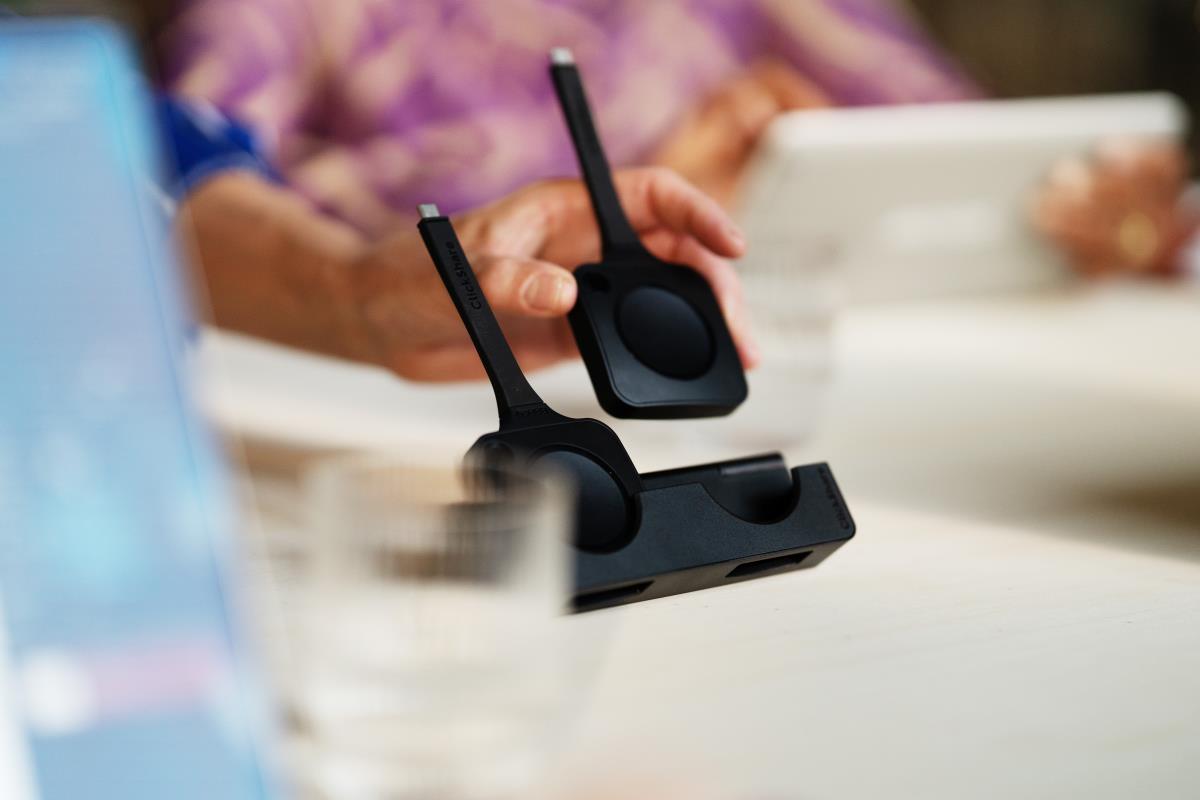

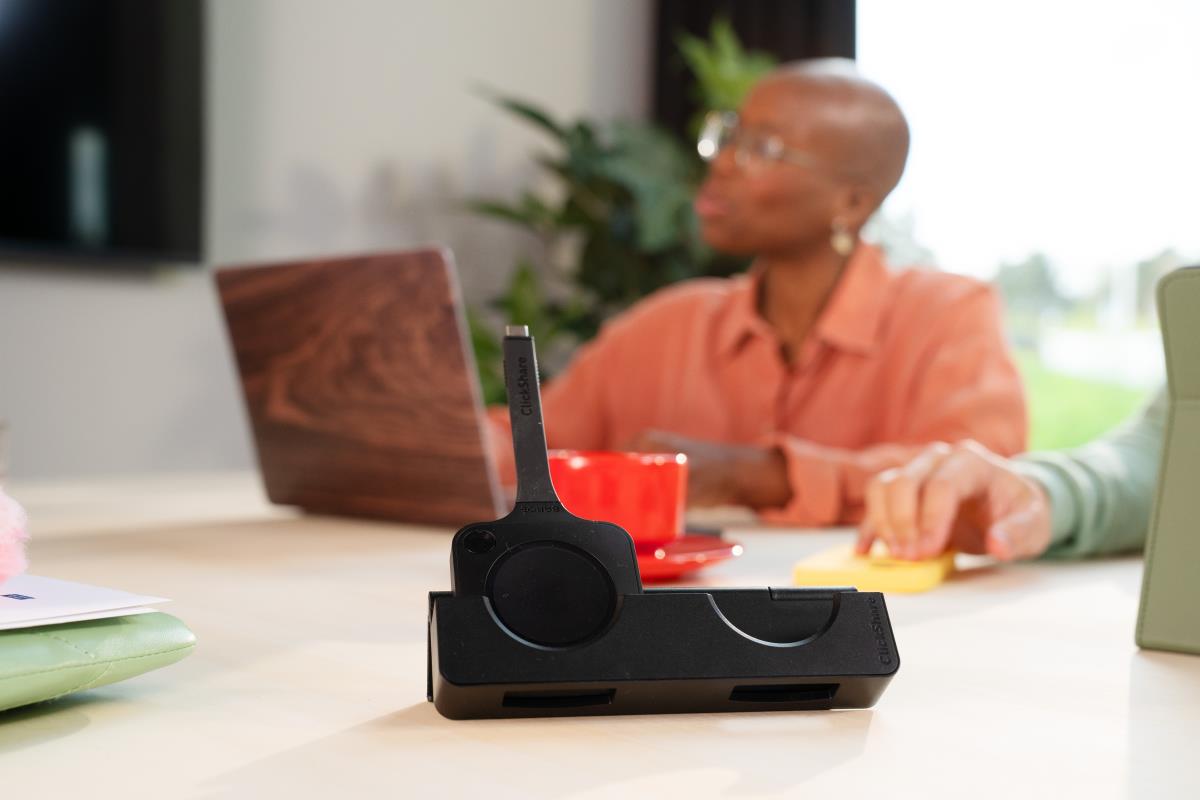

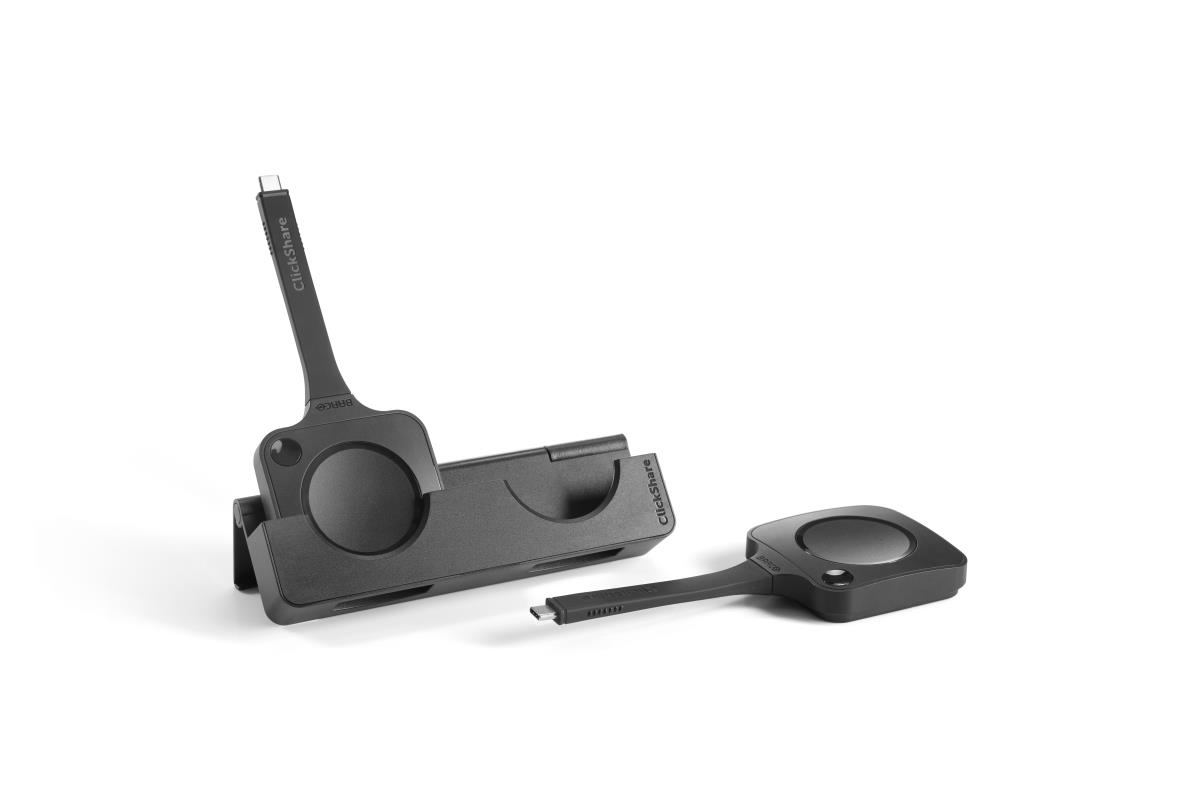

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.
Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.
For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
- Works seamlessly across all major OS in high-security environments
- Built-in security and user control
Specifications
| Performance | |
|---|---|
| Product type | Video conferencing service management system |
| Product colour | Black |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Noise level | 25 dB |
| Technical details | |
| Product type | Video conferencing service management system |
| Product colour | Black |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Noise level | 25 dB |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Video | |
| HD type | 5K Ultra HD |
| Maximum video resolution | 5120 x 2160 pixels |

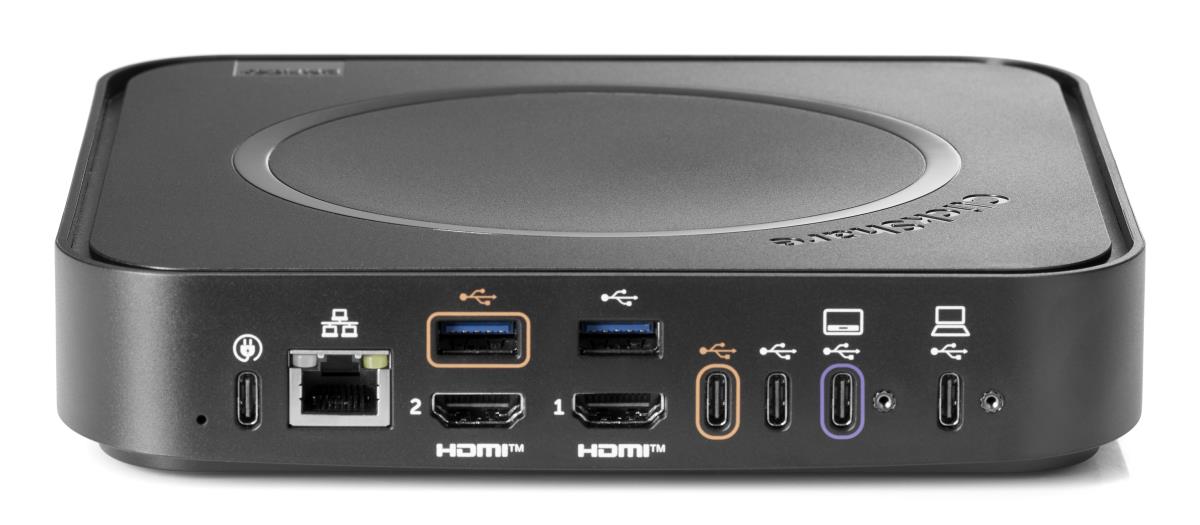

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI output ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| USB 2.0 Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Buttons | |
| Presentation button included | Yes |
| Holder included | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Networking standards | IEEE 802.15.1 |

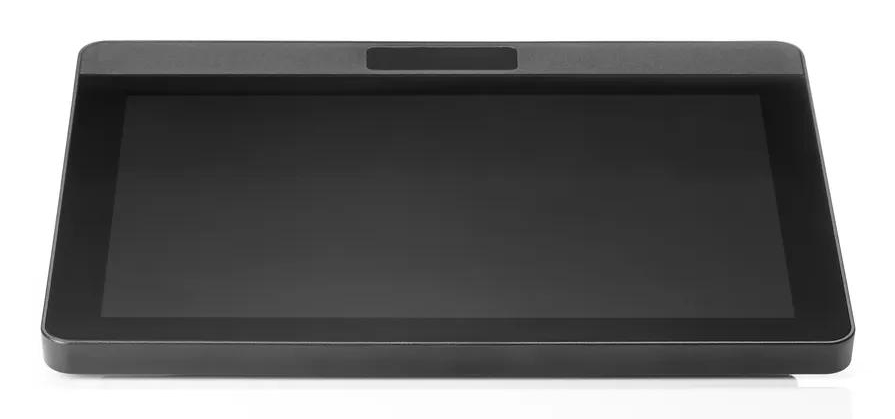

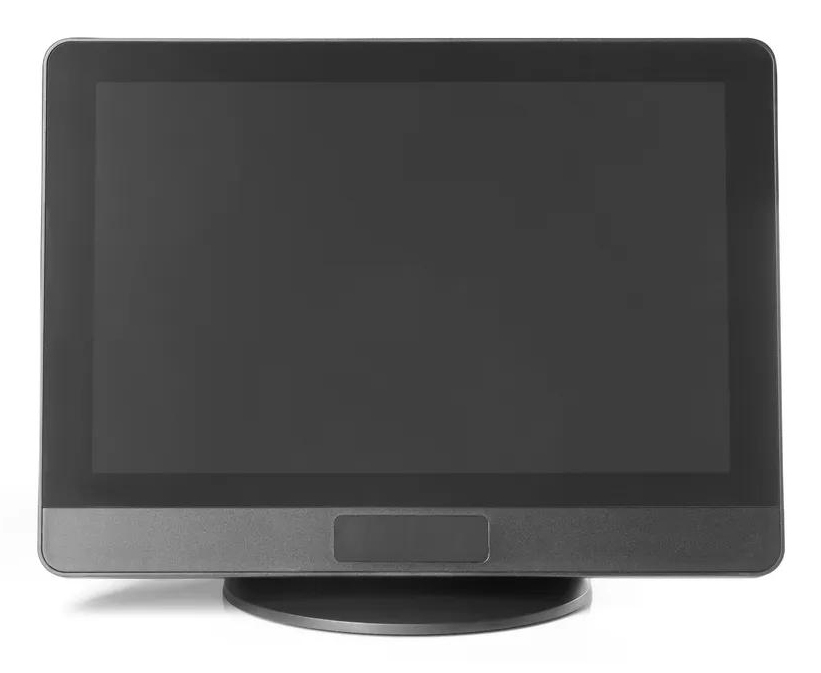

| Display | |
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, vertical | 80° |
| Viewing angle, horizontal | 80° |
| Display brightness | 300 cd/m² |
| Features | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Maximum operating distance | 30 m |
| Logistics data | |
| Country of origin | China |
| Computer system | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |

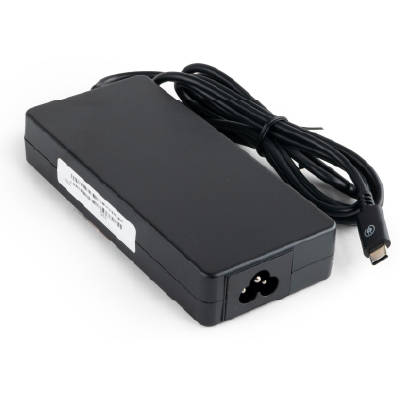

| Power | |
| Power consumption (typical) | 160 W |
| Power source type | USB |
| USB Power Delivery up to | 180 W |
| USB Power Delivery (USB PD) | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 37 mm |
| Weight | 720 g |
| Receiver dimensions (WxDxH) | 63 x 161.3 x 16 mm |
| Monitor dimensions (WxDxH) | 187.9 x 76.9 x 254.5 mm |
| Monitor weight | 820 g |
| Packaging content | |
| Camera included | No |

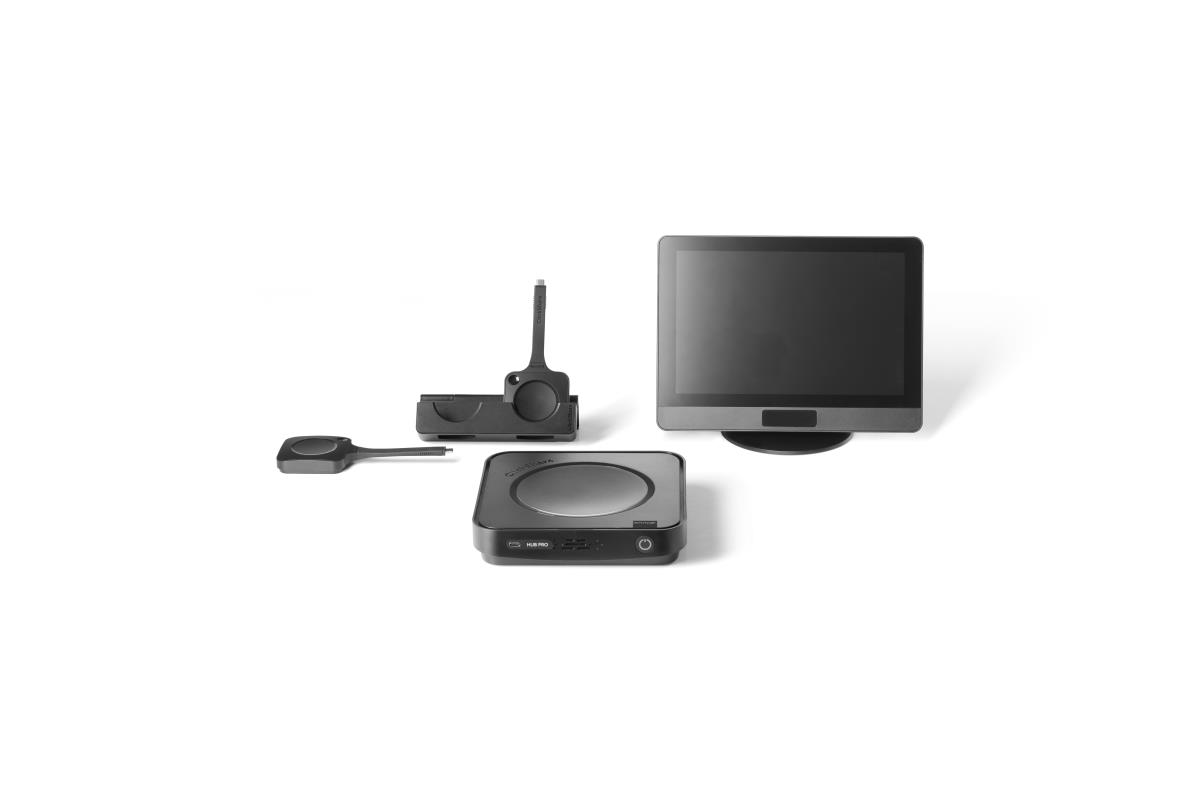

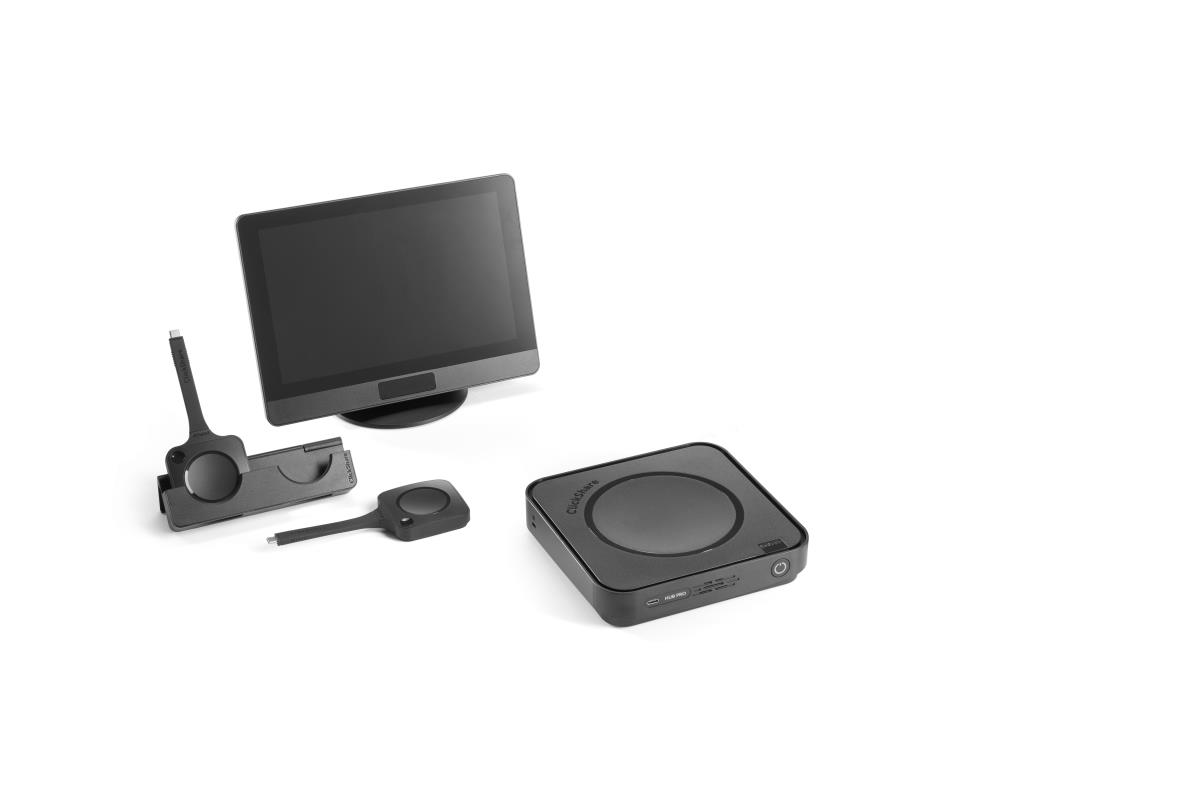

| Packaging content | ClickShare Hub Pro Base Unit, 2 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide, ClickShare Control Panel, ClickShare 10M 20W USB-C AOC cable, L-Shape mounting plate, Round base, Screw pack, Safety manual, USB-C cable lock kit |
