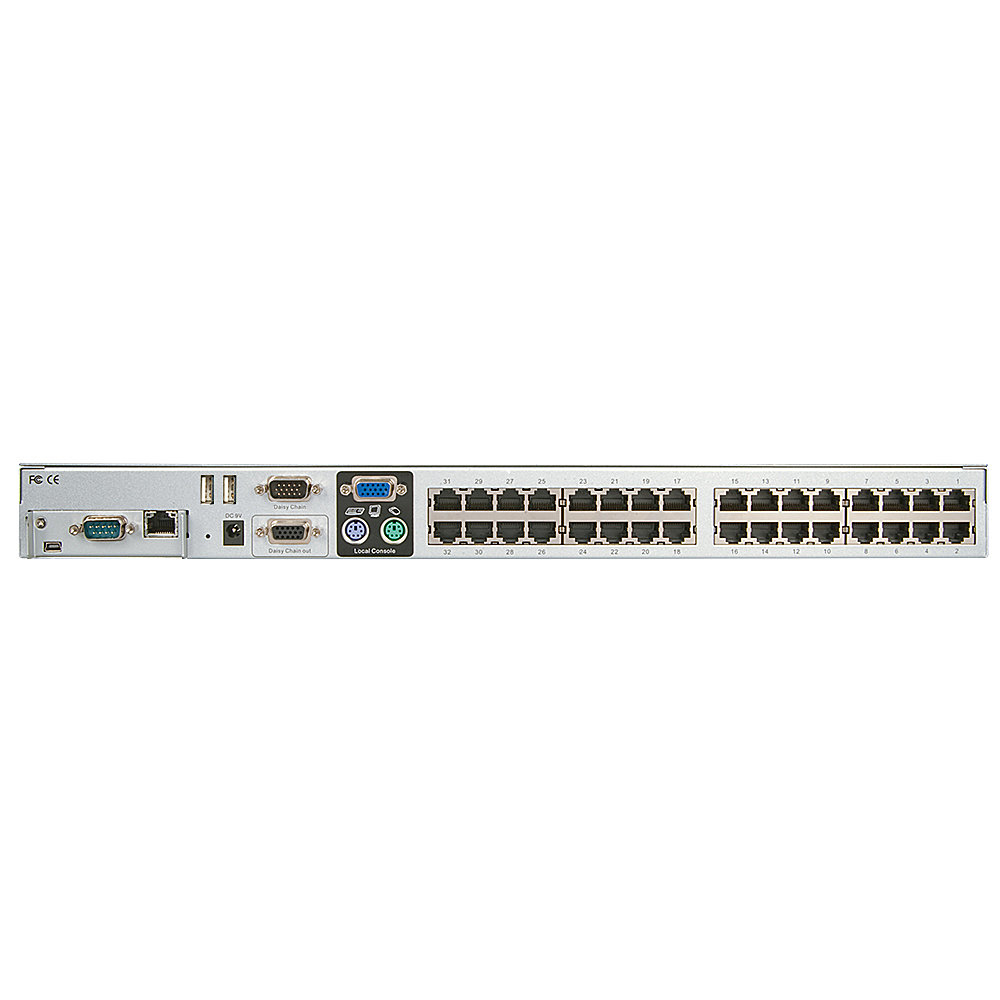

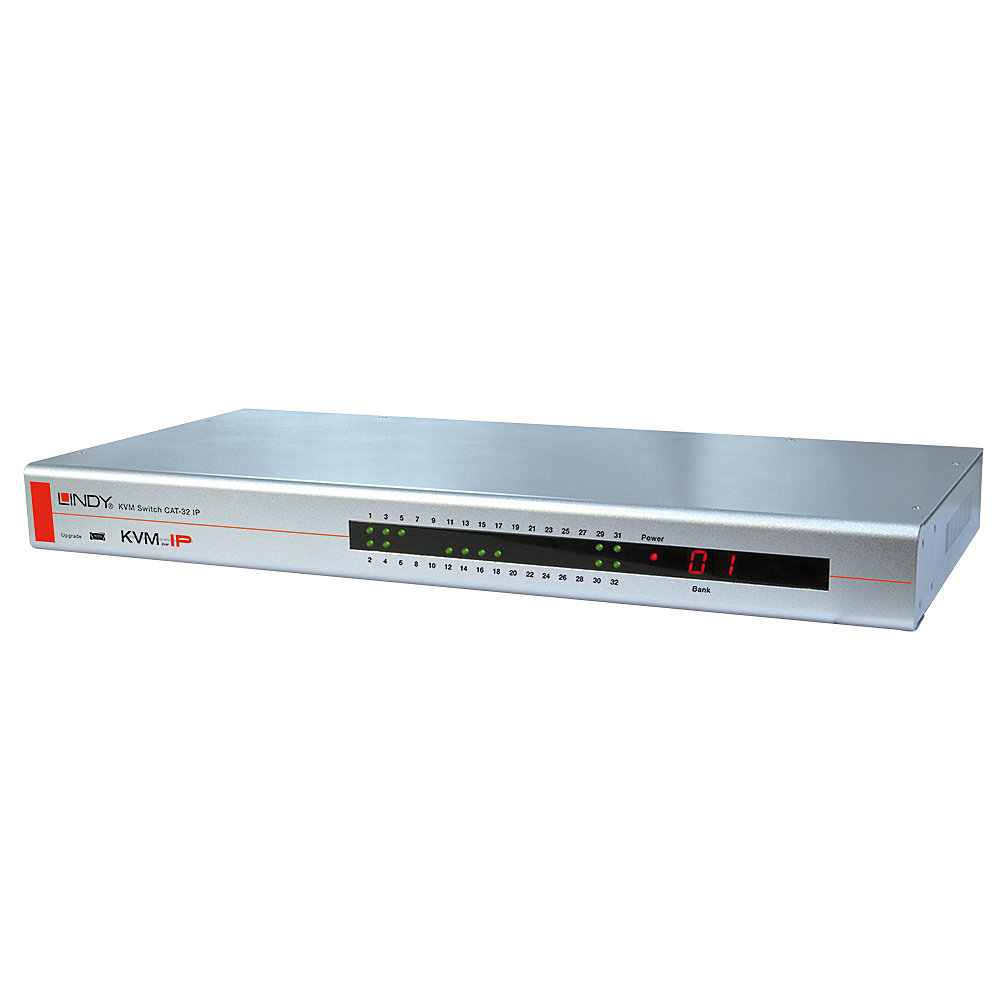

EU Product - KVM Switch CAT-32 IP PS/2 & USB Konsole
Introduction
The KVM Switch CAT-32 allows administrators to access and control up to 32 computers using a single KVM console connected to one compact, high density control centre.
The switch occupies only a single 1U space in a 19andrdquo; rack and makes use of CAT5e/6 structured cabling to provide the long distance connections to the computers using USB+VGA (No.39634) or PS/2+VGA (No.39633) connection dongles.
It provides BIOS-level access to up to 32 multi platform computers with security features with password access, auto log out, SSL security. All the functions are accessible through an On-screen display for ease of use.
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 32 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| Cable length | 100 m |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 104 s |
| Maximum analog resolution | 1920 x 1200 pixels |
| Technical details | |
| Product colour | Silver |
| Scan interval | 104 s |
| Design | |
| Product colour | Silver |
| Cable length | 100 m |
| Power | |
| External power adapter | Yes |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Connectivity technology | Wired |
| Ports quantity | 32 |
| Dimensions (WxDxH) | 440 x 210 x 44 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
