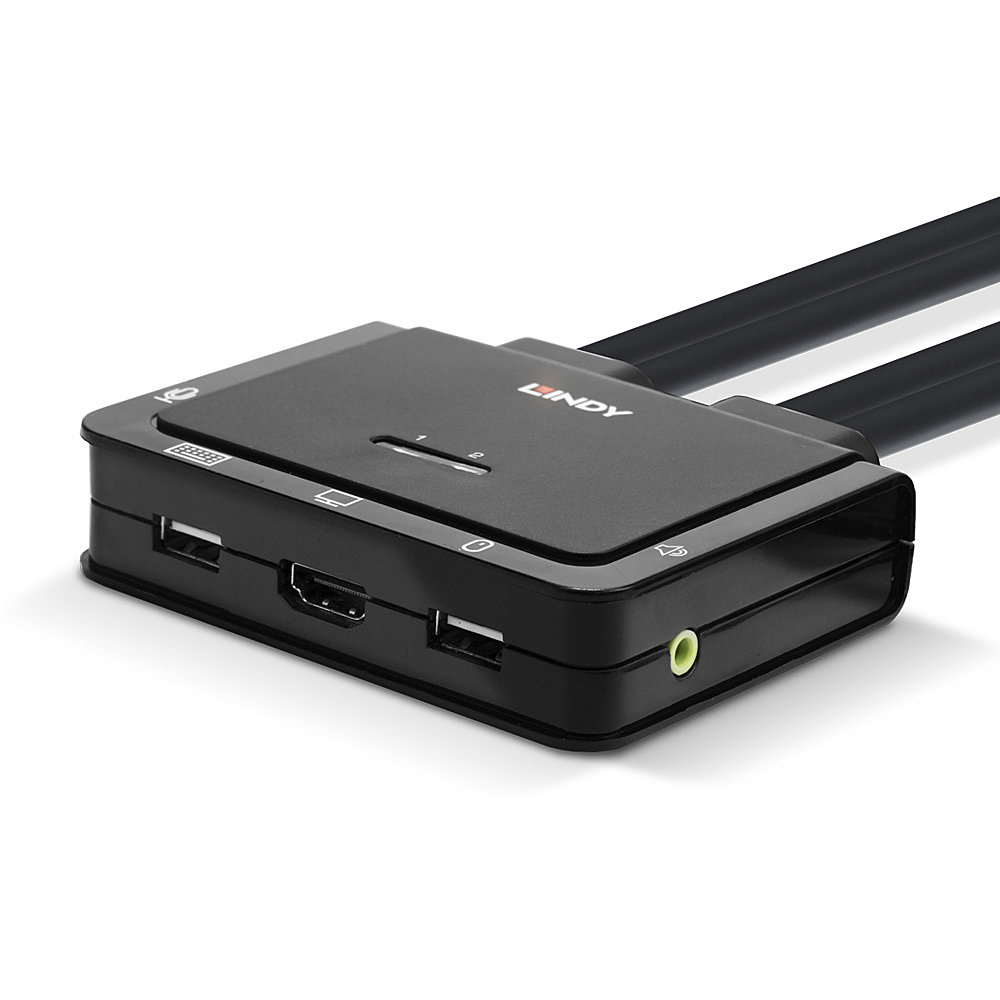

EU Product - 2 Port HDMI 18G, USB Type C Cable KVM Switch
Introduction
The Lindy 2 Port HDMI 18G, USB Type C, USB 2.0 and Audio KVM Switch is a compact solution for providing access and control over a HDMI equipped PC and Type C laptop or Desktop OS tablets from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables and to save time during installation.
Support for resolutions up to 3840x2160@60Hz ensures high image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The integrated USB Type C cable allows for control of a variety of laptops and tablets alongside a PC, great for maximising workspaces in universities or residential offices. The audio output port on the main unit also allows users to connect headphones or speakers to add immersive 2-channel audio and a microphone, while additional USB peripherals can be integrated with a USB hub.
The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first-time users.
Specifications
| Ports & interfaces | |
|---|---|
| Console ports | USB A |
| Number of microphone inputs | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Cable length | 1.2 m |
| HDCP | Yes |
| Performance | |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Activity |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Cable length | 1.2 m |
| Rack mounting | No |
| LED indicators | Activity |
| Certification | CE, FCC, REACH |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 25 mm |
| Depth | 97 mm |
| Height | 82.2 mm |
| Weight | 433 g |
| Package width | 160 mm |
| Package depth | 60 mm |
| Package height | 250 mm |
| Package weight | 514 g |
| Packaging data | |
| Package type | Box |
| Package width | 160 mm |
| Package depth | 60 mm |
| Package height | 250 mm |
| Package weight | 514 g |
| Packaging content | |
| Manual | Yes |
| Package type | Box |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
