Introduction

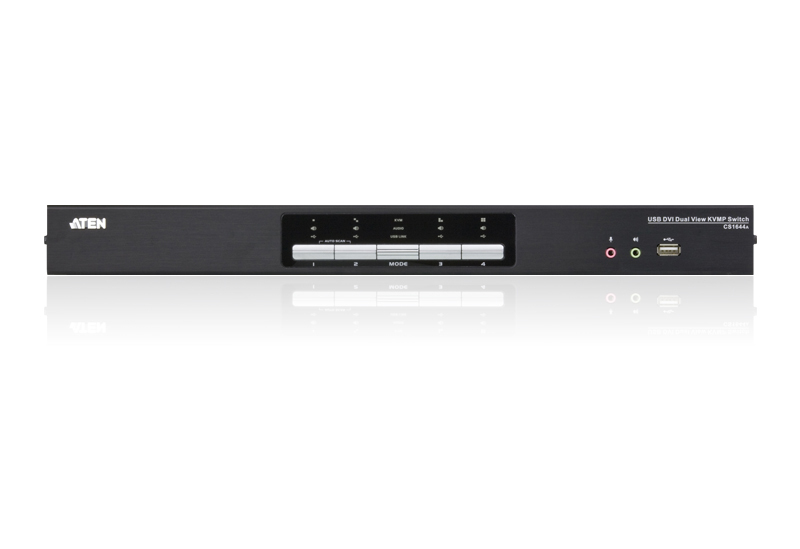

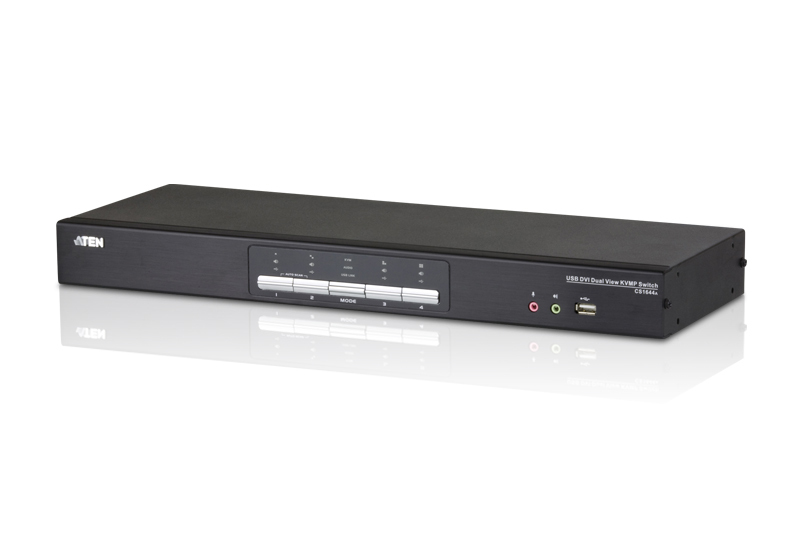

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |

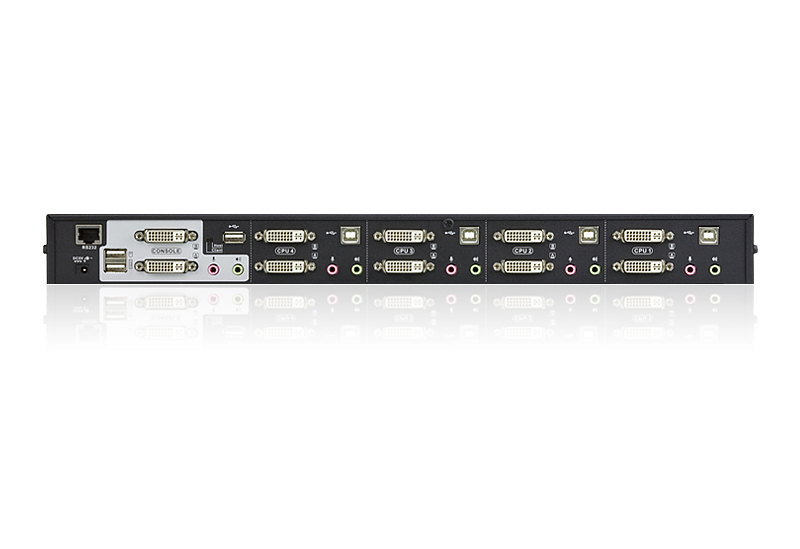

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB connector type | USB Type-A |
| Number of microphone inputs | 4 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DVI-I ports quantity | 10 |
| DC-in jack | Yes |
| HDCP | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| HDCP | Yes |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2560 x 1600 pixels |
| Scan interval | 1,99 s |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Scan interval | 1,99 s |
| Push button | Yes |
| Hot keys | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Rack capacity | 1U |
| Housing material | Metal, Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 12.19 W |
| Input voltage | 5.3 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | FreeBSD |
| Video | |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2560 x 1600 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 159.8 mm |
| Height | 44 mm |
| Weight | 2.32 kg |
| Packaging content | |
| Cables included | KVM |
| Manual | Yes |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
