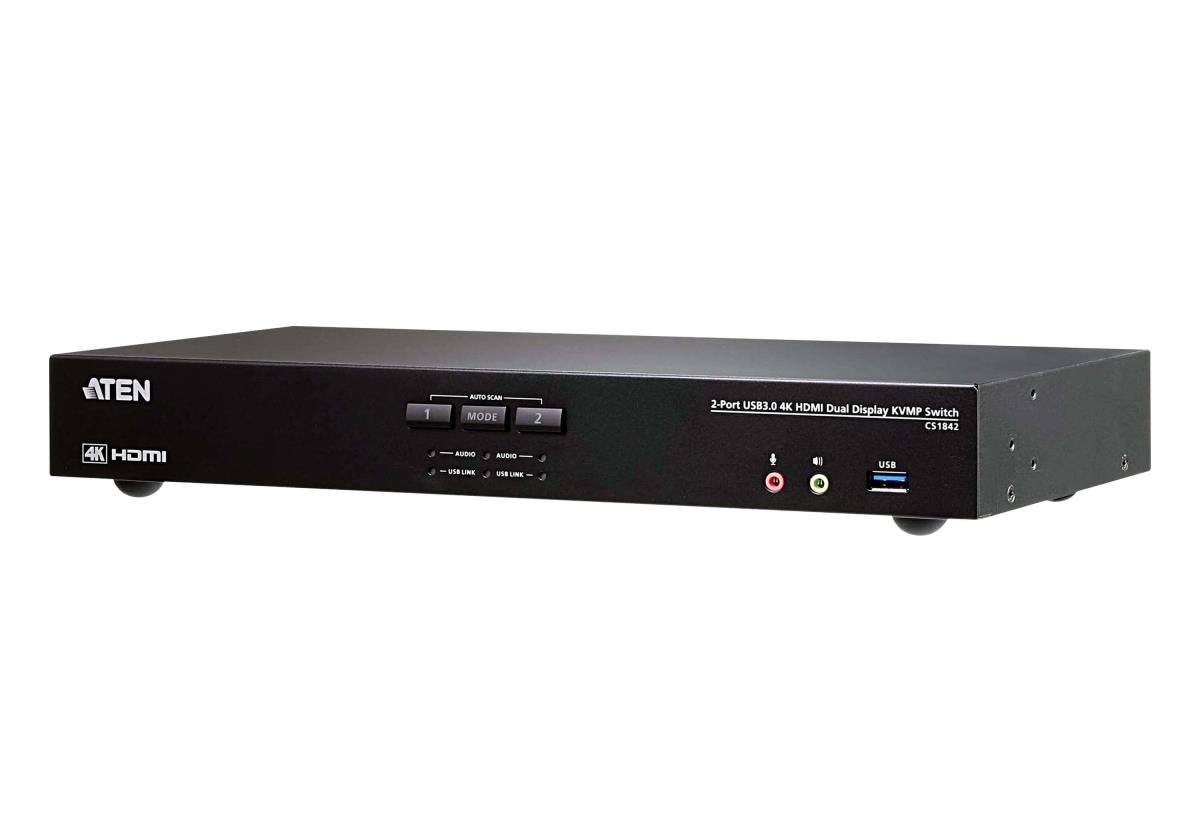

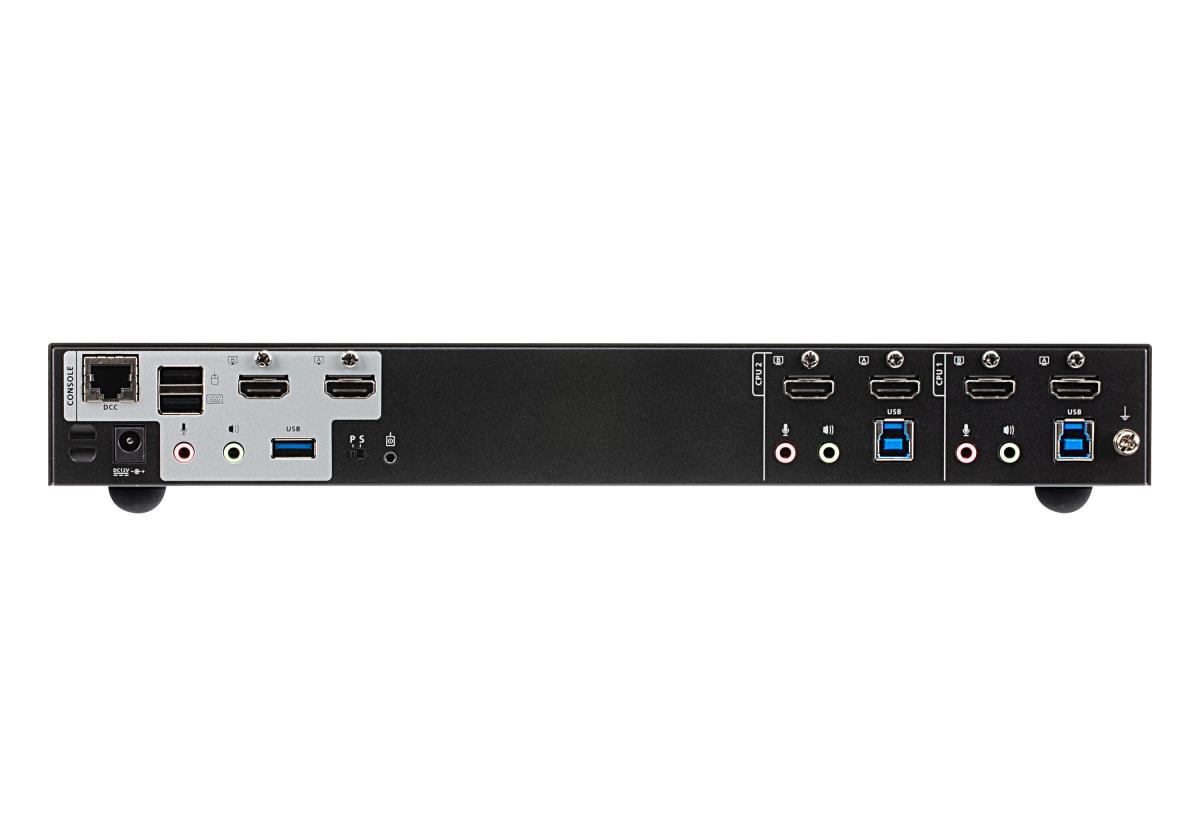

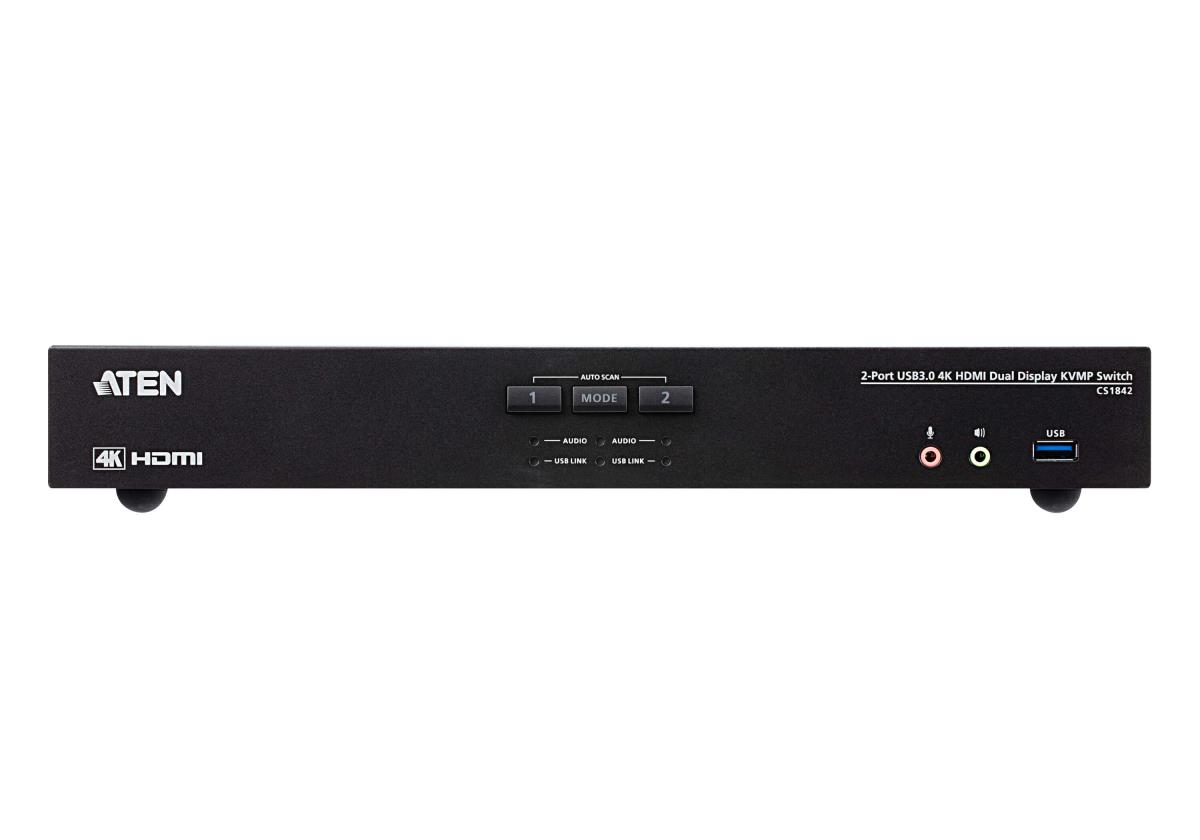

2 PORT DUAL HDMI 4K60 KVMP
Introduction
The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology – Video DynaSync™, the CS1842 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
For requirements of more displays to monitor, users can daisy-chain two CS1842 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1842 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.
Specifications
| Ports & interfaces | |
|---|---|
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| HDMI ports quantity | 4 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Performance | |
| Daisy chain | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,99 s |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Scan interval | 1,99 s |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Rack capacity | 1U |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 3.17 W |
| Input voltage | 12 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 335 mm |
| Depth | 160.5 mm |
| Height | 44 mm |
| Weight | 1.6 kg |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
