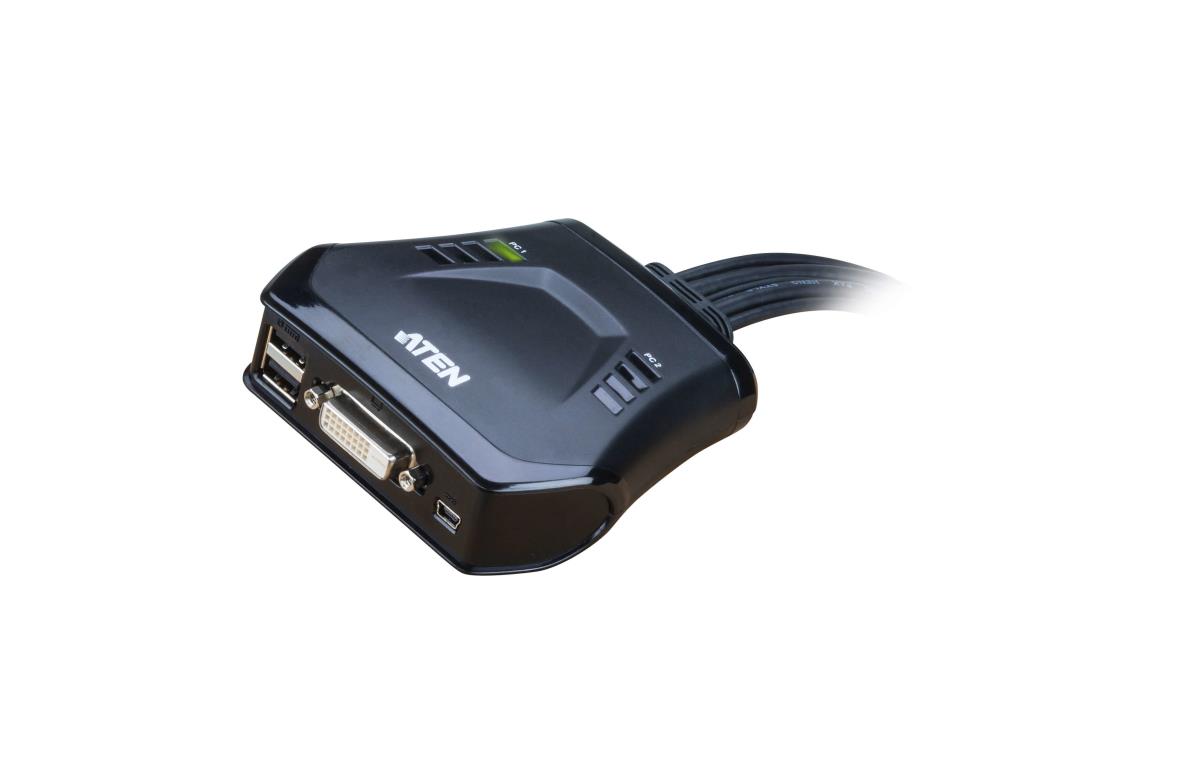

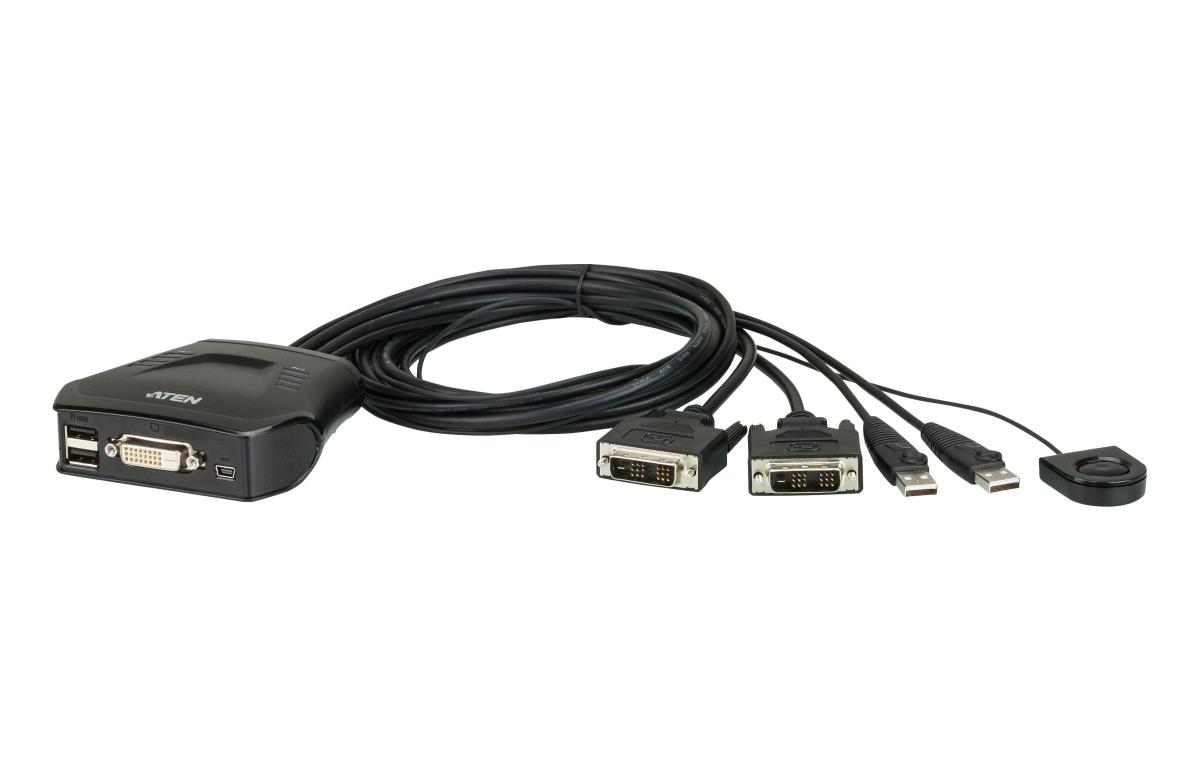

EU Product - KVM Switch CS22D 2 Port USB DVI
Introduction
The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 3 |
| Console ports | Mini-USB B, DVI-D, USB A |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| Cable length | 1.2 m |
| Performance | |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Design | |
| Remote switch cable length | 1.8 m |
| Product colour | Black |
| Cable length | 1.2 m |
| Rack mounting | No |
| LED indicators | Yes |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 0.93 W |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Video | |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 96.6 mm |
| Depth | 99.5 mm |
| Height | 30.1 mm |
| Weight | 340 g |
| Packaging content | |
| Quick installation guide | Yes |
