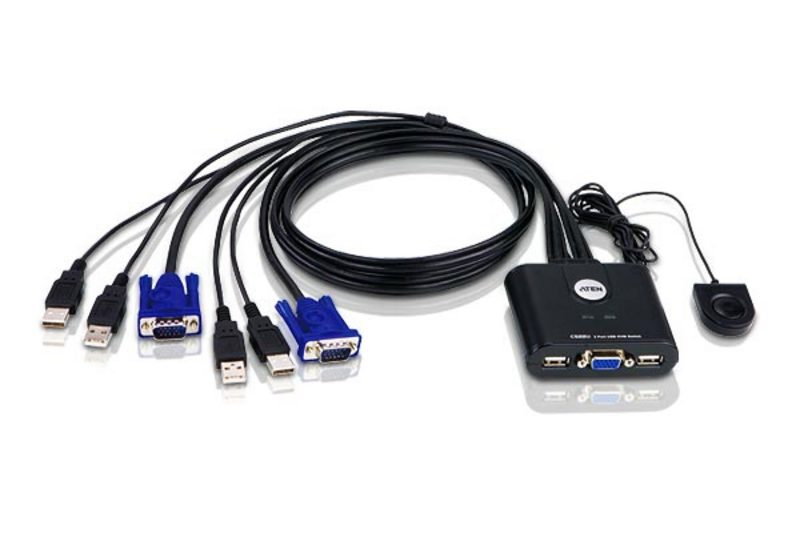

2 PORT VGA USB KVM SWITCH
Introduction
The compact CS22U allows quick switching between 2 VGA-interfaced PCs via one KVM console and flexible media sharing via the console USB ports, which helps to expand desktop workspace while keeping it tidy and organized for improved productivity.
Smooth Cross-Platform Integration
The CS22U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
Plug in. Power on
The CS22U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Specifications
| Ports & interfaces | |
|---|---|
| Console ports | USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 4 |
| Cable length | 0.9 m |
| Performance | |
| DDC2B support | Yes |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| USB hub | Yes |
| Design | |
| Remote switch cable length | 1.8 m |
| Product colour | Black |
| Cable length | 0.9 m |
| Rack mounting | No |
| LED indicators | Yes |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 0.14 W |
| Input voltage | 5 V |
| Video | |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 82.4 mm |
| Depth | 70.1 mm |
| Height | 24.6 mm |
| Weight | 300 g |
| Packaging content | |
| Quick installation guide | Yes |
