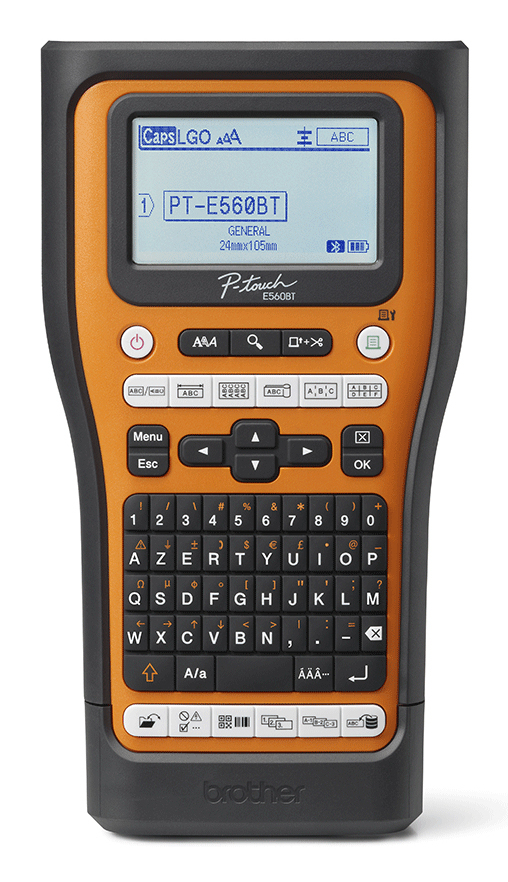

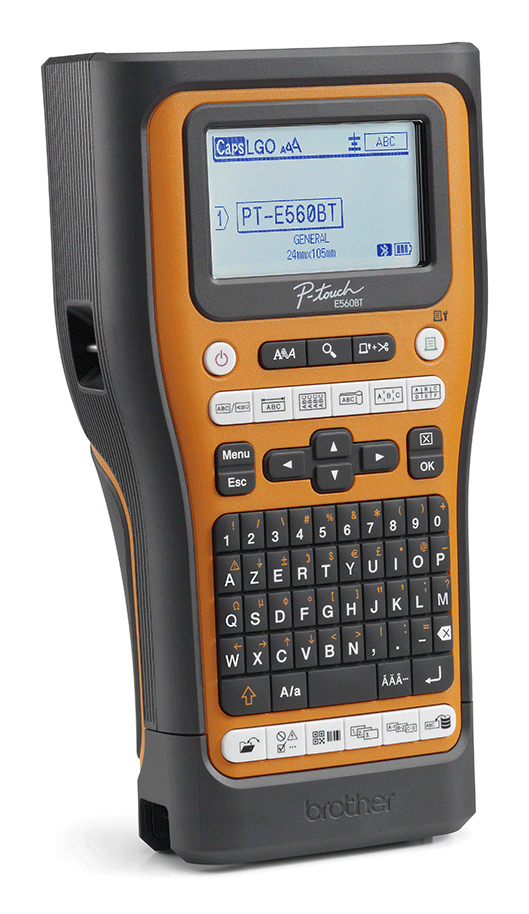

EU Product - P-touch E560BTVP
Introduction
Brother PT-E560BTVP. Print technology: Thermal transfer, Maximum resolution: 180 x 180 DPI, Print speed: 20 mm/sec. Connectivity technology: Wired & Wireless, Bluetooth, Bluetooth version: 5.0, USB port. Keyboard layout: QWERTZ. Tape type: HSE/TZe. Product colour: Black, Orange
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 180 x 180 DPI |
| Maximum printing width | 2.4 cm |
| Maximum print height | 1.8 cm |
| Printing | |
| Colour | No |
| Print speed | 20 mm/sec |
| Maximum resolution | 180 x 180 DPI |
| Maximum printing width | 2.4 cm |
| Maximum print height | 1.8 cm |
| Print technology | Thermal transfer |
| Number of printable dots | 128 dot |
| Display | |
| Backlight display | Yes |
| Display | LCD |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Paper handling | |
| Autocutter | Yes |
| Half-cutter | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16 |
| Tape type | HSE/TZe |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E |
| Number of fonts | 14 |
| Design | |
| Backlight display | Yes |
| Display | LCD |
| Product colour | Black, Orange |
| Keyboard layout | QWERTZ |
| Built-in display | Yes |
| Power | |
| Number of batteries supported | 1 |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Auto power off | Yes |
| Power source type | Battery |
| Technical details | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour | Black, Orange |
| Tape type | HSE/TZe |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E |
| Number of fonts | 14 |
| Keyboard layout | QWERTZ |
| Battery | |
| Number of batteries supported | 1 |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| System requirements | |
| Mobile operating systems supported | Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Weight & dimensions | |
| Package width | 126 mm |
| Package depth | 334.4 mm |
| Package height | 393 mm |
| Width | 132 mm |
| Depth | 244 mm |
| Height | 80 mm |
| Weight | 1.05 kg |
| Package weight | 3.49 kg |
| Packaging data | |
| Package width | 126 mm |
| Package depth | 334.4 mm |
| Package height | 393 mm |
| Package weight | 3.49 kg |

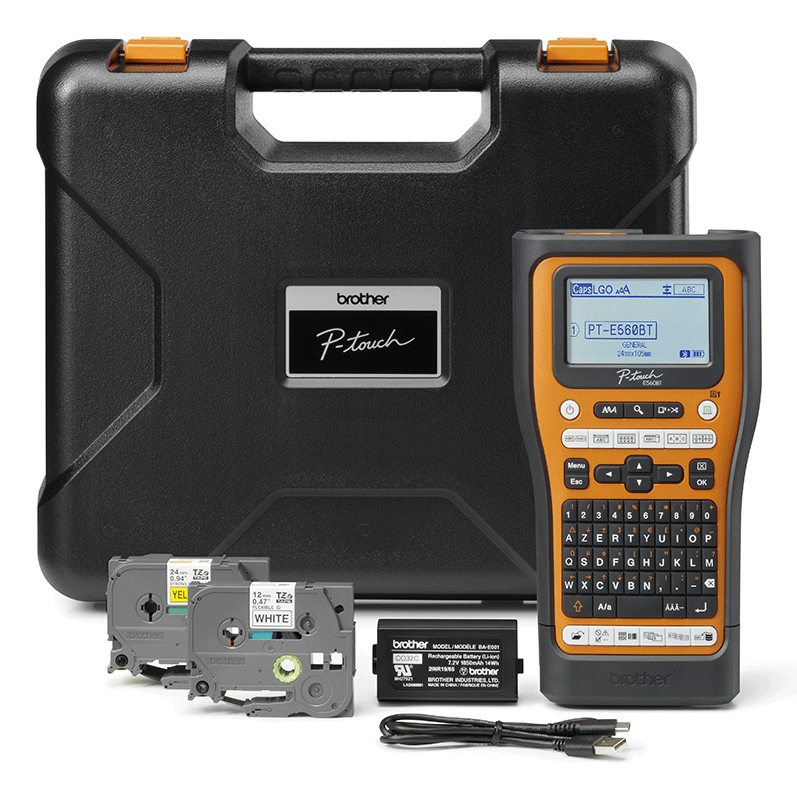

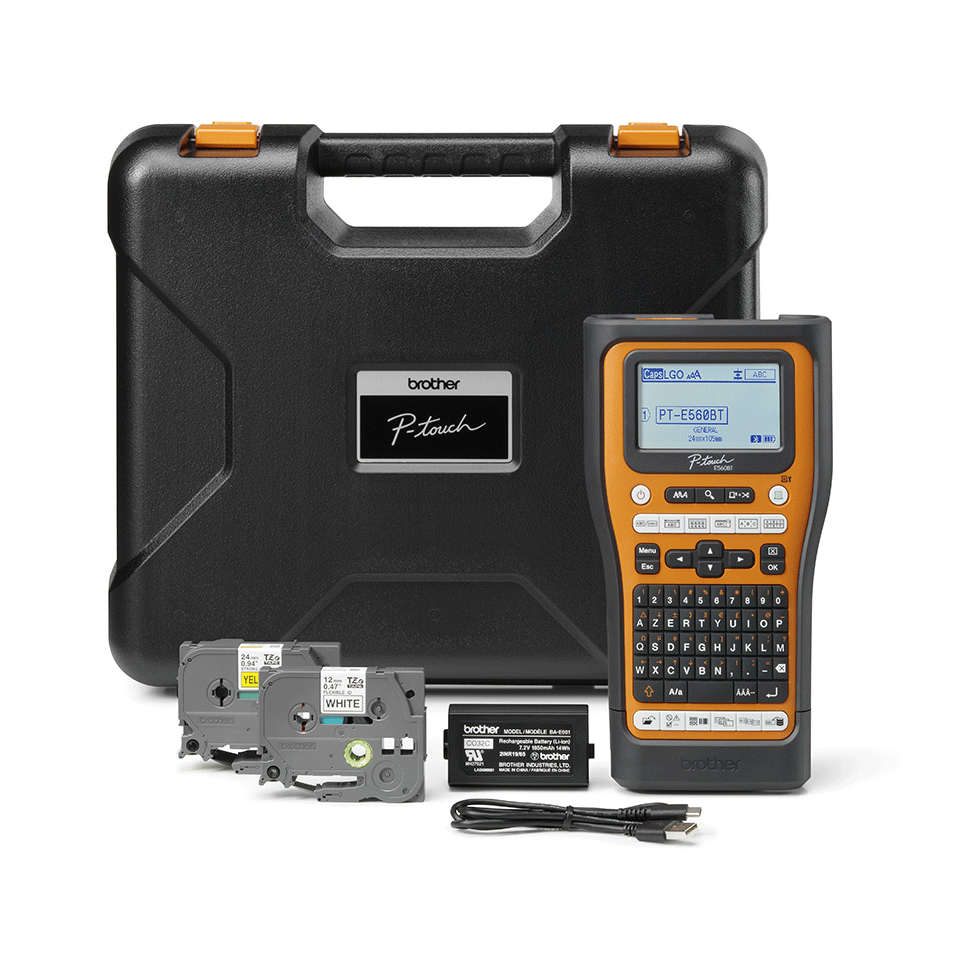

| Packaging content | |
| Cables included | USB |
| Batteries included | Yes |
