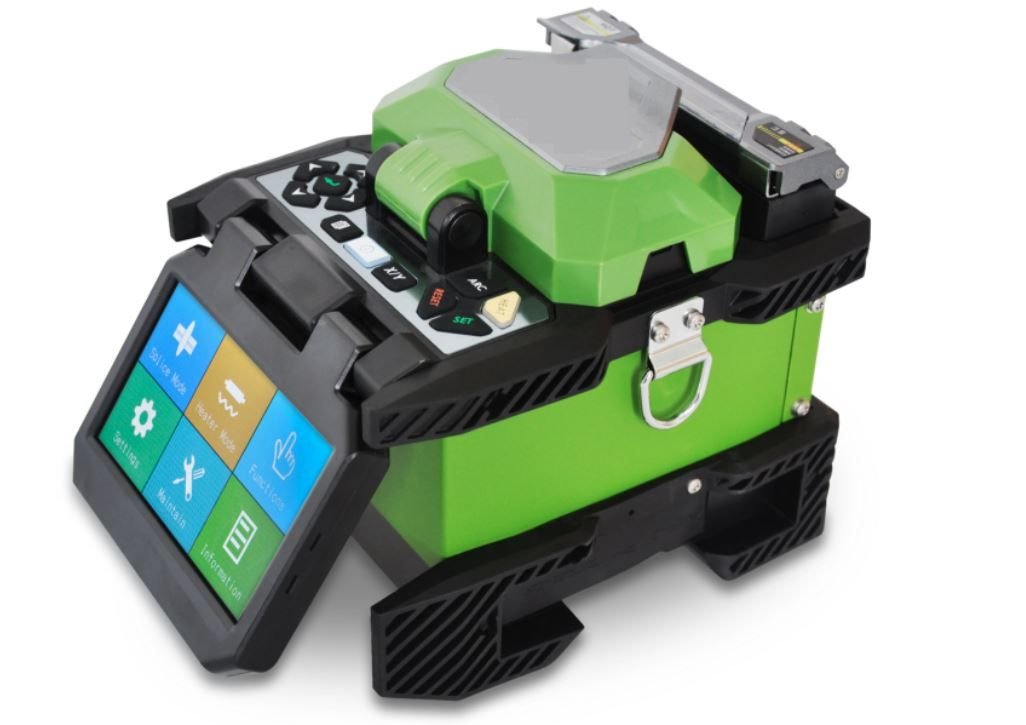

Optical Fiber Fusion Splicer
Introduction
Graphical interfaces and touch screen
uses entirely new GUI graphical interfaces and touch screen in design. Operators can set up the splicer
and get to know relevant information of it simply and directly by graphical interfaces.
Water-resistant and dust-resistant can meet IP52 requirements.
The all-in-one fixture meet fusion splicing demands of multiple fibers, jumpers and rubber-insulted wires with a
cladding diameter of 80~150µ m.
Small in size and light in weight, the splicer is easy to carry and can be lift by one hand.
A detection unit is embedded in the heater. The heating function will only be enabled when the thermal
shrinkage tube is put in the heater, to avoid misoperation.
Ceramic V-block with high precision brings you convenient and accurate placement of optical fibers and makes
cleanup easy.
Specifications
| Features | |
|---|---|
| Display type | LCD |
| Product colour | Black, Green |
| Splicing time | 7 s |
| Heating time | 18 s |
| Applicable fiber | Single Mode Fiber (SMF) |
| Cladding diameter (min) | 80 µm |
| Cladding diameter (max) | 150 µm |
| Power | |
| Rechargeable battery | Yes |
| Weight & dimensions | |
| Weight | 1.2 kg |
| Package weight | 1.5 kg |
| Packaging data | |
| Package weight | 1.5 kg |
