XB2796HSC-B1 27IN IPS LCD
Introduction
Compact, high-performance and built for modern professionals, the ProLite XB2796HSC-B1 is a 27” Full HD monitor ideal for home offices, hybrid work and content consumption. Its IPS panel offers vibrant colour reproduction and wide viewing angles, making it well-suited for presentations, web-based tasks, video calls and day-to-day business applications. A smooth 144Hz refresh rate and high 1500:1 contrast ratio ensure sharp visuals and fluid motion for everyday tasks and entertainment. The USB-C connection delivers up to 65W of power reducing desk clutter and simplifying setup. Flicker-free technology and a blue light reducer enhance visual comfort during extended use. Framed by ultra-slim bezels on all four sides, the XB2796HSC-B1 integrates seamlessly into multi-monitor setups. Its ergonomic stand offers height adjustment, tilt, swivel and pivot for a perfectly aligned workspace. Balanced and versatile, this monitor is designed to keep you productive and comfortable throughout the day.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| DDC/CI | Yes |
| Maximum refresh rate | 144 Hz |
| sRGB coverage (typical) | 96% |
| Display surface | Matt |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.311 x 0.311 mm |
| Horizontal scan range | 30 - 170 kHz |
| Vertical scan range | 48 - 145 Hz |
| Viewable size, horizontal | 59.8 cm |
| Viewable size, vertical | 33.6 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 3 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1500:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Display diagonal (metric) | 68.6 cm |
| Colour gamut standard | NTSC, sRGB |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Power consumption (off) | 0.3 W |
| Input current | 2 A |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14.8 kWh |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Frameless design | Yes |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 1 |
| USB Type-C downstream ports quantity | 1 |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| HDCP | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDMI | Yes |
| HDMI version | 1.4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-C upstream ports quantity | 1 |
| Number of downstream ports | 2 |
| Technical details | |
| Height (without stand) | 404.5 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, USB-C speed, USB charge, DDC/Ci control), Input select, audio settings (volume, mute audio), recall (recall all) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Power supply type | Internal |
| Weight (with stand) | 6 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt angle range | -5 - 23° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90° |
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Height (without stand) | 404.5 mm |
| Width (with stand) | 612 mm |
| Depth (with stand) | 224.5 mm |
| Height (with stand) | 549.5 mm |
| Weight (with stand) | 6 kg |
| Package width | 690 mm |
| Package depth | 140 mm |
| Package height | 465 mm |
| Package weight | 7.6 kg |
| Width | 612 mm |
| Weight | 6 kg |
| Depth | 224.5 mm |
| Packaging data | |
| Package width | 690 mm |
| Package depth | 140 mm |
| Package height | 465 mm |
| Package weight | 7.6 kg |
| Package type | Box |
| USB cable length | 1 m |
| Power cable length | 1.8 m |
| Quick start guide | Yes |

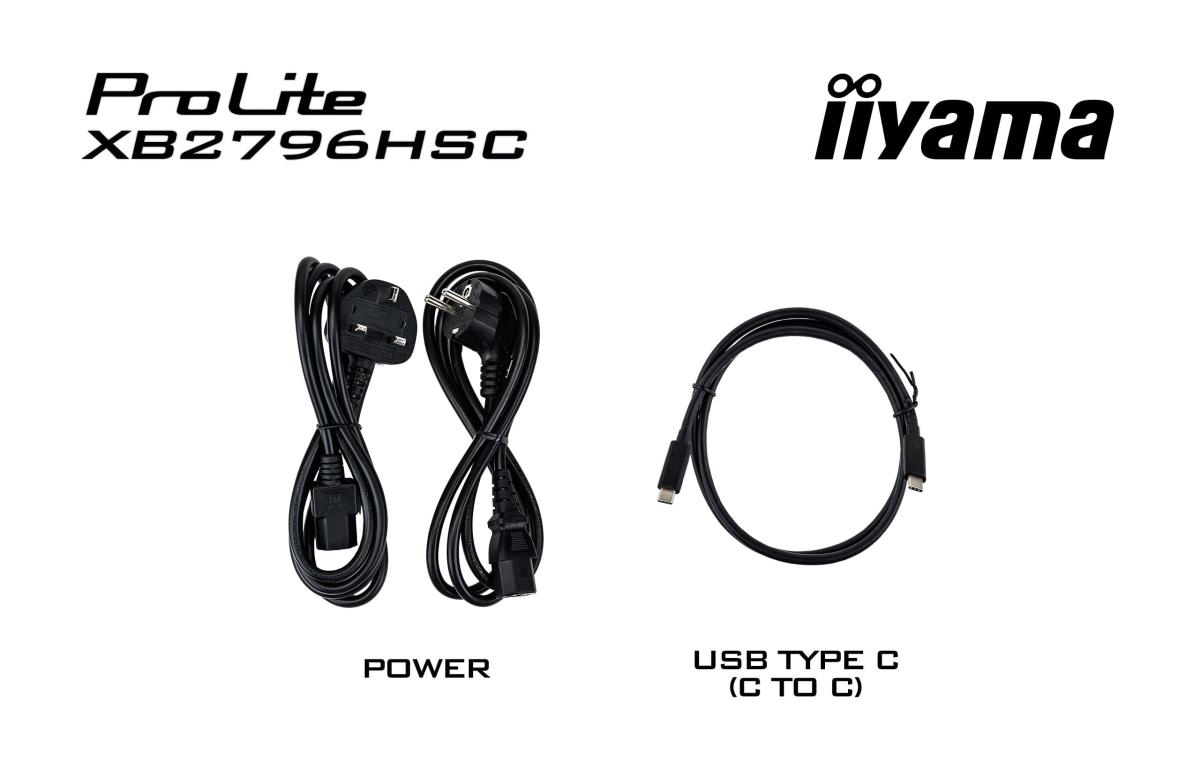

| Cables included | AC, USB Type-C |
| Packaging content | |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| USB cable length | 1 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | quick start guide, safety guide |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, USB-C speed, USB charge, DDC/Ci control), Input select, audio settings (volume, mute audio), recall (recall all) |
| Width | 612 mm |
| Weight | 6 kg |
| Depth | 224.5 mm |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Control panel | Joystick: menu (srodek), góra/ wybór sygnalu, dól/ jasnosc / od / eco / i-style colour, lewo/ zmniejsz glosnosc, prawo/ zwieksz glosnosc, zasilanie |
| Height (without stand) | 404.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| USB Power Delivery up to | 65 W |
| Energy efficiency scale | A to G |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Package type | Box |
