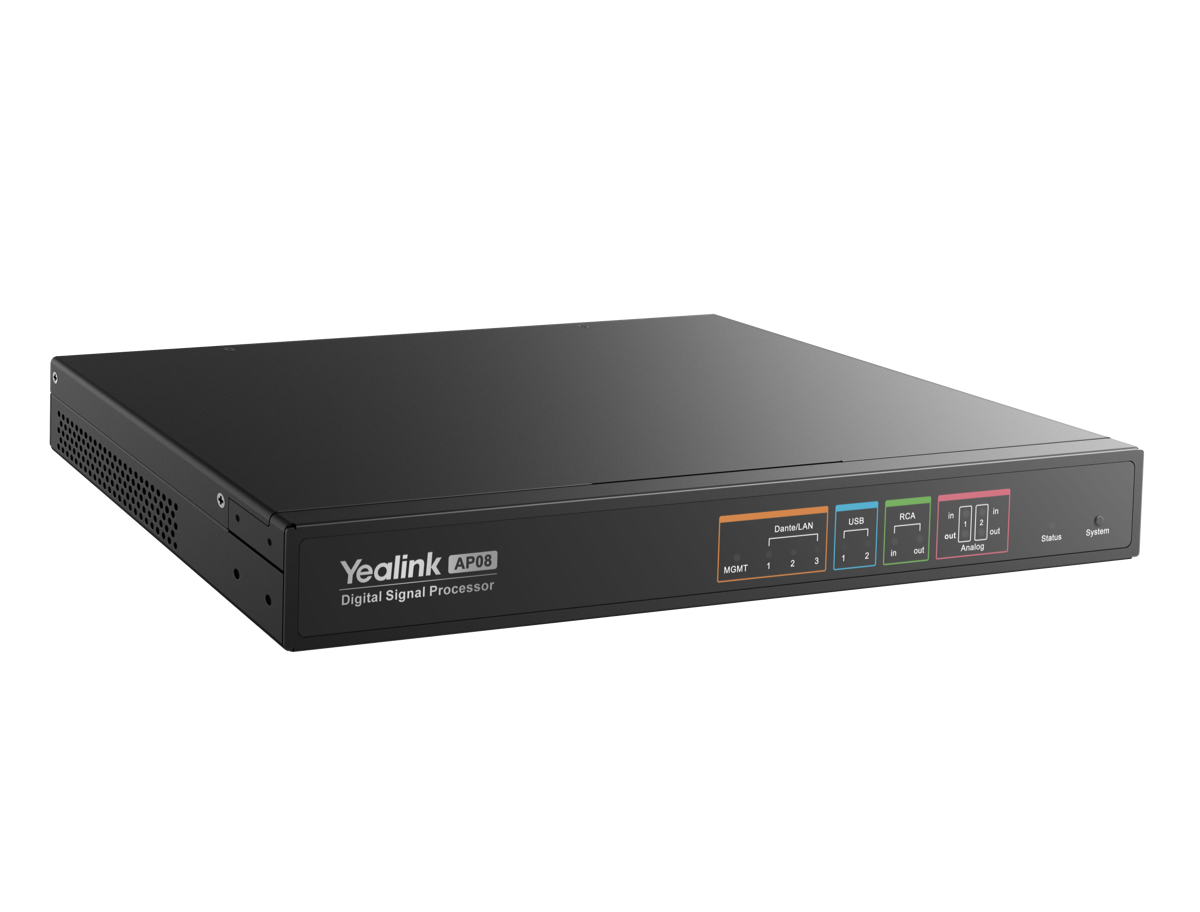

EU Product - AP08 - Dante Digital Signal Processor

Introduction

Yealink AP08 DSP, a cutting-edge digital signal processor, elevates your meeting experience with exceptional automation capabilities. It supports up to 16×16 Dante audio channels, including 8 optimized channels with dynamic AEC, intelligent noise cancellation, and reverberation suppression, as well as 4×4 analog audio channels and two simultaneous USB 3.0 Type-B device interfaces.

Specifications

Features
LED indicators	Yes
Product colour	Black
Display
Built-in display	No
Audio
Frequency range	50 - 20000 Hz
Total Harmonic Distortion plus Noise (THD+N)	1%
Dynamic range	86 dB
Ports & interfaces
RJ-45 ports quantity	4
RS-232 ports	1
AC (power) in	Yes
USB ports quantity	2
Analog audio input terminal ports	4
Analog audio output terminal ports	4
Power
Power consumption (max)	90 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 93%
Weight & dimensions
Width	189 mm
Depth	360 mm
Height	44 mm
Weight	2.2 kg
Packaging data
Package width	410 mm
Package depth	325 mm
Package height	70 mm
