EU Product - Teltonika RUT240 wireless router Fast Ethernet Single-band (2.4 GHz) 4G Black
Introduction

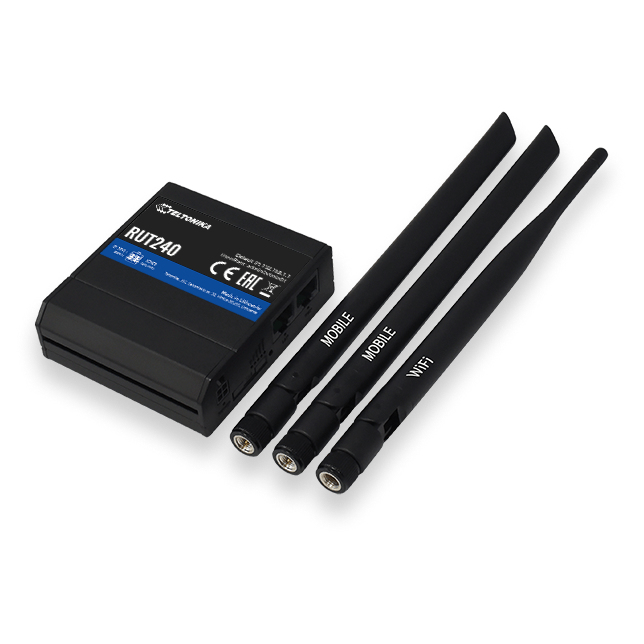

RUT240 is a compact, cost-effective and secure industrial 4G/LTE Wi-Fi router for professional applications. Mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous wide operating temperature environments. Equipped with external SIM holder, digital input/output and signal strength status LEDs, it ensures easy network management. External SMA antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| UMTS bands supported | 850,900,2100 MHz |
| Short Message Service (SMS) | Yes |
| GSM bands supported | 900,1800 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| 2G standards | Edge, GPRS, GSM |
| 3G standards | DC-HSPA+,UMTS |
| 4G standard | LTE |
| Network | |
| Short Message Service (SMS) | Yes |
| Routing protocols | BGP,OSPF,RIP-1,RIP-2 |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| VPN tunnels quantity | 4 |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| SSID-based VLAN assignment | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Security | |
| VPN tunnels quantity | 4 |
| System event log | Yes |
| Security algorithms | 3DES,128-bit AES,192-bit AES,256-bit AES,DES,SNMP,SSH,WEP,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering | Yes |
| Firewall | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Performance | |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 310000 h |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Memory card slot(s) | No |
| Certificates | |
| Certification | CE/RED, FCC, ISED (IC), EAC, RCM, PTCRB, RoHS, WEEE |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 150 Mbit/s |
| Wi-Fi band | Single-band (2.4 GHz) |
| Number of WLAN connections (max) | 50 |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Memory card slot(s) | No |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Protocols | |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT |
| Routing protocols | BGP,OSPF,RIP-1,RIP-2 |
| Design | |
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
| Antenna | |
| Detachable antenna(s) | Yes |
| Antennas quantity | 3 |
| Antenna type | External |
| Features | |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 310000 h |
| Firmware upgradeable | Yes |
| Certification | CE/RED, FCC, ISED (IC), EAC, RCM, PTCRB, RoHS, WEEE |
| Built-in processor | Yes |
| Power | |
| Power source type | AC, DC |
| Power consumption (typical) | 5 W |
| Output voltage | 9 - 30 V |
| AC input voltage | 100 - 240 V |
| Suitable for use in country/location | Europe |
| Operational conditions | |
| Storage temperature (T-T) | -45 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 83 mm |
| Weight | 125 g |
| Height | 25 mm |
| Depth | 74 mm |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
