EU Product - - Modularkabel, RJ45 zu RJ11 Stecker / Stecker, 4adrig, 3m

Introduction

RJ45 to RJ11 modular cable for telephone, fax and modem connections

Flexible connection solution:Enables devices with an RJ11 connector to be connected to existing RJ45 cabling in office and communications environments.
Ready to use:The RJ45 to RJ11 connector allows for immediate connection without the need for additional adapters or converters.
Ideal for telephony applications:Suitable for standard telephone, fax and modem connections with 4-wire pinout.
Compatible pinout:Supports the 3-2, 4-3, 5-4, 6-5 configuration for typical communication connections.

The InLine® modular cable reliably connects devices with RJ11 connectors to RJ45 sockets and is ideal for classic communication applications. The cable enables the connection of telephones, fax machines or modems to existing RJ45 cabling, thereby supporting the flexible use of existing infrastructure.
Thanks to the direct connection from RJ45 8P/4 to RJ11 4P/4C, the cable can be used without additional adapters. The 4-wire pinout supports typical telephony and communication applications in both domestic and professional environments.
The modular cable is particularly suitable for installations where existing RJ45 sockets are to be used for telephone or modem connections. Different cable lengths allow for flexible integration into various installation environments.

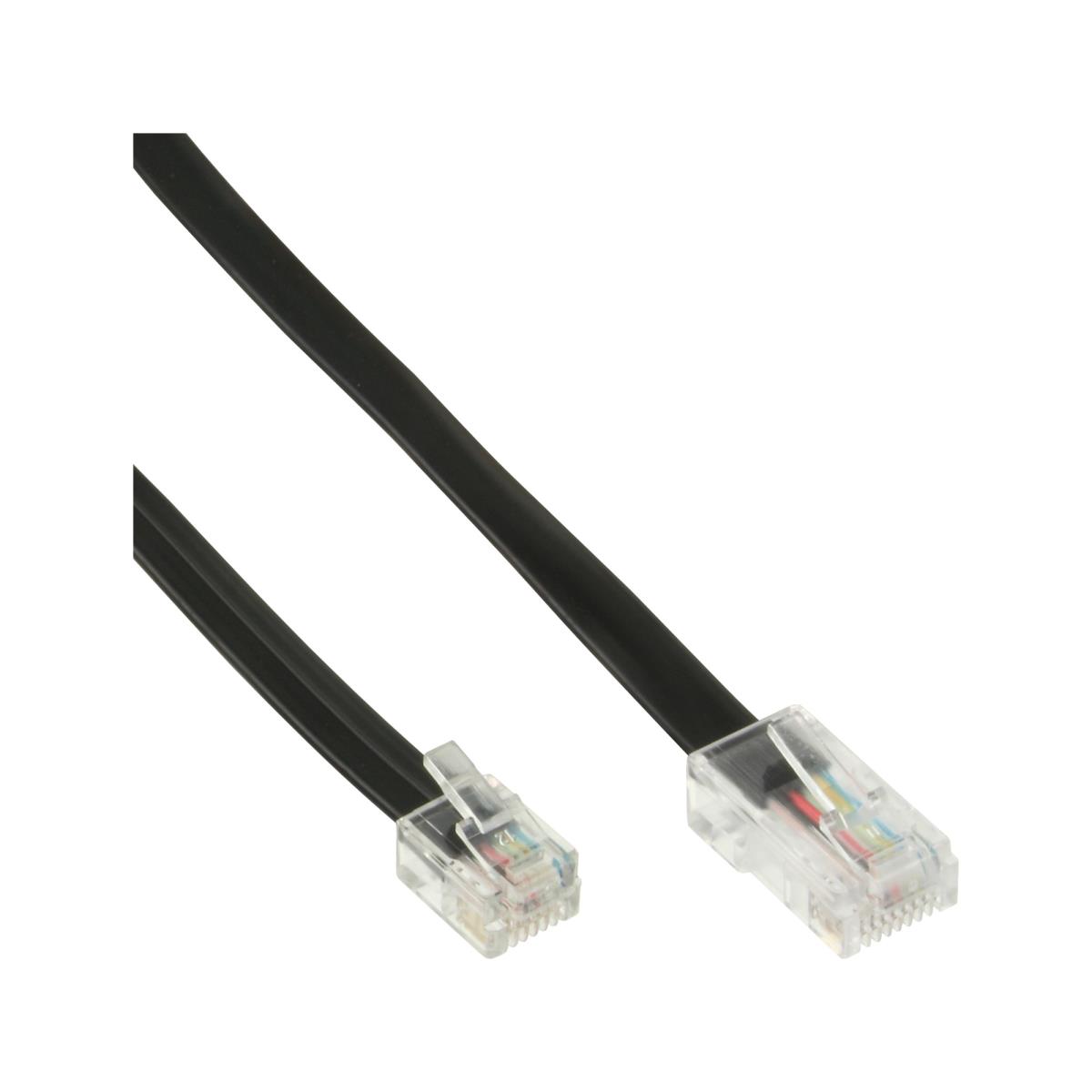

RJ45 8P/4 plug to RJ11 4P/4C plug
4-wire configuration

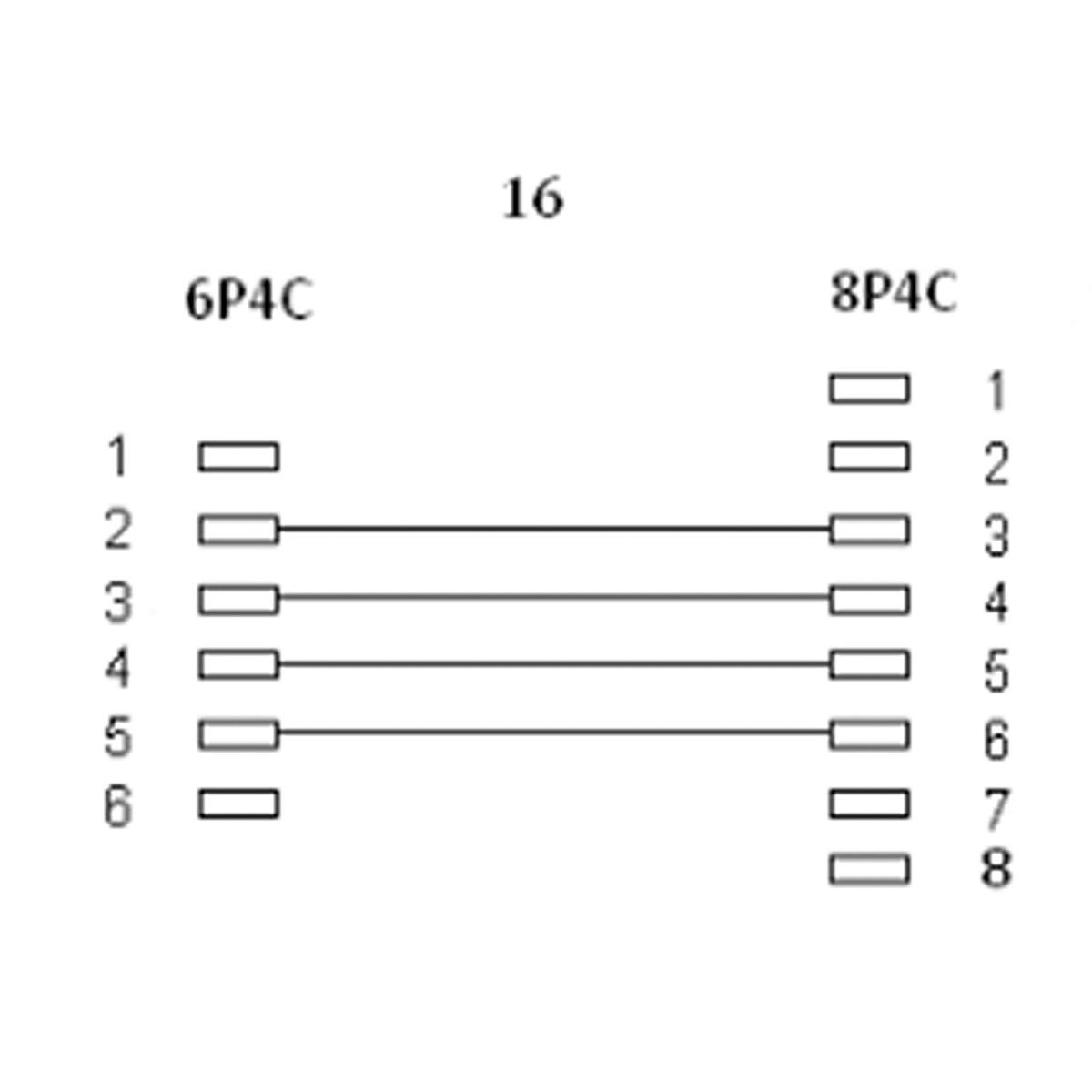

Configuration 3-2, 4-3, 5-4, 6-5

Specifications

Features
Connector 2	RJ11
Connector 1	RJ45
Product colour	Black
Cable length	3 m
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Weight	37 g
Packaging data
Package weight	40 g
Package depth	140 mm
Package volume	300 cm³
Weight	37 g
Package width	100 mm
Package height	18 mm
Technical details
Connector type	8P4C
Weight	37 g
Dimensions (WxDxH)	12 x 3000 x 15 mm
Product colour	Black
Cable length	3 m
Ports & interfaces
Connector 2	RJ11
Connector 1	RJ45
