TV/MONITOR WALL MOUNT TILT/SWIV
Introduction
Create a better work space, improve ergonomics and share views.

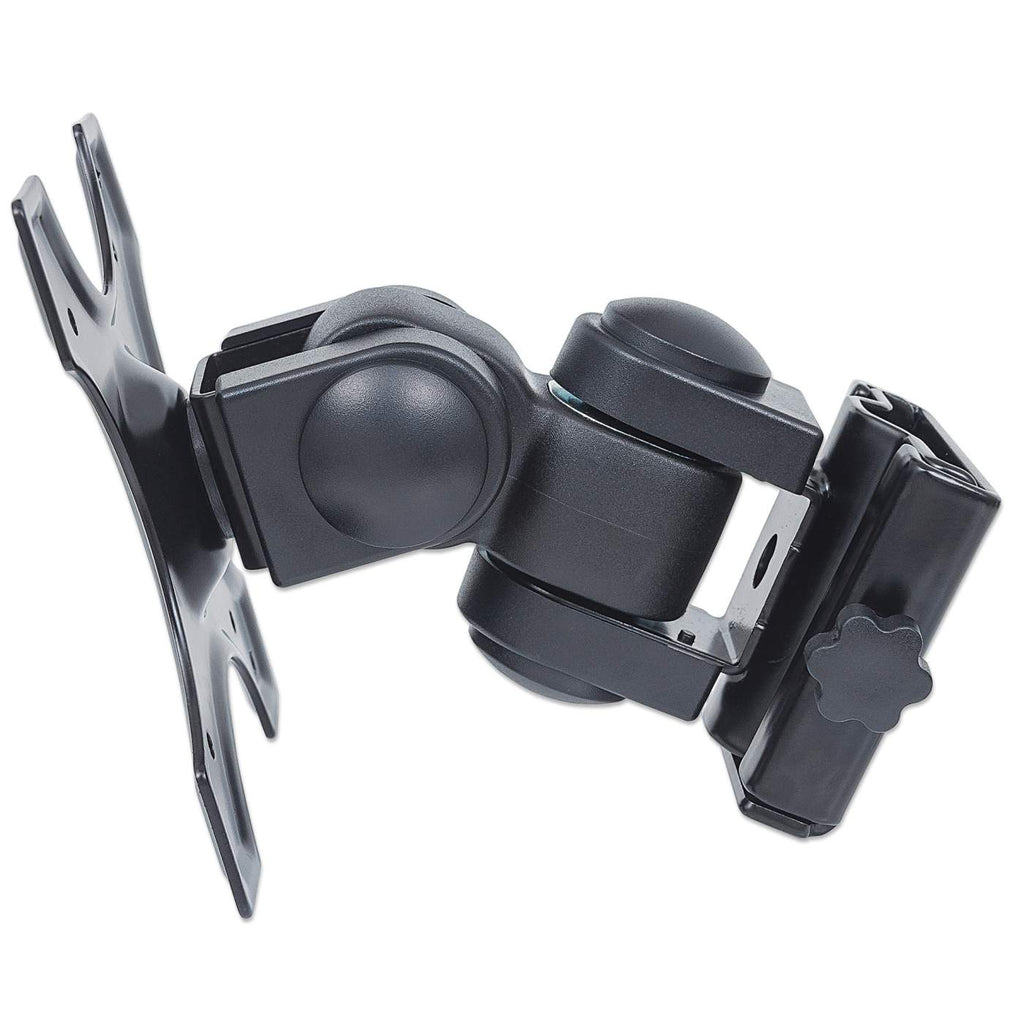

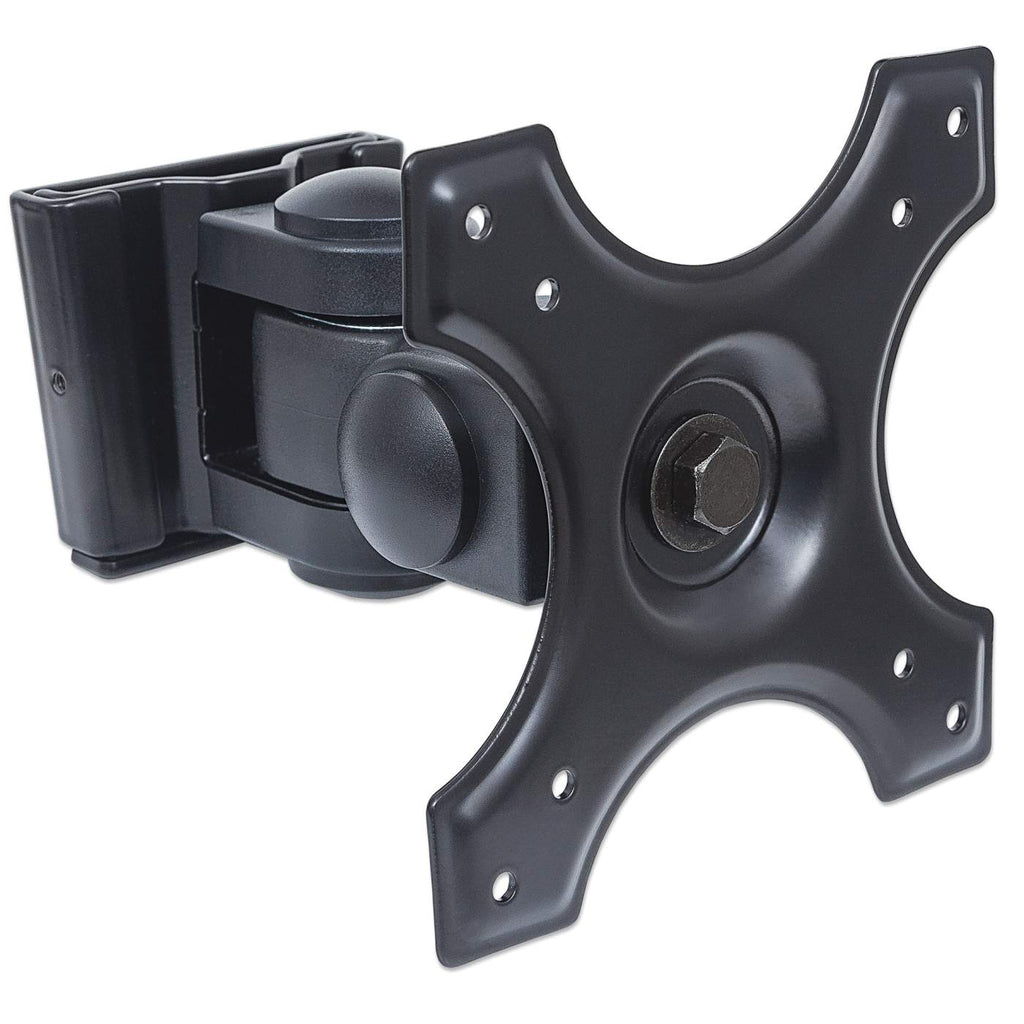

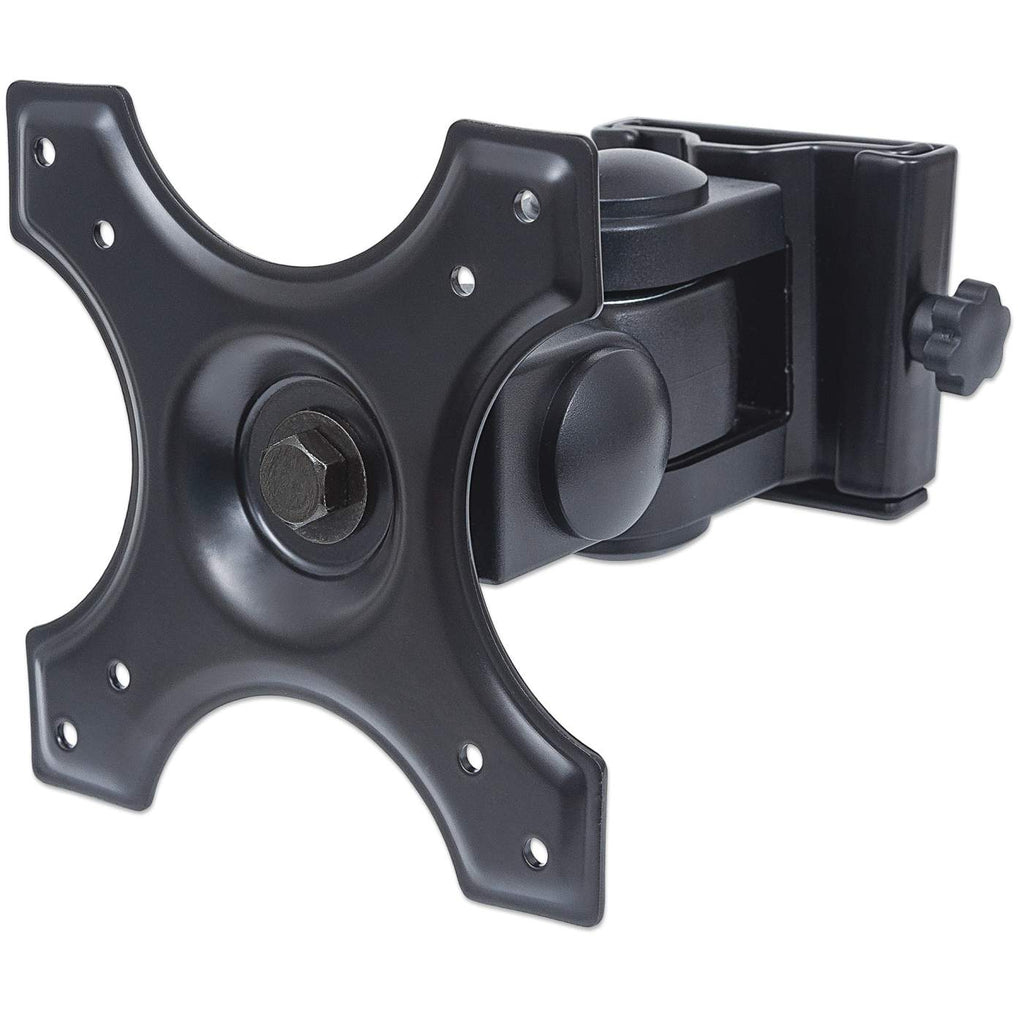

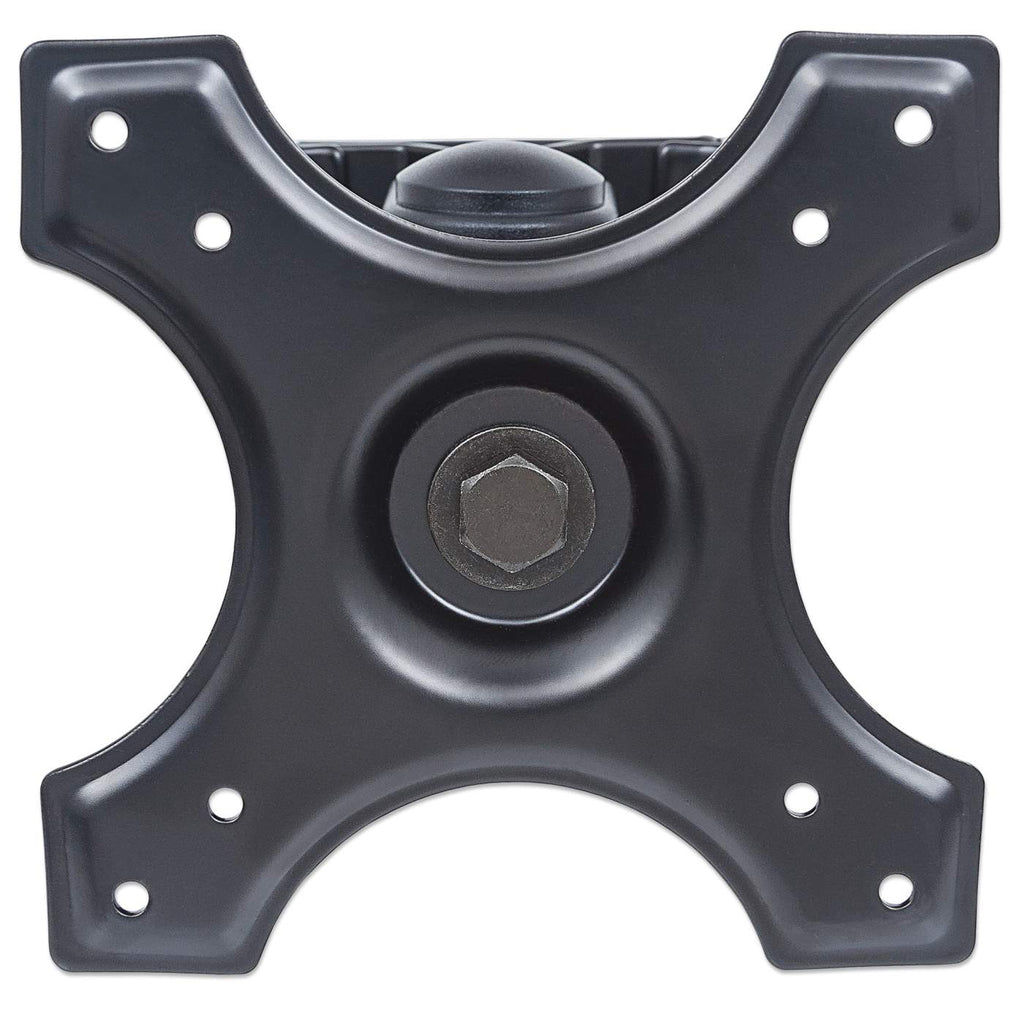

The Manhattan LCD Wall Mount provides a secure and elevated position for a single flat-panel display to help keep valuable desk and work space free and uncluttered. Its adjustable tilt, rotate, side-to-side settings enable a comfortable and productive viewing position. Durable die-cast aluminium construction and two-piece bracket provide a quick, easy and secure mount to most vertical surfaces. This mount is VESA compliant and ready to install with included hardware.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 33 cm (13") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 12 kg |
| Maximum screen size | 55.9 cm (22") |
| Ergonomics | |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -90 - 90° |
| Angle of rotation | 360° |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Wall |
| Product colour | Black |

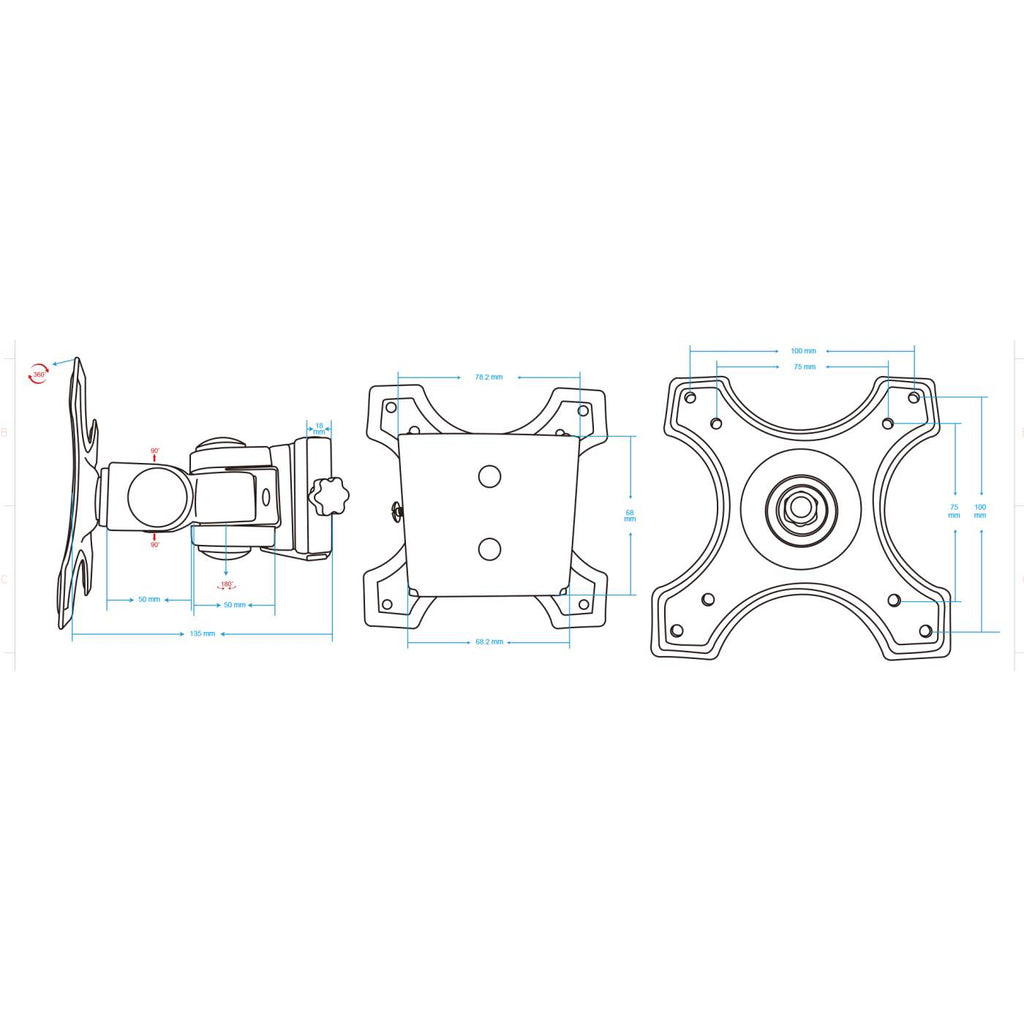

| Weight & dimensions | |
| Width | 120 mm |
| Height | 120 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Depth (max) | 13.5 cm |
| Mounting type | Wall |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
