EU Product - Zubehr DMC-01 Tischbefestigung - Flatscreen Accessory
Introduction

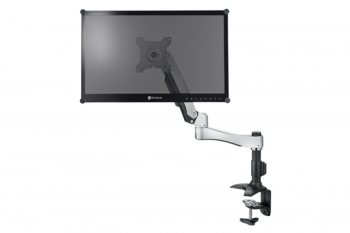

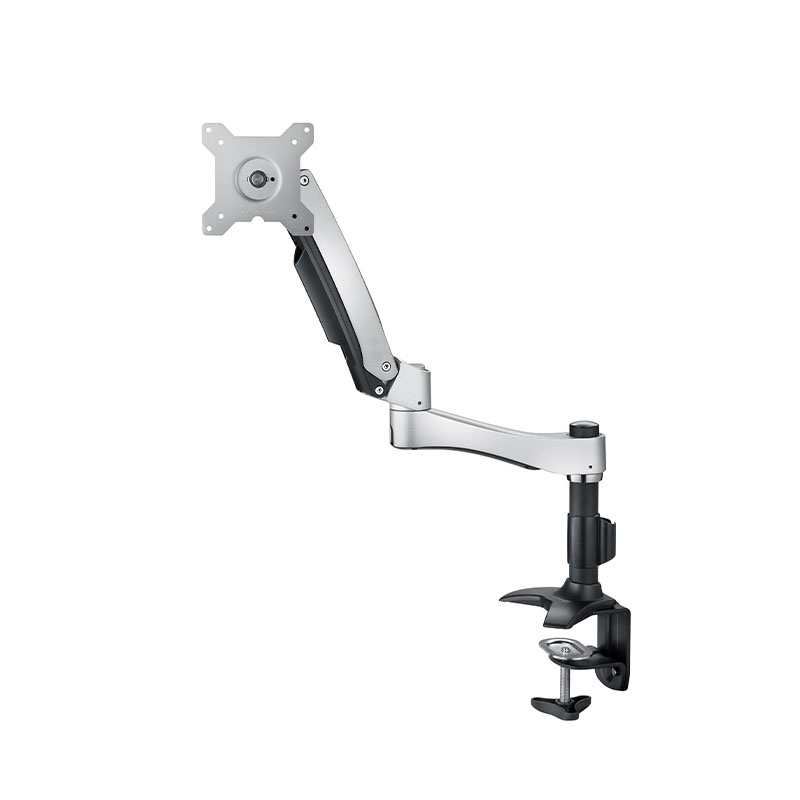

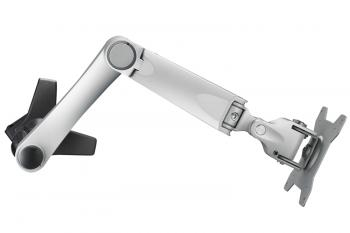

Allow any viewing angle and maximise space utilisation with the AG Neovo DMC-01 interactive desk clamped arm. More than swivel, tilt, height adjustment as well as rotation, the innovative DMC-01 desk mount is equipped with a flexible arm with two joints for optimum viewing and great ergonomic comfort. Compatible with VESA standard, the DMC-01 accommodates displays weighing up to 10 kg and perfectly suits home, office and especially multi-user environments.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 38.1 cm (15") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Maximum weight capacity | 10 kg |
| Maximum screen size | 71.1 cm (28") |
| Suitable for TV | Yes |
| Ergonomics | |
| Adjustable depth | Yes |
| Height adjustment | Yes |
| Swivel angle range | -90 - 90° |
| Swivel angle | 180° |
| Tilt angle range | -20 - 90° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black, Silver |
| Design | |
| Product colour | Black, Silver |
| Housing material | Aluminium, Plastic, Steel |
| Orientation | Landscape/Portrait |
| Weight & dimensions | |
| Package width | 645 mm |
| Package depth | 218 mm |
| Package height | 143 mm |
| Width | 620 mm |
| Depth | 158 mm |
| Height | 656 mm |
| Weight | 3.8 kg |
| Package weight | 3.9 kg |
| Packaging content | |
| Clamp included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging data | |
| Clamp included | Yes |
| Package weight | 3.9 kg |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp |
