K1C120B
Introduction

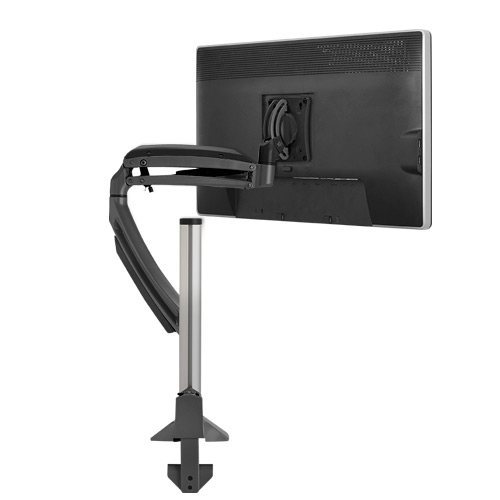

The enhanced Kontour™ K1C Dynamic Height-Adjustable Column Mounts are the perfect solutions for the office, healthcare facilities or home. Provides the maximum amount of both dynamic and manual height adjustment for the ultimate ergonomic solution.
Key enhancements have been made to Chief's patented Centris™ Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.
- Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
- No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One!
- Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes
- Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
- Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
- 20" (508 mm) of total height adjustment range
- 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
- Additional 7" (178 mm) of manual height adjustment on the column
- Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base

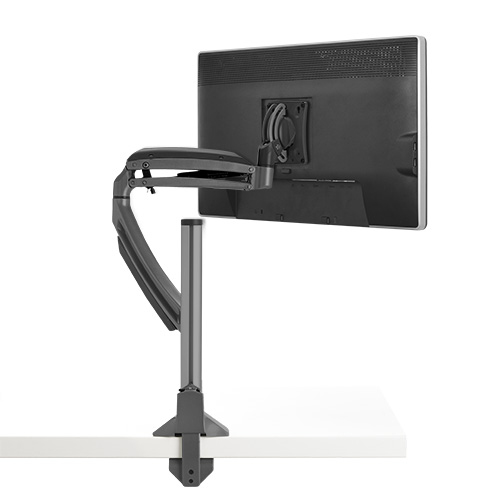

- Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
- Tool-free cable management covers for a clean, professional look
- With high levels of recycled content & a highly-recyclable design, Chief Kontour™ monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
- See our LEED Flyer for more details
- Most Kontour™ K1 products are TAA-compliant - see respective product pages for details
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9.9 kg |
| Maximum screen size | 76.2 cm (30") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 177.8 - 330.2 mm |
| Tilt angle range | -10 - 75° |
| Design | |
| Product colour | Black |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Packaging data | |
| Package weight | 6 kg |
| Weight & dimensions | |
| Package weight | 6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Desk |
