Large Flat Panel Ceiling Mount
Introduction
Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.
- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY
Simple on/off connection for ease of installation and service.

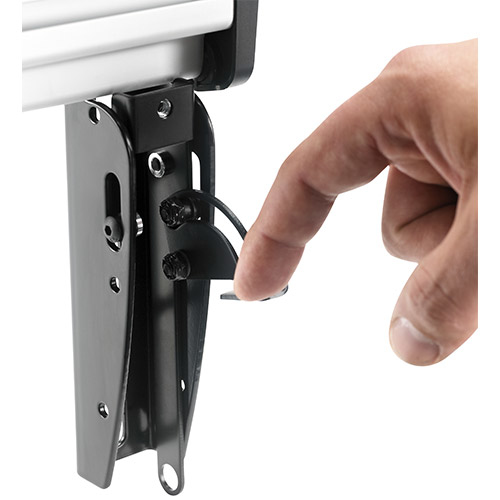

CENTRIS FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
FLEXIBILITY
Mount swivels to any preferred viewing angle.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 76.2 cm (30") |
| Maximum weight capacity | 56.7 kg |
| Number of displays supported | 1 |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 152.4 cm (60") |
| Ergonomics | |
| Tilt angle range | -5 - 20° |
| Design | |
| Housing material | Steel |
| Certification | ULCERT |
| Product colour | Black |
| Weight & dimensions | |
| Width | 681 mm |
| Depth | 162 mm |
| Height | 419 mm |
| Package weight | 8.22 kg |
| Packaging data | |
| Package weight | 8.22 kg |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Ceiling |
| Certificates | |
| Certification | ULCERT |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
