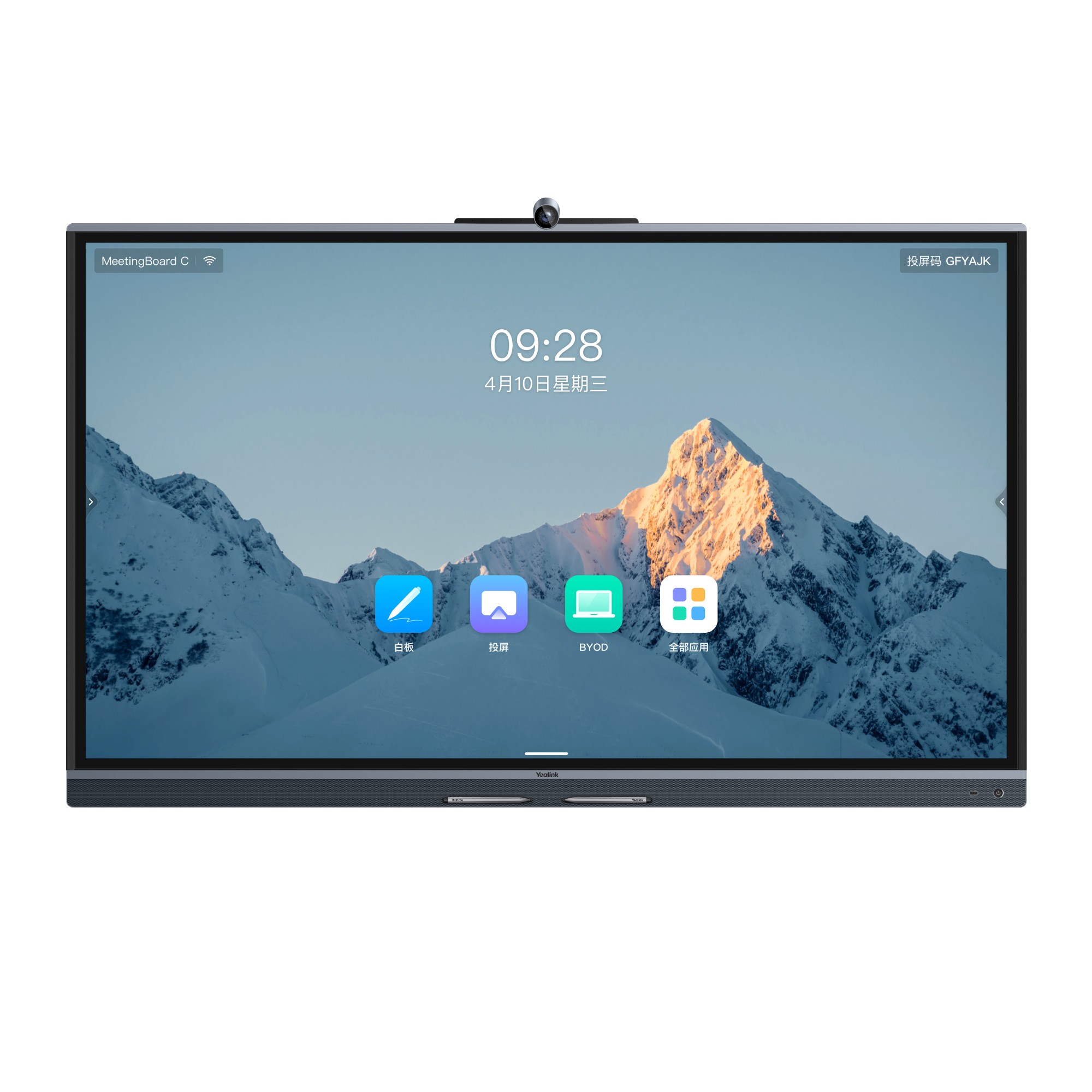

EU Product - Meetingboard C 75 Edla 75''/4K
Introduction
The MeetingBoard 75C is an all-in-one video conferencing device designed with simplicity — streamline installation and deployment. The movable design also allows for flexibility. It takes just 15 minutes to set up, and you can position wherever you need it, get it rolling anywhere, connect with just one cable.
Specifications
| Display | |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Aspect ratio | 16:9 |
| Viewing angle | 178° |
| Touchscreen | Yes |
| Display brightness | 400 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Number of simultaneous touchpoints | 20 |
| Maximum refresh rate | 60 Hz |
| Anti-glare surface | Yes |
| Design | |
| Housing colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| USB port type | USB Type-A |
| USB port | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor cores | 8 |
| RAM capacity | 8 GB |
| Storage capacity | 64 MB |
| Windows operating systems supported | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Number of microphones | 16 |
| Speaker power | 30 W |
| Camera | |
| Built-in camera | Yes |
| Total megapixels | 50 MP |
| Maximum resolution | 3840 x 2160 pixels |
| Field of view (FOV) angle | 98.2° |
| PTZ control | Yes |
| Camera shutter type | Electronic |
| Camera privacy shutter | Yes |
| F-number (relative aperture) | 1.56 |
| Network | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Security algorithms | SNMP |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| MIMO | Yes |
| Ports & interfaces | |
| USB port type | USB Type-A |
| USB port | Yes |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| 3.5 mm connector | Yes |
| Power | |
| Power source type | AC |
| USB output voltage | 5 V |
| USB output current | 0.5 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 243 W |
| Power consumption (average) | 141 W |
| Weight & dimensions | |
| Width | 1705 mm |
| Depth | 105 mm |
| Height | 1081 mm |
| Weight | 52.2 kg |
| Packaging data | |
| Package width | 1900 mm |
| Package depth | 225 mm |
| Package height | 1160 mm |
| Package weight | 65 kg |
| Package type | Box |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Packaging content | - 1 x 3m AC power cable - 1 x 3m CAT5E network cable - 4 x Stylus pens - 3 x Cable ties - 1 x Quick Start Guide |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Features | |
| Built-in speaker(s) | Yes |
