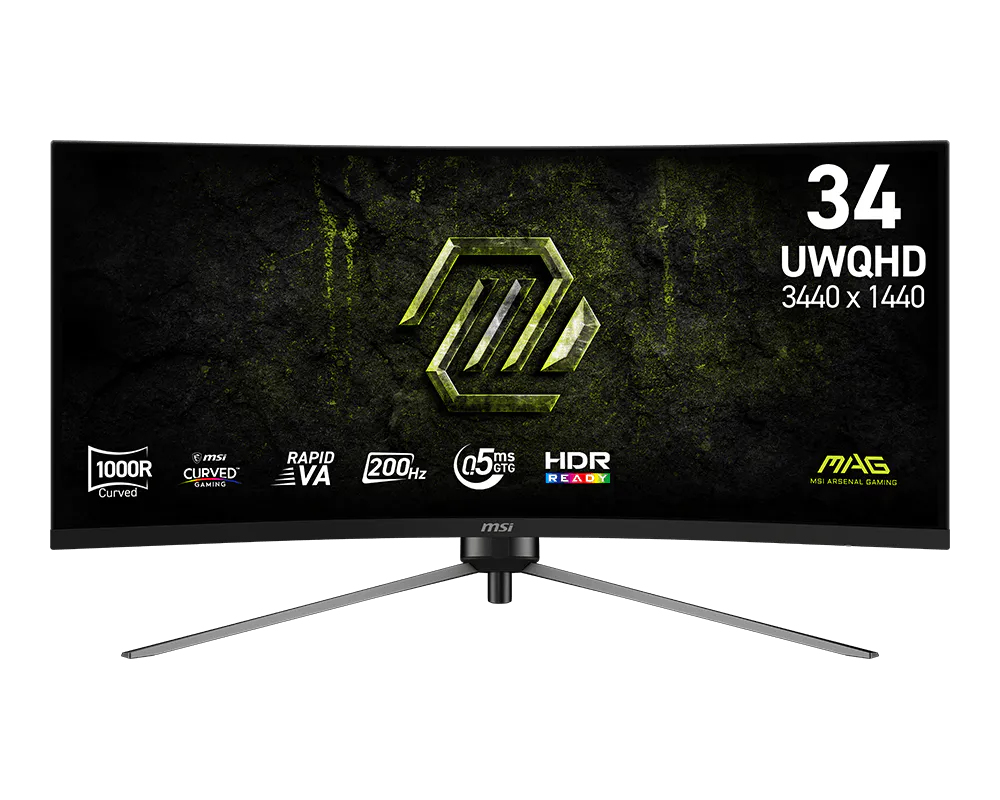

EU Product - MAG 345CQRF E20 86,36 UWQHD 16:9 VA DP HDMI
Introduction
Experience immersive gaming with the MAG 345CQRF E20 gaming monitor. It features a 3440x1440 (UWQHD) panel, a 200Hz refresh rate, and a rapid 0.5ms (GtG, Min) response time. The monitor is HDR Ready, enhancing eye-catching details through adjustments in contrast and shadows. Designed for competitive FPS, first-person RPG/MMORPG, and flight/racing simulator genres, the MSI MAG 345CQRF E20 gaming monitor takes casual gaming to a new level, challenging players to see beyond the game.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Display | |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Curved |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 21:9 |
| Colour gamut | 90% |
| Maximum refresh rate | 200 Hz |
| sRGB coverage (typical) | 110% |
| HD type | UltraWide Dual Quad HD |
| Contrast ratio (dynamic) | 100000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.23175 x 0.23175 mm |
| Horizontal scan range | 70.51 - 285.31 kHz |
| Vertical scan range | 48 - 200 Hz |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Supported graphics resolutions | 3440 x 1440 |
| Supported video modes | 1440p |
| Display resolution | 3440 x 1440 pixels |
| Response time | 0.5 ms |
| Display diagonal | 86.4 cm (34") |
| Contrast ratio (typical) | 3500:1 |
| NTSC coverage (typical) | 88% |
| Touchscreen | No |
| Panel type | Rapid VA |
| DCI-P3 coverage | 90% |
| Screen curvature rating | 1000R |
| Display diagonal (metric) | 86.36 cm |
| Colour gamut standard | DCI-P3 |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Market positioning | Gaming |
| Feet colour | Black |
| Product colour | Black |
| Frameless design | Yes |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Headphone out | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDMI | Yes |
| HDMI version | 2.0b |
| DisplayPort version | 1.4a |
| Technical details | |
| Height (without stand) | 363 mm |
| Depth (without stand) | 158.2 mm |
| Width (without stand) | 797.5 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Power supply type | External |
| Weight (with stand) | 7.75 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt angle range | -5 - 20° |
| Pivot | Yes |
| Pivot angle | -1.5 - 1.5° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 10 cm |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Input current | 3.42 A |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 19 V |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 31 kWh |
| Energy consumption (HDR) per 1000 hours | 57 kWh |
| Weight & dimensions | |
| Height (without stand) | 363 mm |
| Depth (without stand) | 158.2 mm |
| Width (without stand) | 797.5 mm |
| Width (with stand) | 797.5 mm |
| Depth (with stand) | 332.3 mm |
| Height (with stand) | 418.9 mm |
| Weight (with stand) | 7.75 kg |
| Package width | 985 mm |
| Package depth | 228 mm |
| Package height | 510 mm |
| Package weight | 11.3 kg |
| Packaging data | |
| Package width | 985 mm |
| Package depth | 228 mm |
| Package height | 510 mm |
| Package weight | 11.3 kg |
| Package type | Box |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, Audio (3.5mm), DisplayPort, Power |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, Audio (3.5mm), DisplayPort, Power |
| Other features | |
| DCI-P3 coverage | 90% |
| Height (without stand) | 363 mm |
| Depth (without stand) | 158.2 mm |
| Width (without stand) | 797.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen | No |
| Package type | Box |
