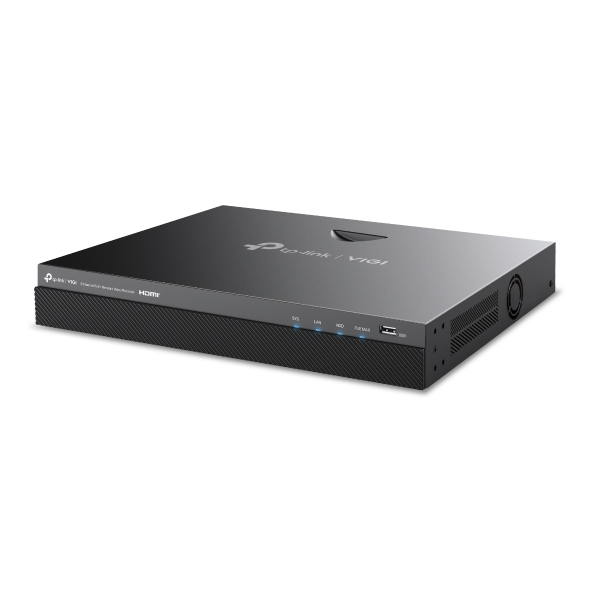

EU Product - NVR VIGI NVR2008H-8MP NVR2008H8MP - Network Accessory
Introduction
Security Never Shuts Down
VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder
- 8-Channel Live View
- 4K HDMI Video Output
- 93W PoE Budget
- 8-Channel Live View
- Smart Video Coding
- Comprehensive Compatibility
- Auto Initialize
- 2× SATA Interfaces (1 Up to 16 TB)
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Specifications
| Performance | |
|---|---|
| Video input channels | 8 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Audio formats supported | G.711, G.711u, G.726 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum frame rate | 60 fps |
| Supported resolutions | 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720 |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 32 TB |
| HDD interface | SATA |
| Storage | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 32 TB |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 9 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA | Yes |
| Audio RCA inputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Audio RCA outputs | 1 |
| HDMI ports quantity | 1 |
| Storage relative humidity (H-H) | 10 - 90% |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Output voltage | 53.5 V |
| Output current | 2.43 A |
| Power consumption (typical) | 35 W |
| Total Power over Ethernet (PoE) budget | 93 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
