EU Product - 16 Channel Network Video Recorder - VIGI NVR4016H - Server - 64,000 GB
Introduction
Security Never Shuts Down
16 Channel Network Video Recorder

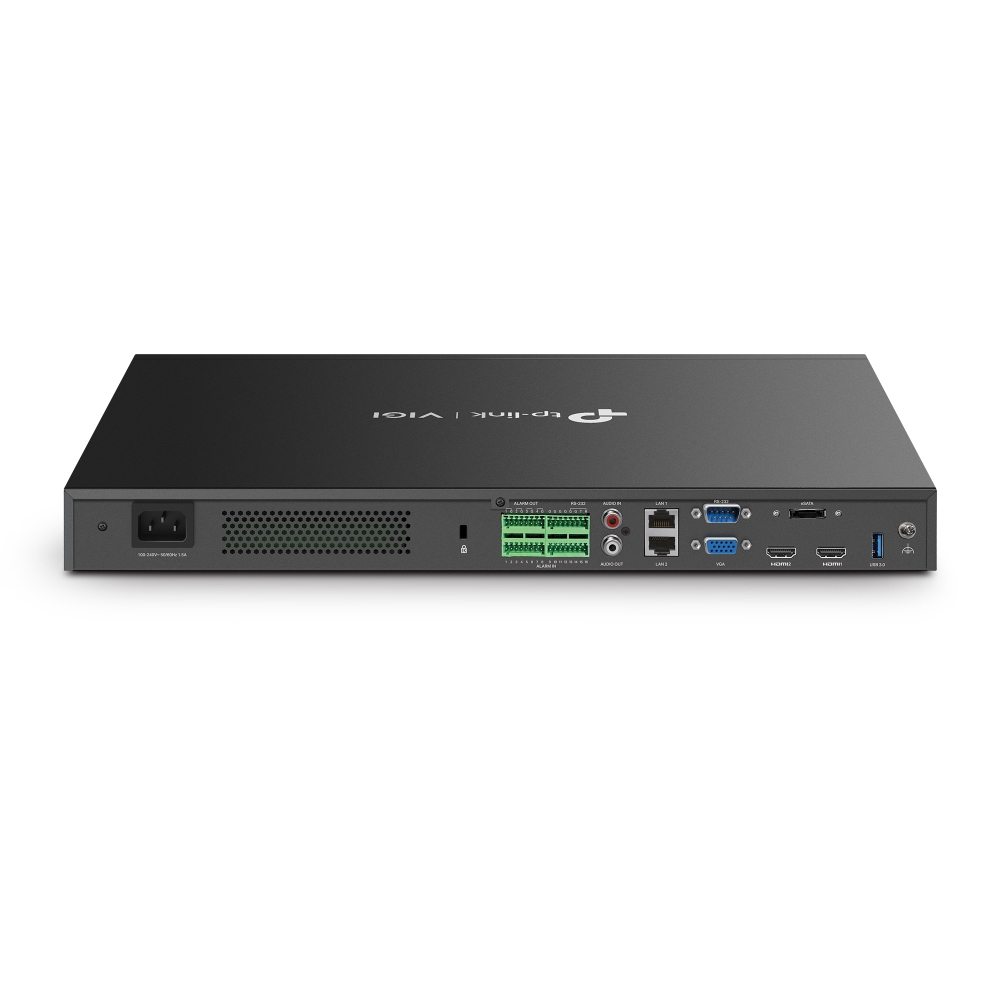

Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Specifications
| Performance | |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Backup function | Yes |
| Audio formats supported | G.711, G.711u, G.726 |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Recording modes | Manual, Schedule |
| Audio system | 2-way |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Output bandwidth | 320 Mbit/s |
| Input bandwidth | 320 Mbit/s |
| Hard drive | |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Storage | |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| eSATA | Yes |
| Audio RCA inputs | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Audio RCA outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| eSATA ports quantity | 1 |
| RS-232 ports | 1 |
| HDMI ports quantity | 2 |
| Storage relative humidity (H-H) | 10 - 90% |
| Features | |
| Rack mounting | Yes |
| Reset button | Yes |
| Buzzer off | Yes |
| Product colour | Black |
| Power | |
| Output current | 1.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 45 W |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 5 kg |
| Packaging content | |
| Packaging content | - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet |
