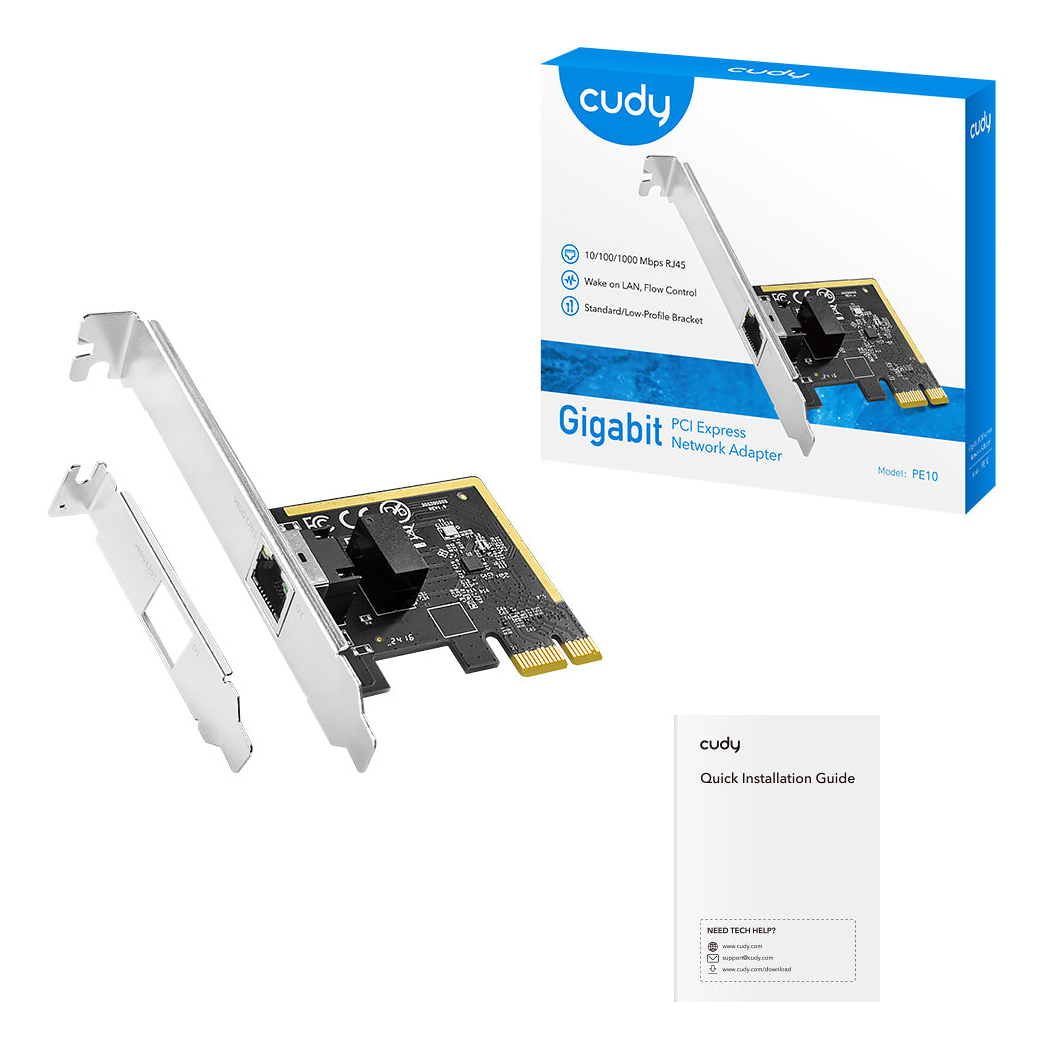

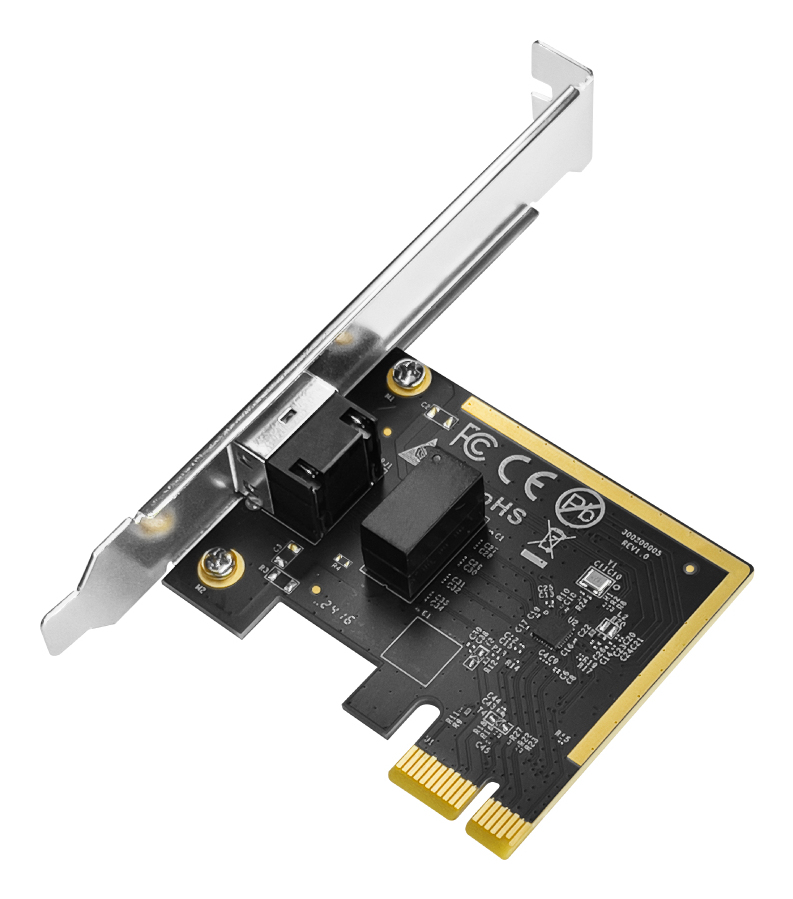

EU Product - PCI Express Adapter PE10 - Interface Card - PCI-Express
Introduction
Ultra-Fast Gigabit Network for All Applications
Experience ultra-fast gigabit speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE10 ensures reliable, high-performance connectivity with auto-negotiation across 10/100/1000 Mbps for demanding tasks.
Standard/Low-Profile Bracket for different chassis
Compatible with different PCI-E slots
Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.
Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.
Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.
Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Compatible products | PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X |
| Products per shipping (inner) case | 80 pc(s) |
| Warranty period | 1 year(s) |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Mobile network generation | Not supported |
| Design | |
| Compatible products | PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X |
| Internal | Yes |
| Component for | PC |
| Software | |
| Windows operating systems supported | Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home |
| Mac operating systems supported | No |
| Other operating systems supported | Linux |
| System requirements | |
| Windows operating systems supported | Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home |
| Mac operating systems supported | No |
| Other operating systems supported | Linux |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 64 mm |
| Depth | 56 mm |
| Height | 15 mm |
| Weight | 33.8 g |
| Package width | 140 mm |
| Package depth | 123 mm |
| Package height | 29 mm |
| Package weight | 111.9 g |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 123 mm |
| Package height | 29 mm |
| Package weight | 111.9 g |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Resource CD | No |
| Bluetooth header cable | No |
| Packaging content | PE10 Low-Profile Bracket Installation Guide |
| Quick start guide | Yes |
| Performance | |
| Compatible products | PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X |
| Windows operating systems supported | Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 Home |
| Mac operating systems supported | No |
| Other operating systems supported | Linux |
| Other features | |
| Manual | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Products per shipping (inner) case | 80 pc(s) |
