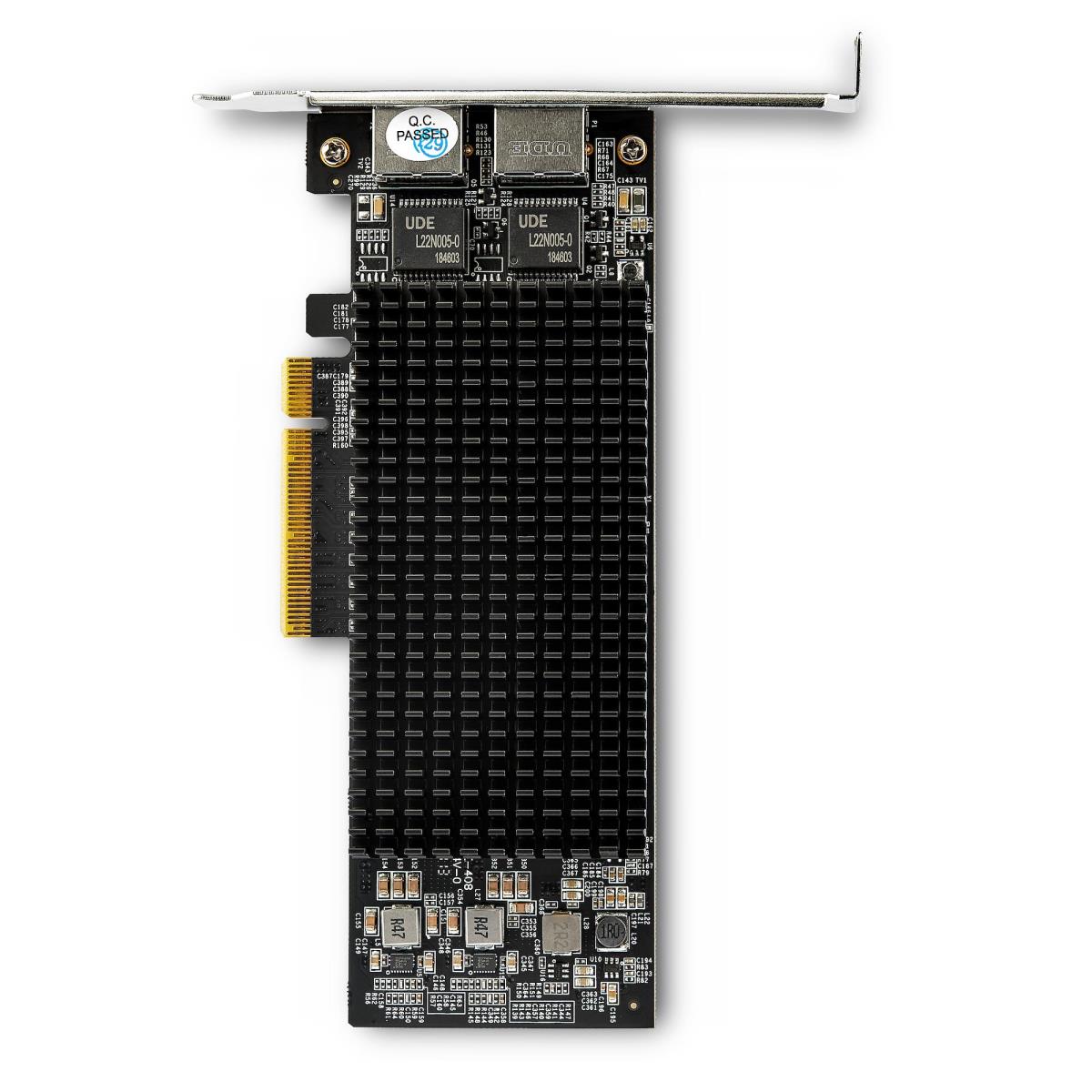

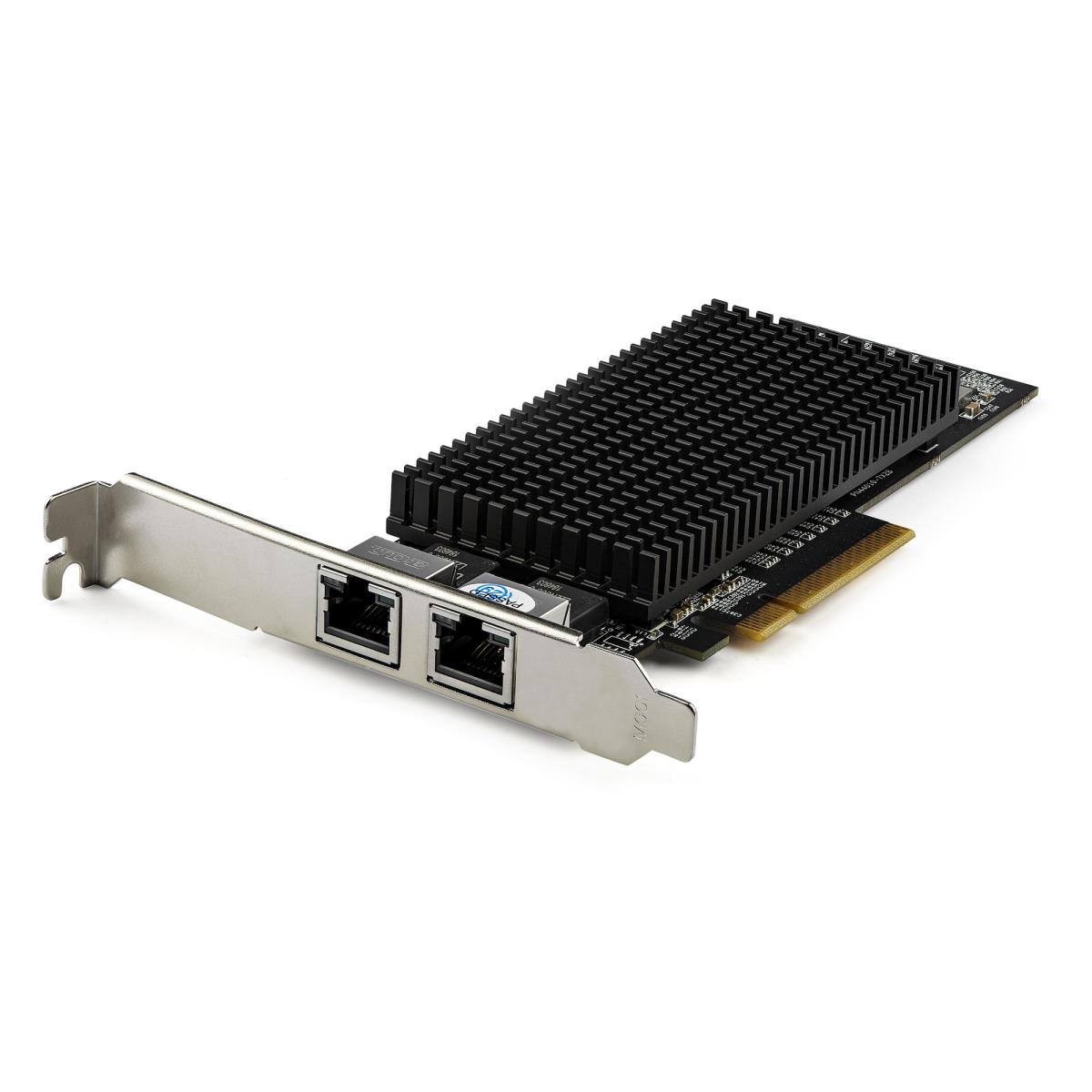

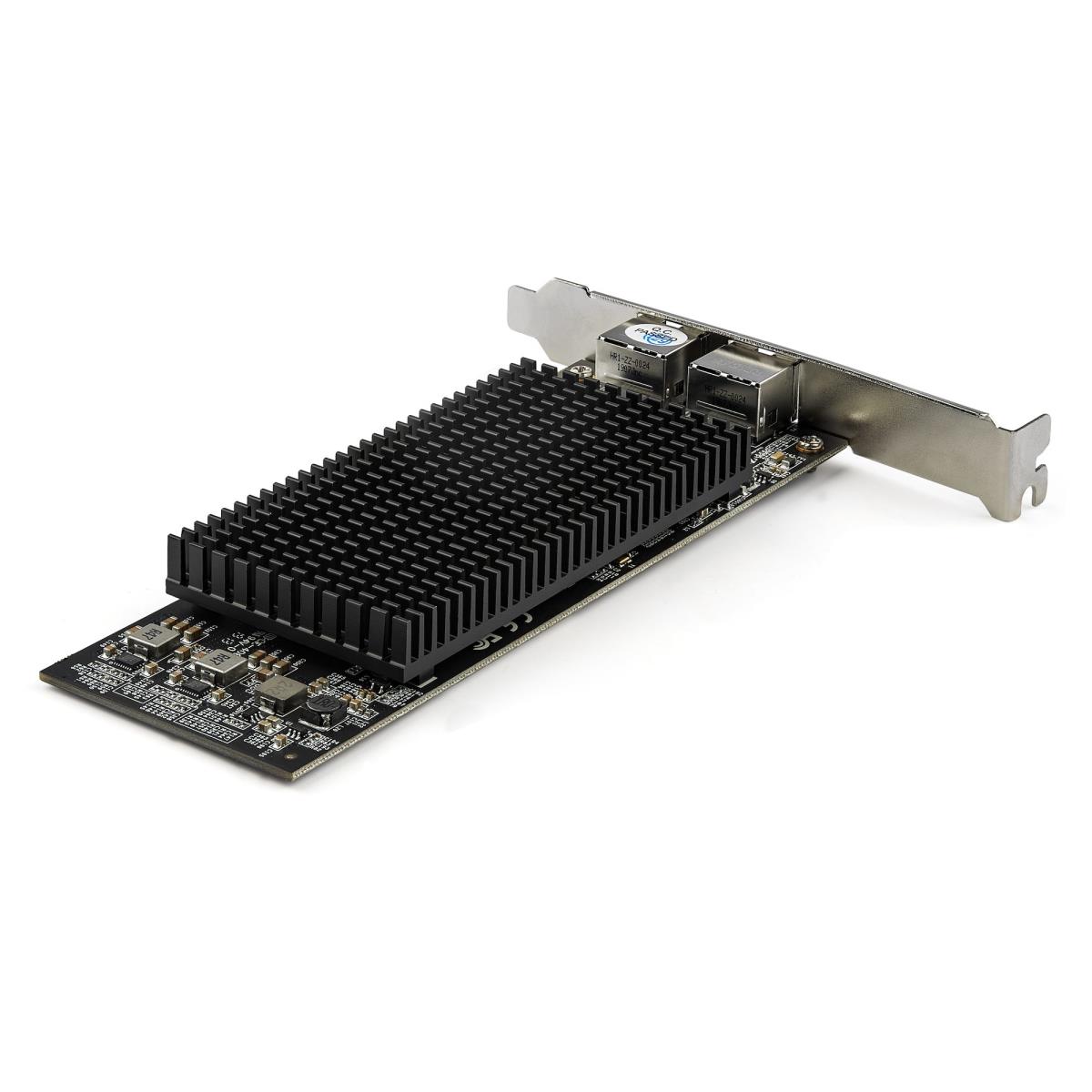

Dual-Port 10GB Pci-e Network Card with 10GBASE-T & NBASE-T

Introduction

This dual-port 10Gb PCIe network card offers a versatile and low-cost way to deploy 10GbE network connectivity. It adds two copper Ethernet ports to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at five speeds: 10G, 5G, 2.5G, 1G and 100Mbps.

Cost-Effective Multi-Gigabit Ethernet Solution

The 10GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 10GBASE-T and NBASE-T equipment at network speeds of:

• 100Mbps, 1Gbps, 2.5Gbps or 5Gbps over your CAT5e cabling (up to 100 m)
• 10Gbps over your CAT6 or better cabling (up to 100 m)

Optimal Technology for Optimal Performance

The network adapter card adds two Ethernet ports to your workstation through an x8 PCIe 2.X (or higher) slot. It features 10GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The NIC card also supports additional features including 9K Jumbo Frames, Autonegotiation, Auto-MDIX and 802.1q VLAN tagging.

Energy Efficient Ethernet

The dual Tehuti TN4010 + Marvell 88X3110 chipset, compliant with IEEE 802.3az, ensures peak operation and reduced power consumption. The decreased consumption minimizes the heat generated to avoid operating temperatures increasing within your server case.

The ST10GSPEXNDP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features

• Multi-Gigabit Ethernet connectivity with five network speeds: 10G, 5G, 2.5G 1G and 100Mbps
• Compatible with both 10GBASE-T and NBASE-T specifications
• Supports 2.5 and 5Gbps network speeds on CAT5e cabling and 10Gbps on CAT6a
• IEEE 802.3az compliant energy-efficient chipset with Tehuti Networks TN4010 & Marvell 88X3110
• Flexible installation with both standard and low-profile brackets included

Specification

Connector Type(s): PCI Express x8 Male

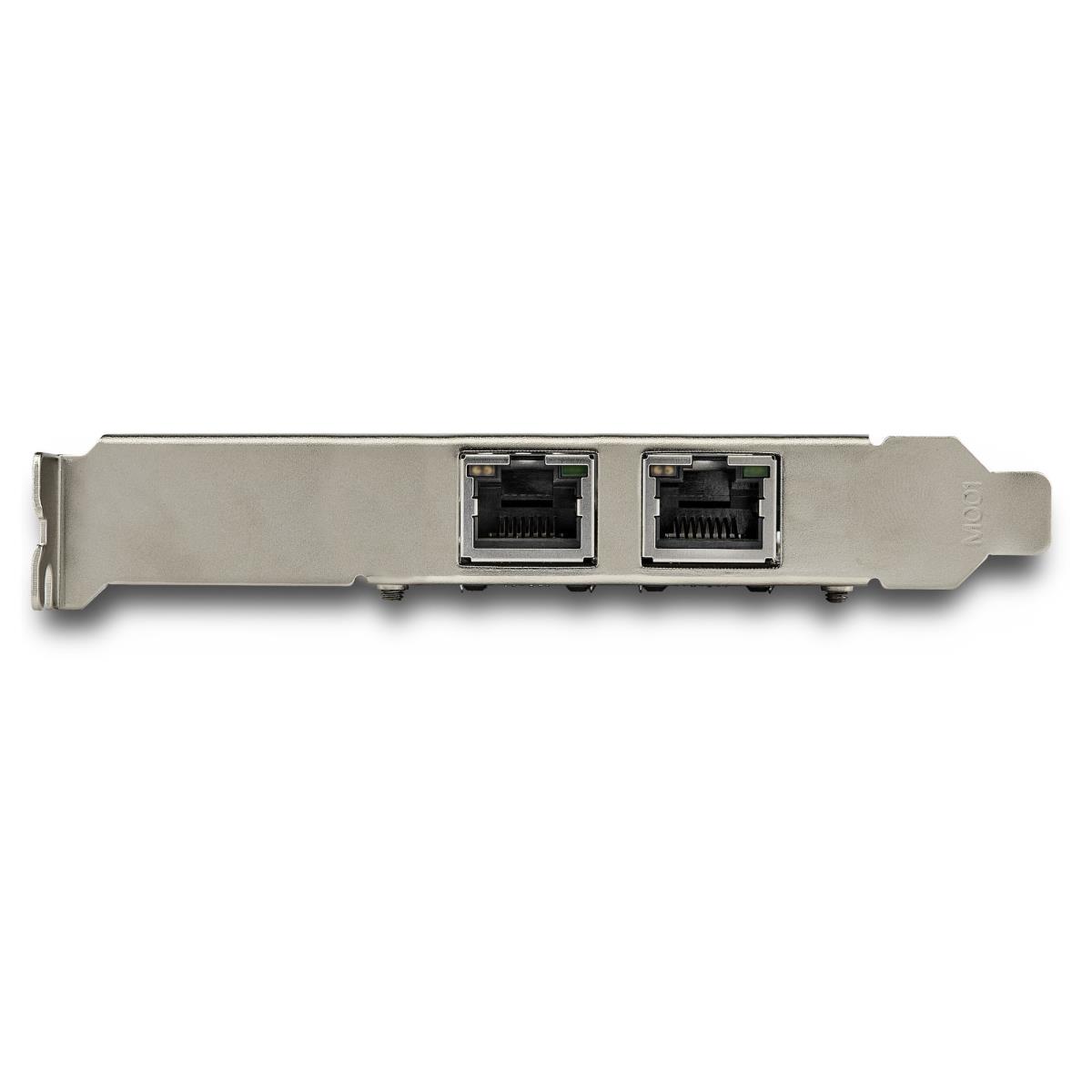

External Ports: RJ-45 Female

Humidity: 20% ~ 80% RH

Operating Temperature: 5°C to 50°C (41°F to 122°F)

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Bus Type: PCI Express

Card Type: Standard Profile (LP bracket incl.)

Chipset ID: Tehuti TN4010

Industry Standards: IEEE 802.1q (VLAN tagging)

IEEE 802.3ab (1000Base-T)

IEEE 802.3ad (Link Aggregation)

IEEE 802.3an (10GBASE-T)

IEEE 802.3u (100BASE-T)

PCI Express Rev 2.0

Interface: RJ45 (10 Gigabit Ethernet)

Ports: 2

LED Indicators: Link Speed

Link/Activity

Package Height: 20.500

Package Length: 121.000

Package Width: 159.000

Shipping (Package) Weight: 0.4 kg [0.9 lb]

Auto MDIX: Yes

Compatible Networks: 10 Gbps/5G/2.5G/1G/100 Mbps

Full Duplex Support: Yes

Jumbo Frame Support: 9K max.

Maximum Data Transfer Rate: 10 Gbps

Promiscuous Mode: Yes

PXE: No

Supported Protocols: IEEE 802.3ad (link aggregation)

Color: Black

Product Height: 20.500

Product Length: 121.000

Product Width: 159.000

Weight of Product: 390.000

OS Compatibility: Windows 7, 8, 8.1, 10

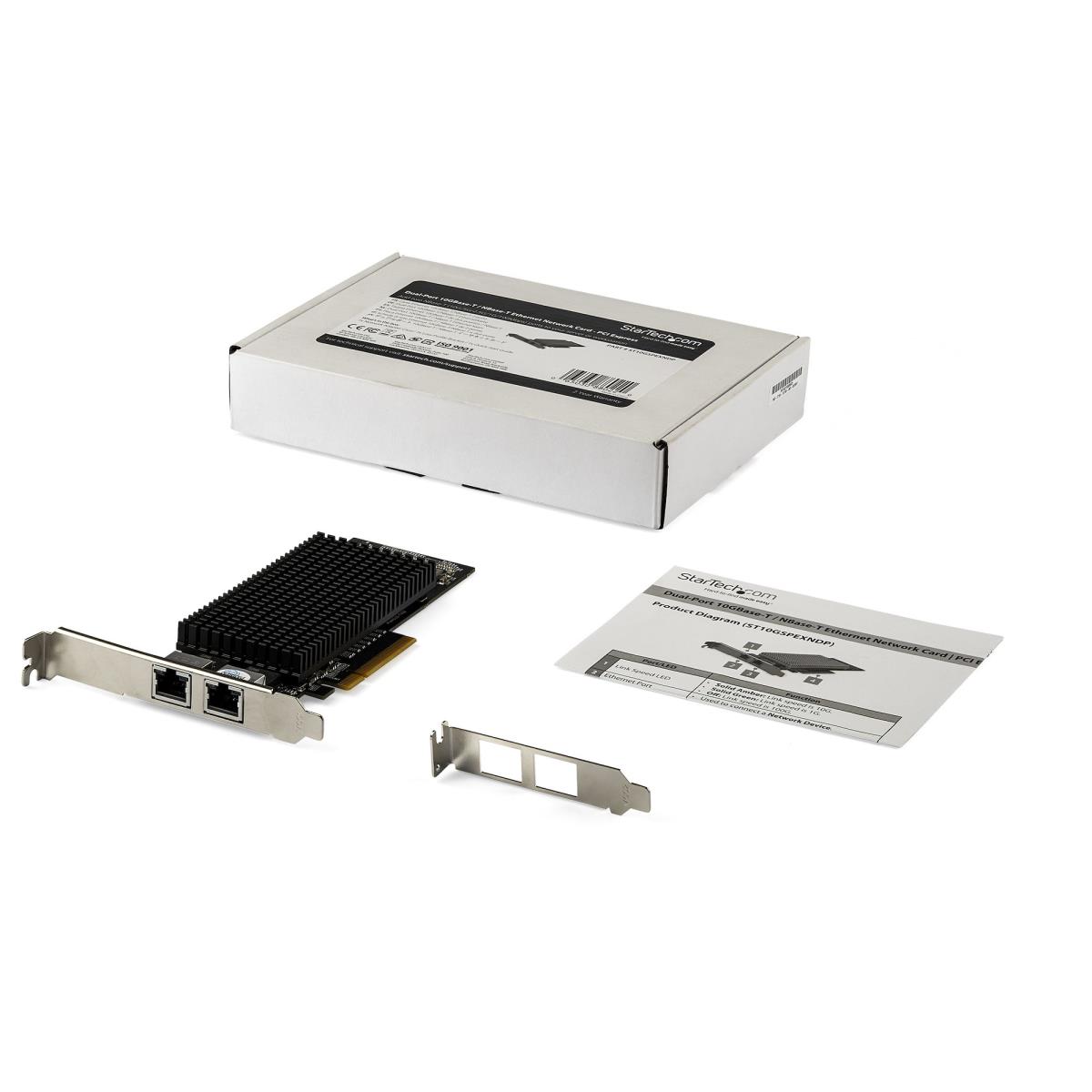

Included in Package: Low-Profile Bracket

Network Adapter Card

Quick-Start Guide
