STARTECH.COM 10303-ST STARTECH.COM EXTREME NETWORKS 10303 COMP -

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

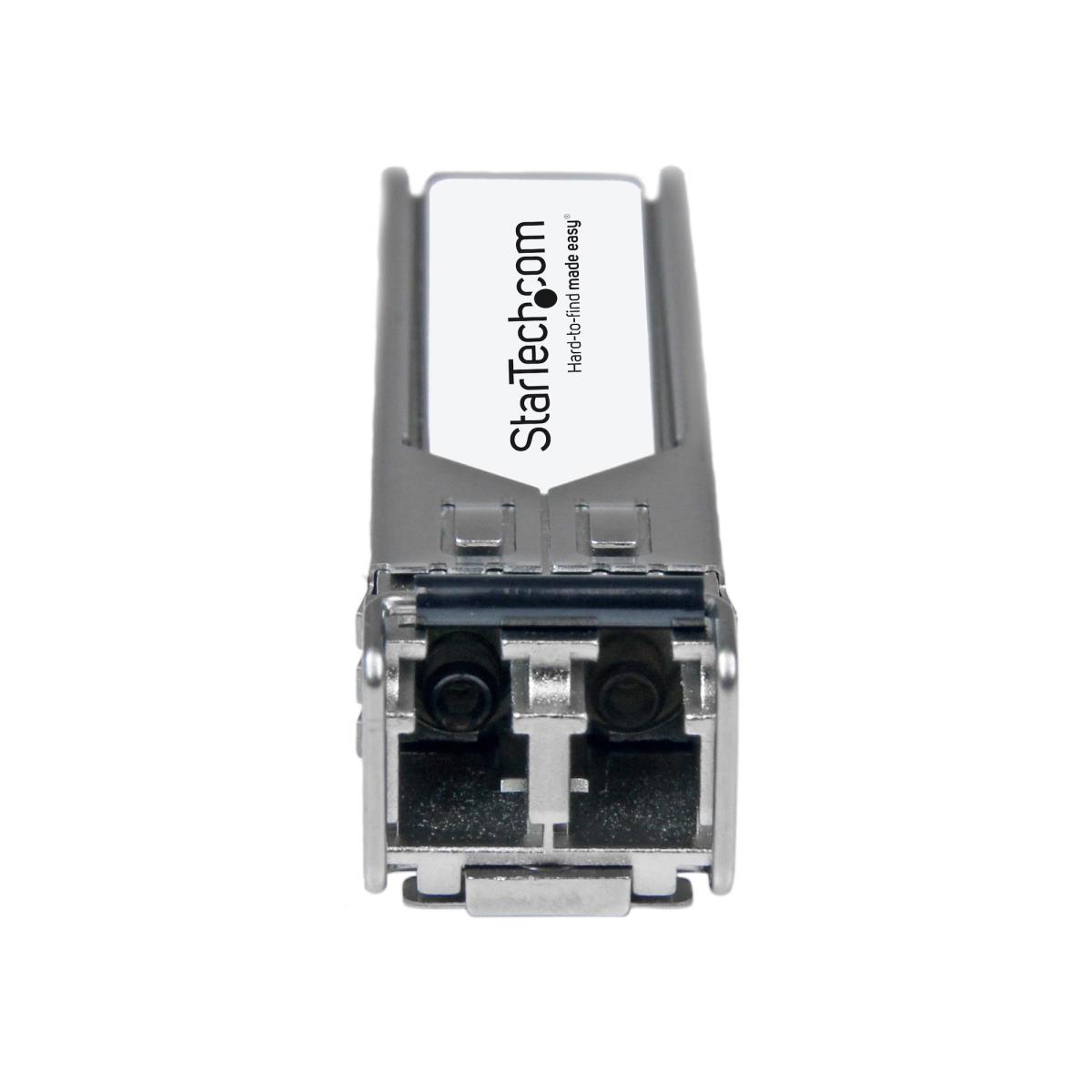

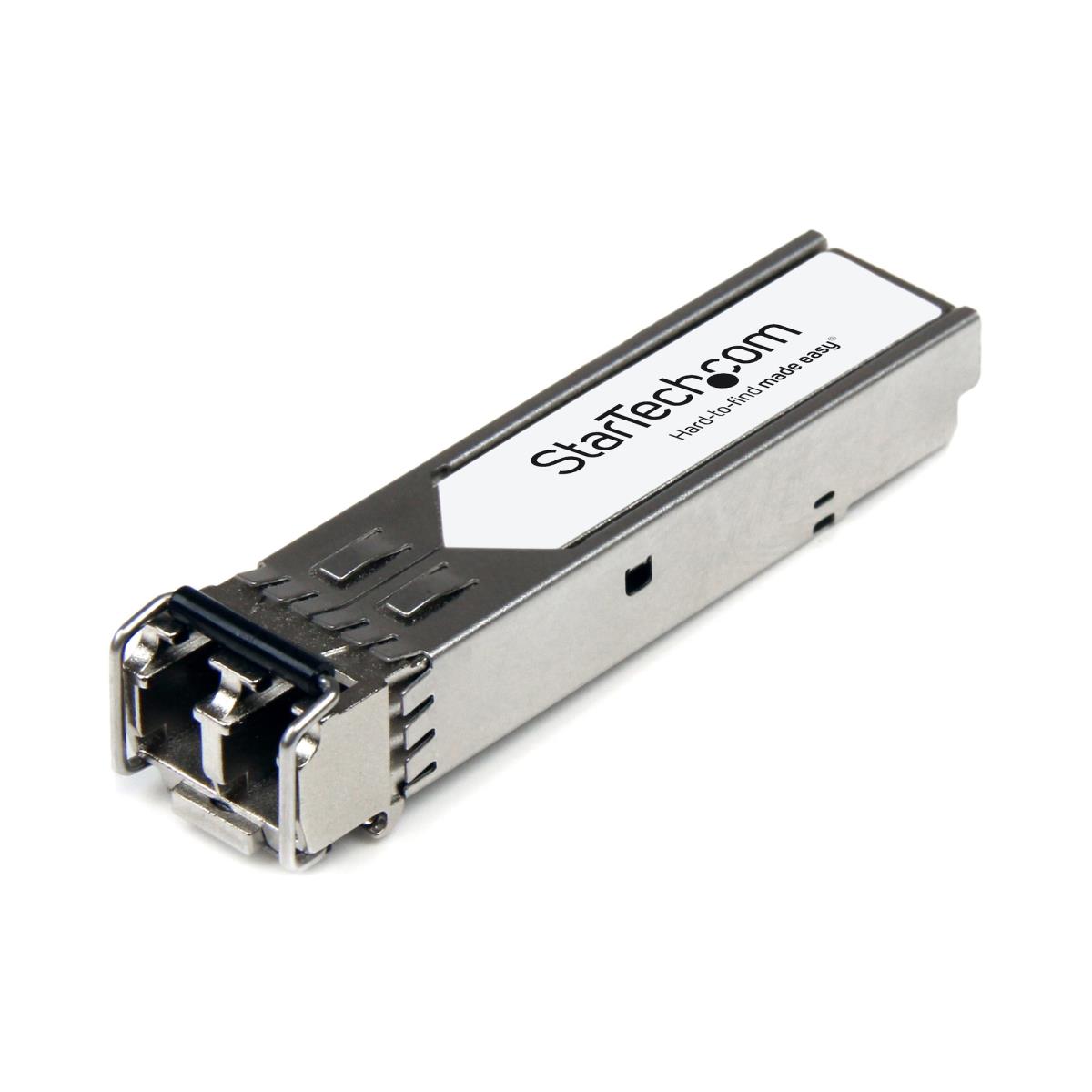

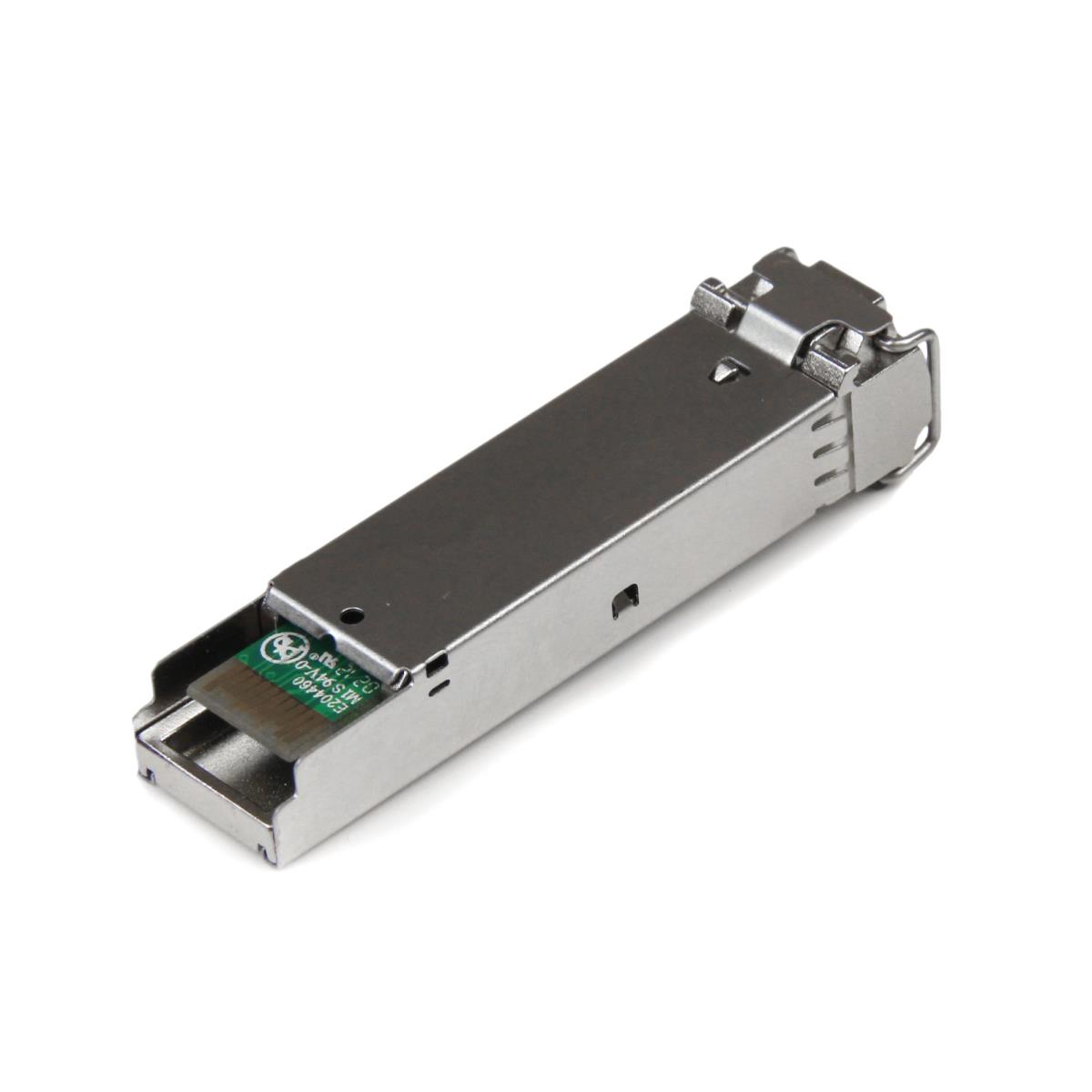

EXTREME NETWORKS 10303 COMP -

Introduction

10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty

The 10303-ST is an Extreme Networks 10303 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 200 m (656 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver typeFiber optic
Digital Diagnostics Monitoring (DDM)Yes
Fiber optic connectorLC
Maximum transfer distance200 m
Wavelength1310 nm
Duplex systemFull
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Multi-mode fiber (MMF) supportedYes
SFP transceiver standardLRM
Fiber ethernet cabling technology10GBASE
Product colourSilver
Hot-swapYes
Compatible products10303
Mean time between failures (MTBF)145858878 h
Brand compatibilityExtreme Networks
Harmonized System (HS) code85369010
Features
Product colourSilver
Hot-swapYes
Compatible products10303
Mean time between failures (MTBF)145858878 h
Brand compatibilityExtreme Networks
CertificationCE, FCC, UR, REACH
Power
Power consumption (typical)1 W
Certificates
CertificationCE, FCC, UR, REACH
Compliance certificatesRoHS
Network
SFP transceiver typeFiber optic
Fiber optic connectorLC
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Weight & dimensions
Width58.4 mm
Depth13.9 mm
Height13.7 mm
Weight21 g
Package depth115 mm
Package width90 mm
Package height31 mm
Package weight50 g
Packaging content
Quantity per pack1 pc(s)
Technical details
Package width90 mm
Package height31 mm
Hot-swapYes
Maximum transfer distance200 m
Wavelength1310 nm
Duplex systemFull
Compatible products10303
Compliance certificatesRoHS
Packaging data
Package depth115 mm
Package width90 mm
Package height31 mm
Package weight50 g
Logistics data
Quantity per pack1 pc(s)
Master (outer) case width90 mm
Master (outer) case length115 mm
Master (outer) case height31 mm
Products per master (outer) case1 pc(s)
Harmonized System (HS) code85369010
