HP 455886-B21 COMP -
Introduction
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

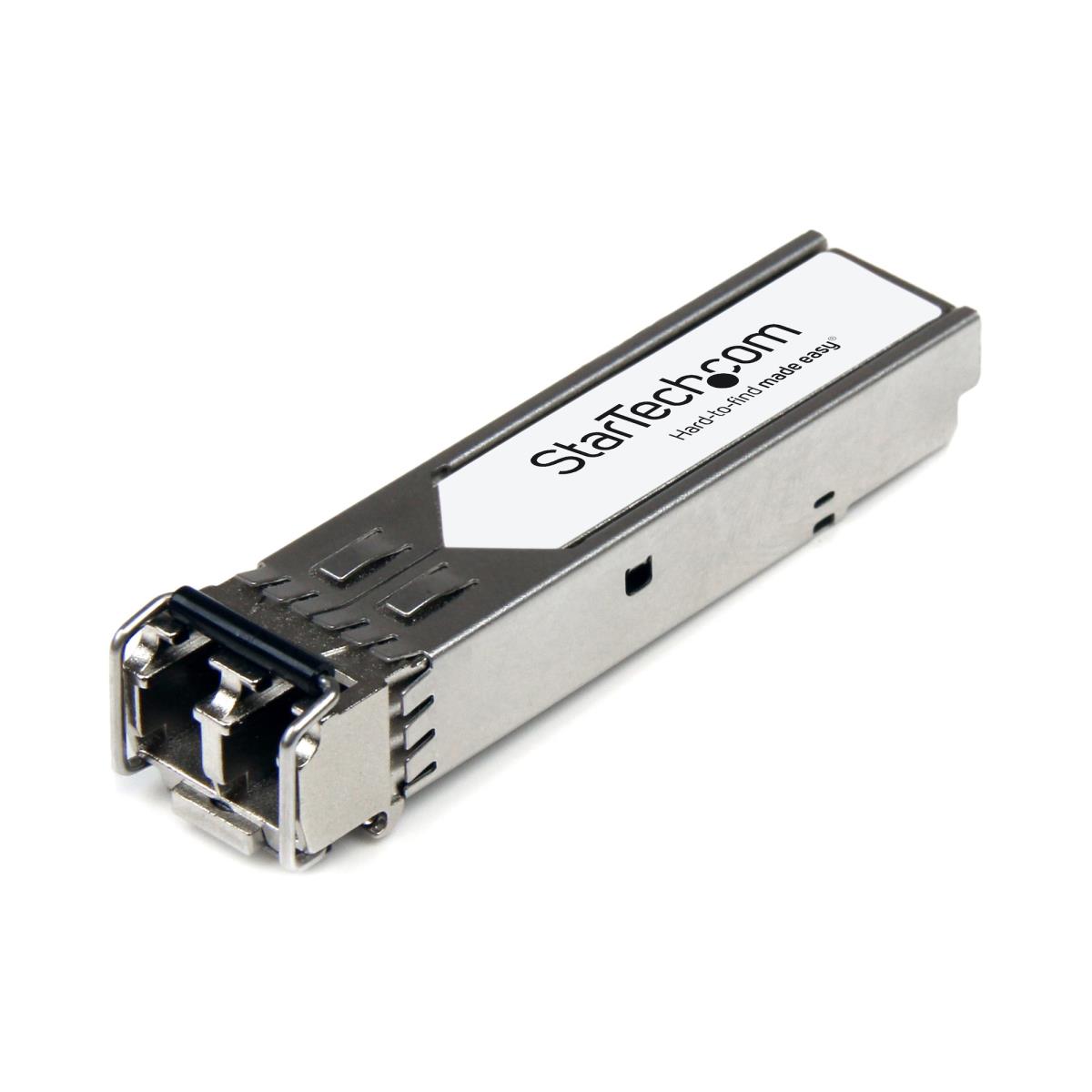

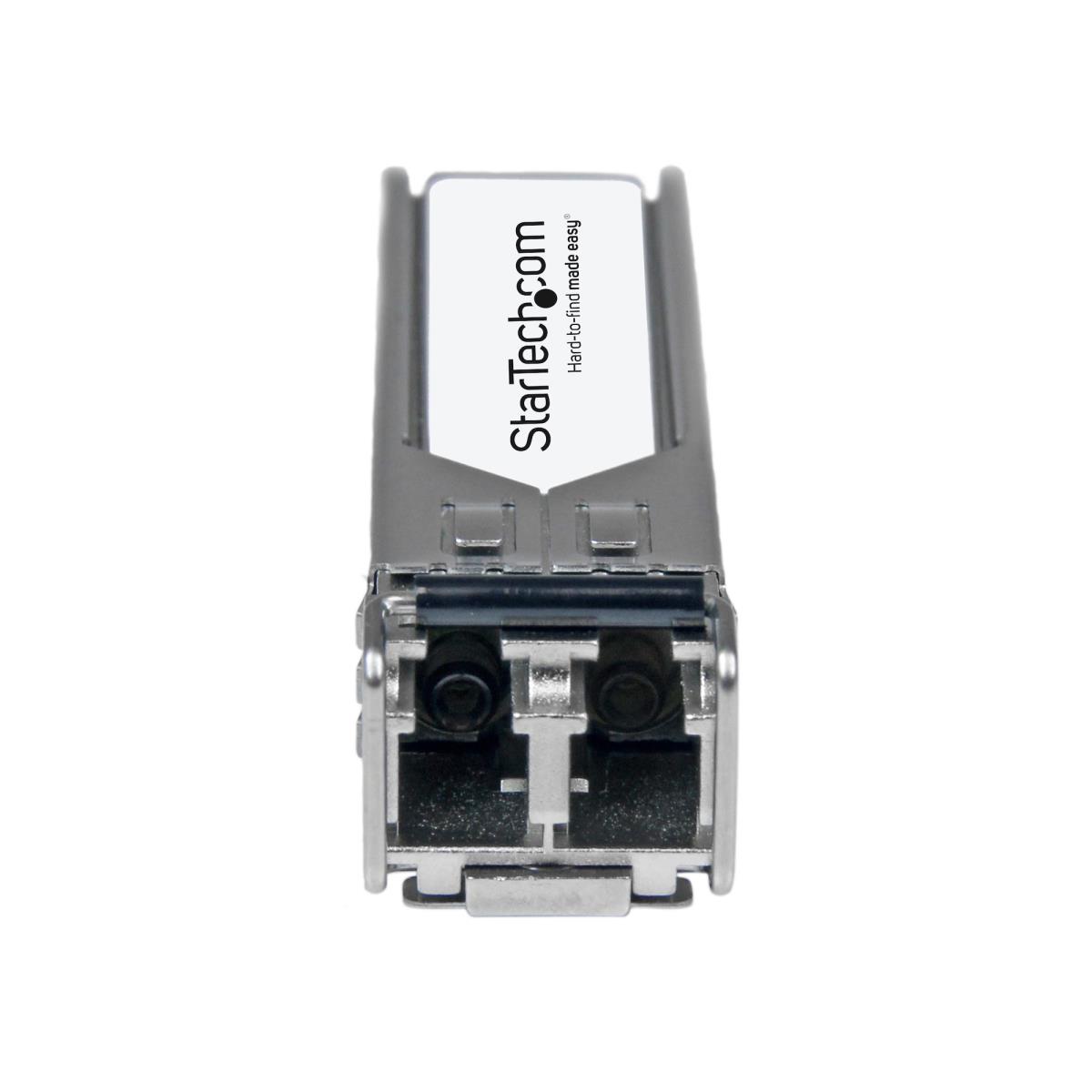

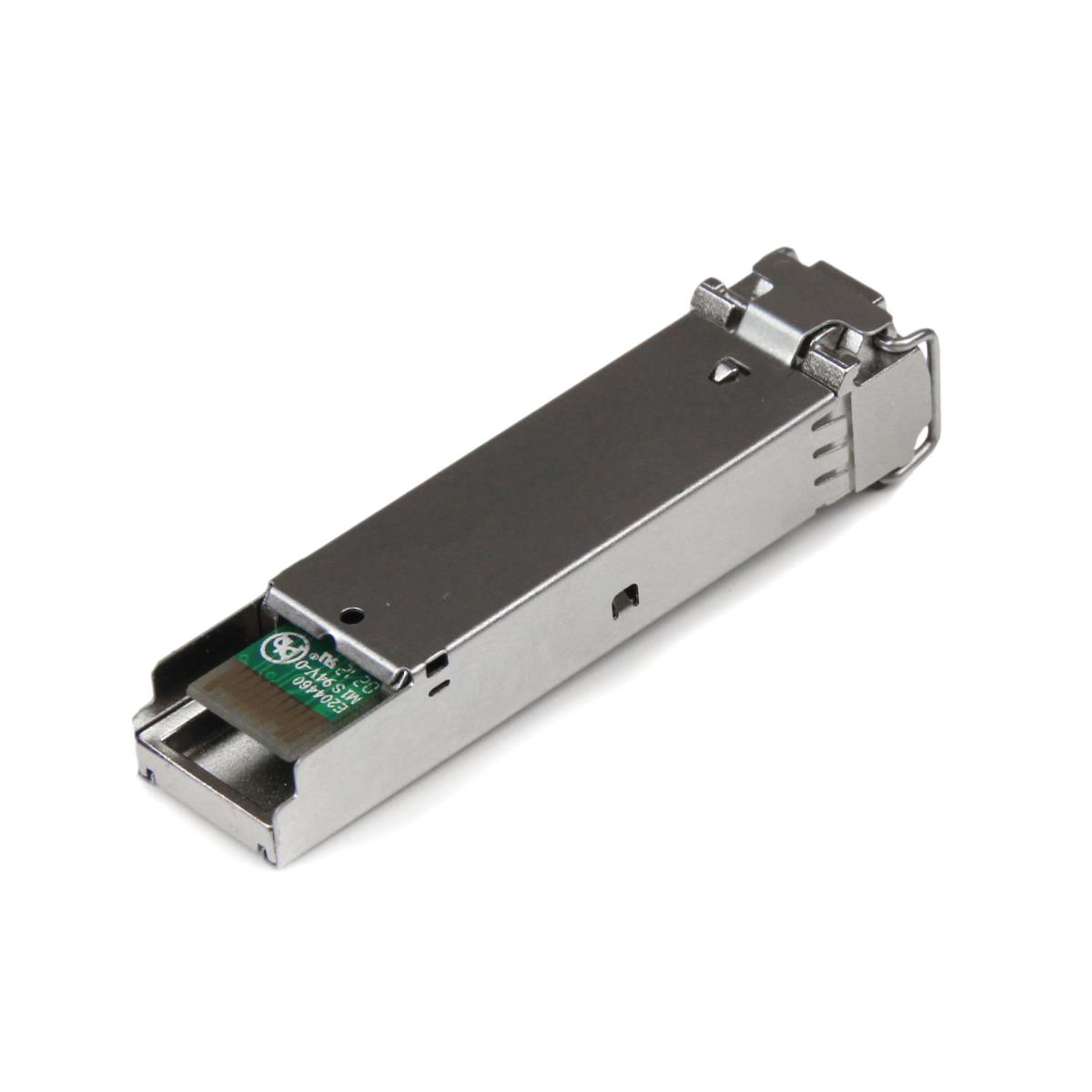

The 455886-B21-ST is a HPE 455886-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,386,624,697 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | LR |
| Fiber ethernet cabling technology | 10GBASE |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | 455886-B21 |
| Mean time between failures (MTBF) | 1386624697 h |
| Brand compatibility | HP |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | 455886-B21 |
| Mean time between failures (MTBF) | 1386624697 h |
| Brand compatibility | HP |
| Power | |
| Power consumption (typical) | 1.3 W |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 13.7 mm |
| Weight | 21 g |
| Package depth | 92 mm |
| Package width | 113 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 113 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Compatible products | 455886-B21 |
| Packaging data | |
| Package depth | 92 mm |
| Package width | 113 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 113 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 33 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
