SFP+ Transceiver 10GBASE-LR Lite

Introduction

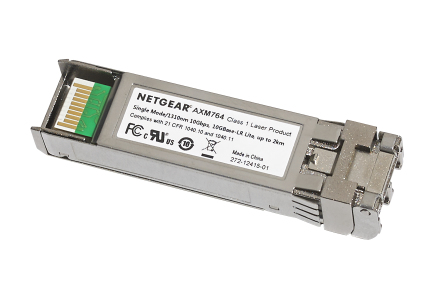

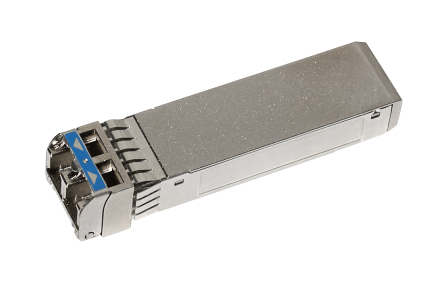

AXM764 is NETGEAR 10GBASE-LR “Lite” SFP+ Transceiver, a new class of SMF 10G transmitter with LC duplex connector. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km (1.24 mile) over standard 9/125µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for standard 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Auto MDI/MDI-X	Yes
Maximum transfer distance	2000 m
Fiber cable diameters supported (core/cladding)	9/125 µm
Cabling technology	10GBASE-LR
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR
Hot-Plug support	Yes
Compatible products	NETGEAR M5300, M6100, M7100, M7300
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Compatible products	NETGEAR M5300, M6100, M7100, M7300
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Cabling technology	10GBASE-LR
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Packaging content
Quantity per pack	1 pc(s)
Technical details
Hot-Plug support	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	2000 m
Fiber cable diameters supported (core/cladding)	9/125 µm
Compatible products	NETGEAR M5300, M6100, M7100, M7300
Cabling technology	10GBASE-LR
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
