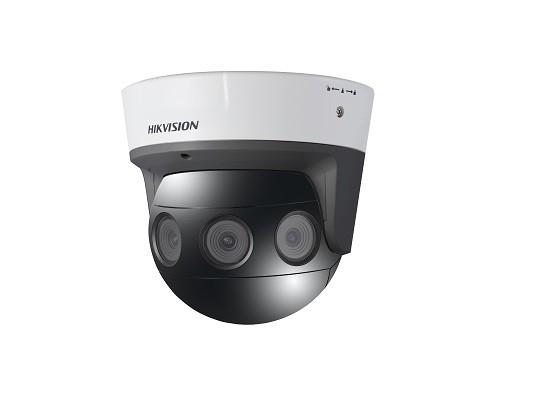

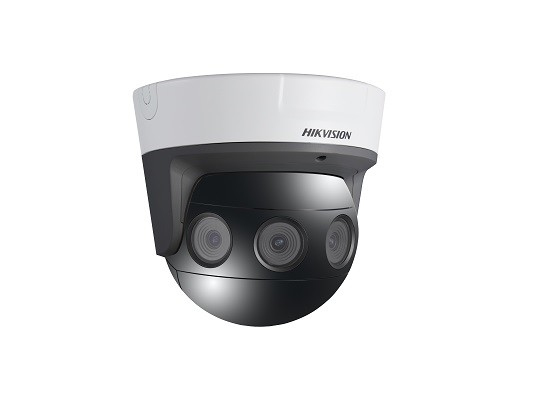

Part No:DS-2CD6924F-IS(4MM)
Stock:3 In Stock
EAN Code:0842571112337
Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Design | |
IK code | IK10 |
Form factor | Dome |
Product colour | Black, White |
Mounting type | Ceiling/wall |
International Protection (IP) code | IP67 |
Camera | |
Minimum illumination | 0.0008 lx |
Viewing angle, horizontal | 180° |
Viewing angle, vertical | 86.7° |
Tilt angle range | 0 - 90° |
Pan range | 0 - 355° |
Camera shutter speed | 1/25 - 1/100000 s |
Camera pan control | Yes |
Camera tilt control | Yes |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Number of sensors | 1 |
Lens system | |
Number of lenses | 4 |
Fixed focal length | 4 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 29 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video | |
Noise reduction | Yes |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Privacy masking | Yes |
Gain control type | Auto |
Region of Interest (ROI) encoding | Yes |
Highlight Compensation (HLC) | Yes |
Digital Wide Dynamic Range (DWDR) | Yes |
Bit rate | 32 Kbps - 16 Mbps |
Back Light Compensation (BLC) | Yes |
Noise reduction technology | 3D noise reduction |
Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
Maximum resolution | 4096 x 1800 pixels |
Frame rate | 30 fps |
Video streaming | Yes |
Total megapixels | 8 MP |
Audio | |
Voice codecs | G.711,G.722.1,G.726,MP2L2 |
Audio input channels | 1 |
Audio output channels | 1 channels |
Sample rate | 48 kHz |
Audio formats supported | PCM |
Network | |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.1x,IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Number of users | 32 user(s) |
Ethernet LAN | Yes |
Wi-Fi | No |
Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Storage | |
Maximum memory card size | 128 GB |
Card reader integrated | Yes |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Ports & interfaces | |
RS-485 ports | 1 |
Microphone in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security | |
Intelligent Video Surveillance (IVS) system features | Face detection |
IP address filtering | Yes |
Password protection | Yes |
Mirror | Yes |
Heartbeat | Yes |
Digital watermark | Yes |
Anti-flicker | Yes |
Management features | |
Web-based management | Yes |
Reset button | Yes |
Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection |
Power | |
Power source type | DC, PoE |
Power consumption (max) | 18 W |
Power consumption (Power over Ethernet (PoE)) | 25 W |
DC output voltage | 12 |
DC output current | 1.5 A |
Operational conditions | |
Operating temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Width | 190 mm |
Depth | 207 mm |
Height | 208 mm |
Weight | 3.5 kg |
Packaging content | |
Number of cameras | 1 |
Other features | |
Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
