EU Product - Tapo D235 Video Doorbell Camera
Introduction
Smart.Secure.Easy.
Always Know Who’s There
2K 5MP Head-to-Toe 180° DFOV
Details matter, and with 2K 5MP clarity, D235 exceeds traditional Full HD resolution with finer details and incredible clarity. Experience the full picture with our 180° ultra-wide field of view, capturing every detail from head to toe in a single sweeping glance.
Flexible Wedges, Flexible Views
Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.
Local and Cloud Storage
Save recorded videos on the microSD Card* (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).

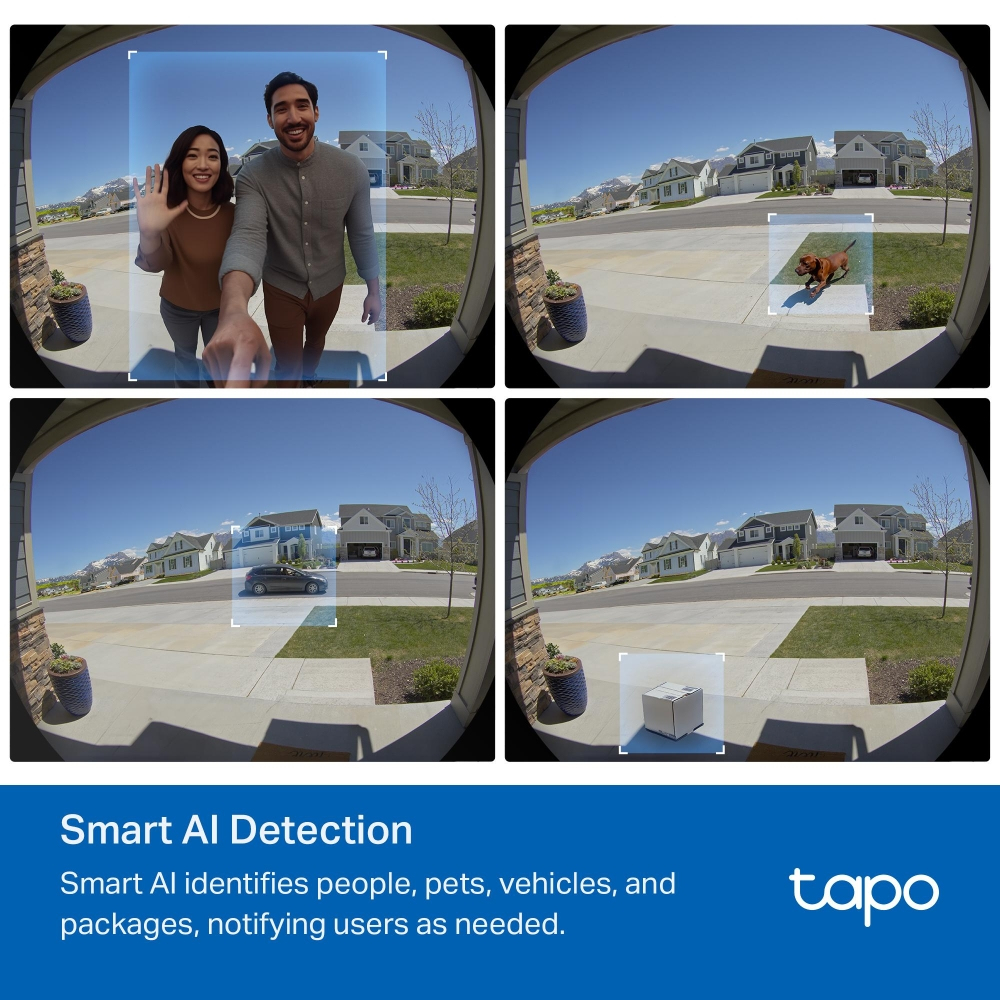

Smart AI Detection and Notification
Smart AI identifies people, pets, vehicles, and packages, notifying users as needed.
Specifications
| Features | |
|---|---|
| Built-in camera | Yes |
| LED type | IR |
| Night-light | Yes |
| Product colour | Black, White |
| International Protection (IP) code | IP66 |
| Motion detection supported | Yes |
| Detection angle | 130° |
| Smartphone/tablet remote support | Yes |
| Works with the Google Assistant | Yes |
| Works with Amazon Alexa | Yes |
| Mounting type | Wall |
| Package detection | Yes |
| Built-in spotlight | Yes |
| Human detection | Yes |

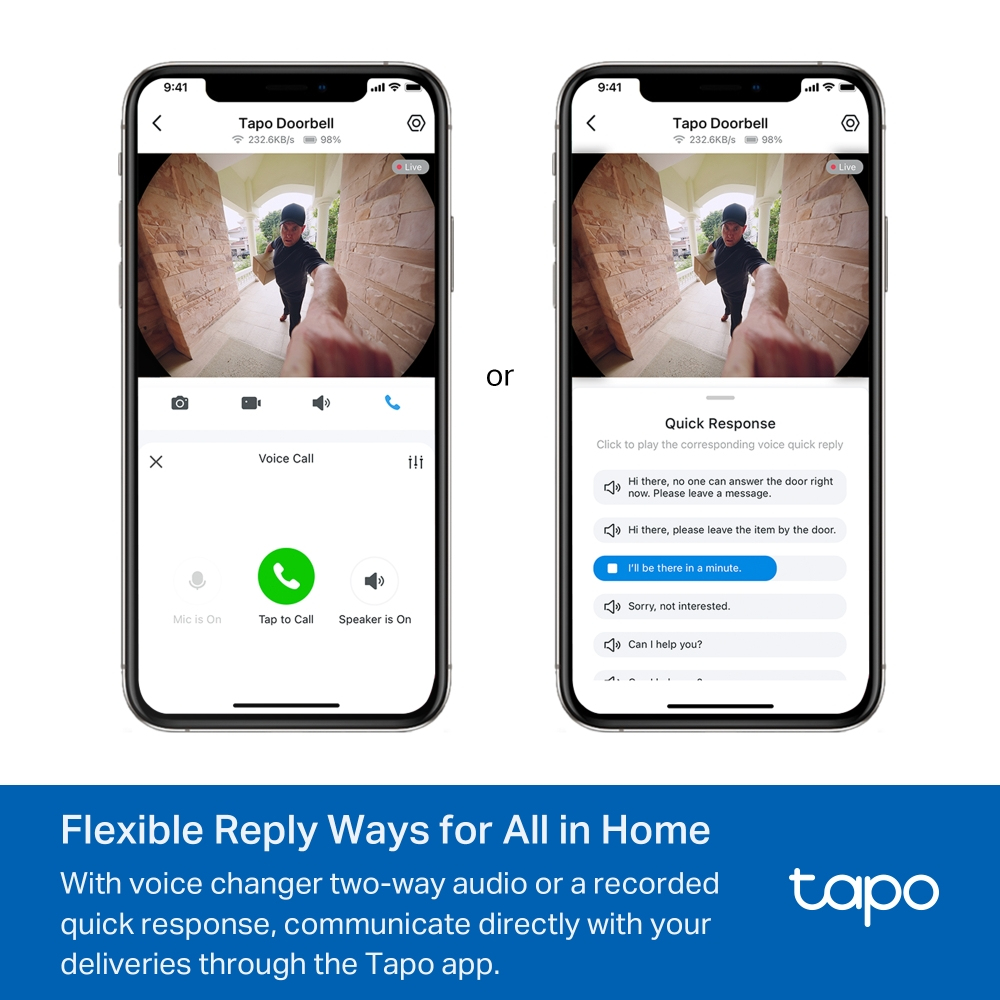

| Audio system | Two-Way |
| Web-based management | Yes |
| Noise reduction | Yes |
| Cloud-managed | Yes |
| Cloud services supported | Tapo Care Cloud Storage Services |
| Performance | |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Video formats supported | H.264 |
| Camera | |
| Built-in camera | Yes |
| Supported video modes | 1920p |
| Night vision | Yes |
| Megapixel (approx.) | 5 MP |
| Maximum video resolution | 2560 x 1920 pixels |
| Maximum frame rate | 15 fps |
| Image sensor size | 1/2.7" |
| Sensor type | CMOS |
| Vertical field of view | 140.1° |
| Horizontal field of view | 180° |
| Night vision distance | 10 m |
| Fixed focal length | 1.18 mm |
| Maximum aperture number | 1.8 |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile operating systems supported | Android, iOS |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA, WPA2-PSK |
| Power | |

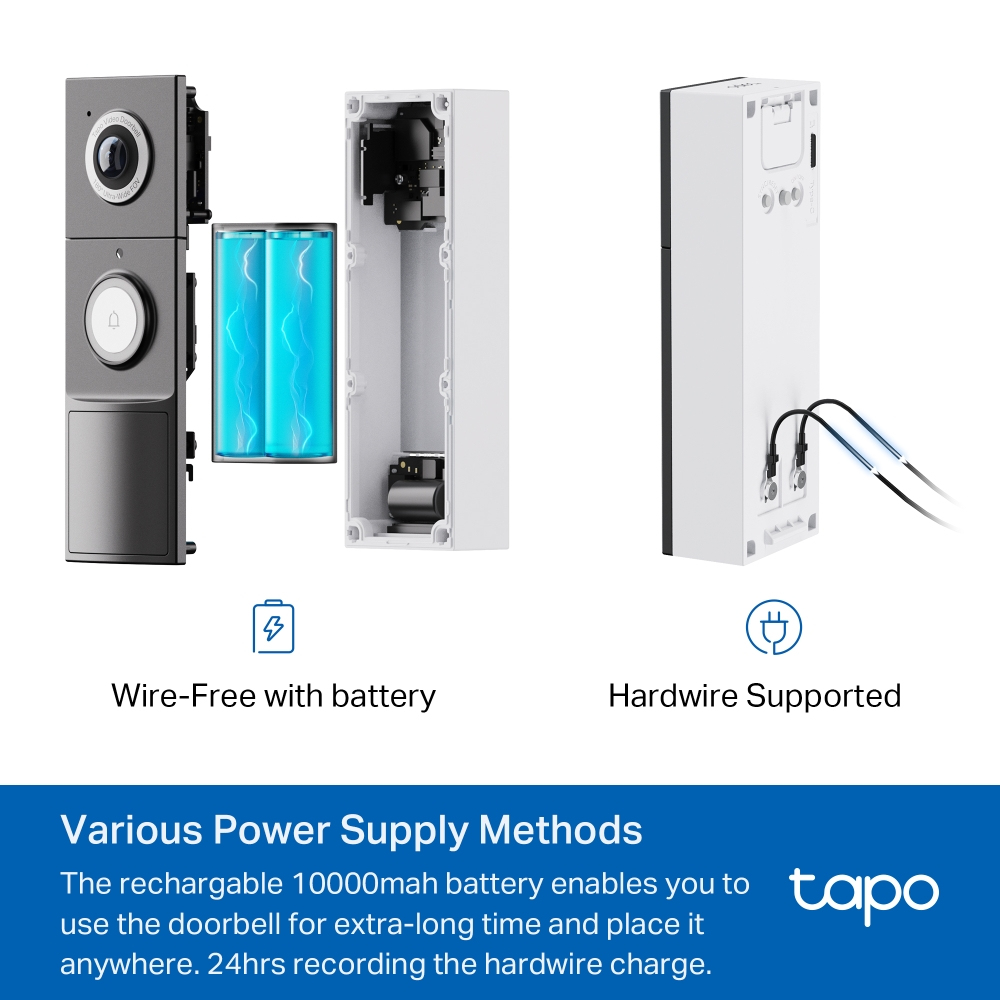

| Battery capacity | 10000 mAh |
| Battery type | Built-in battery |
| Input voltage | 100 - 240 V |
| Power source type | DC, Battery |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Built-in camera | Yes |
| Supported video modes | 1920p |
| Night vision | Yes |
| LED type | IR |
| Night-light | Yes |
| Product colour | Black, White |
| Weight & dimensions | |
| Package width | 155 mm |
| Package weight | 690 g |
| Package height | 106.5 mm |
| Package depth | 185 mm |
| Width | 50 mm |
| Depth | 38.4 mm |
| Height | 150 mm |
| Weight | 490 g |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Screws included | Yes |
| Quick start guide | Yes |

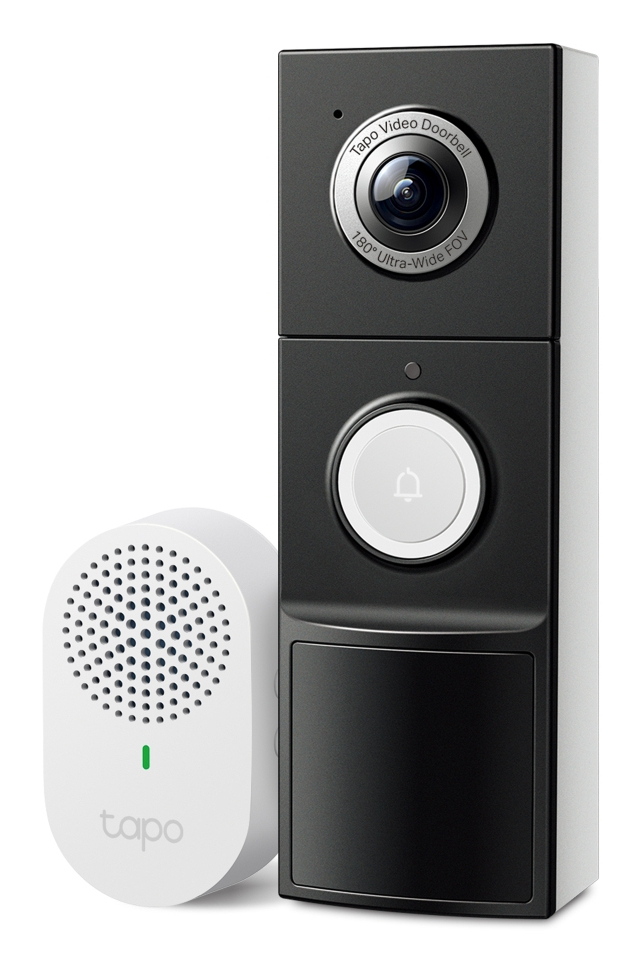

| Packaging content | Tapo Video Doorbell × 1 Tapo Chime × 1 Mounting Template × 1 Mounting Bracket × 1 Vertical Mounting Wedge× 1 Horizontal Mounting Wedge × 1 USB Adapter Cable × 1 Jumper for Existing Chime × 1 Extension Wires × 2 Mounting Screws and Anchors × 3 Hardwire Installation Screws × 2 Doorbell Detaching Pin × 1 Mounting Wedge Screws × 5 3M Adhesive × 1 Foam Pad × 1 Wire Nuts × 2 Quick Start Guide |
| Battery | |
| Battery capacity | 10000 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Logistics data | |
| Country of origin | China |
| Customs product code (TARIC) | 8517692000 |
