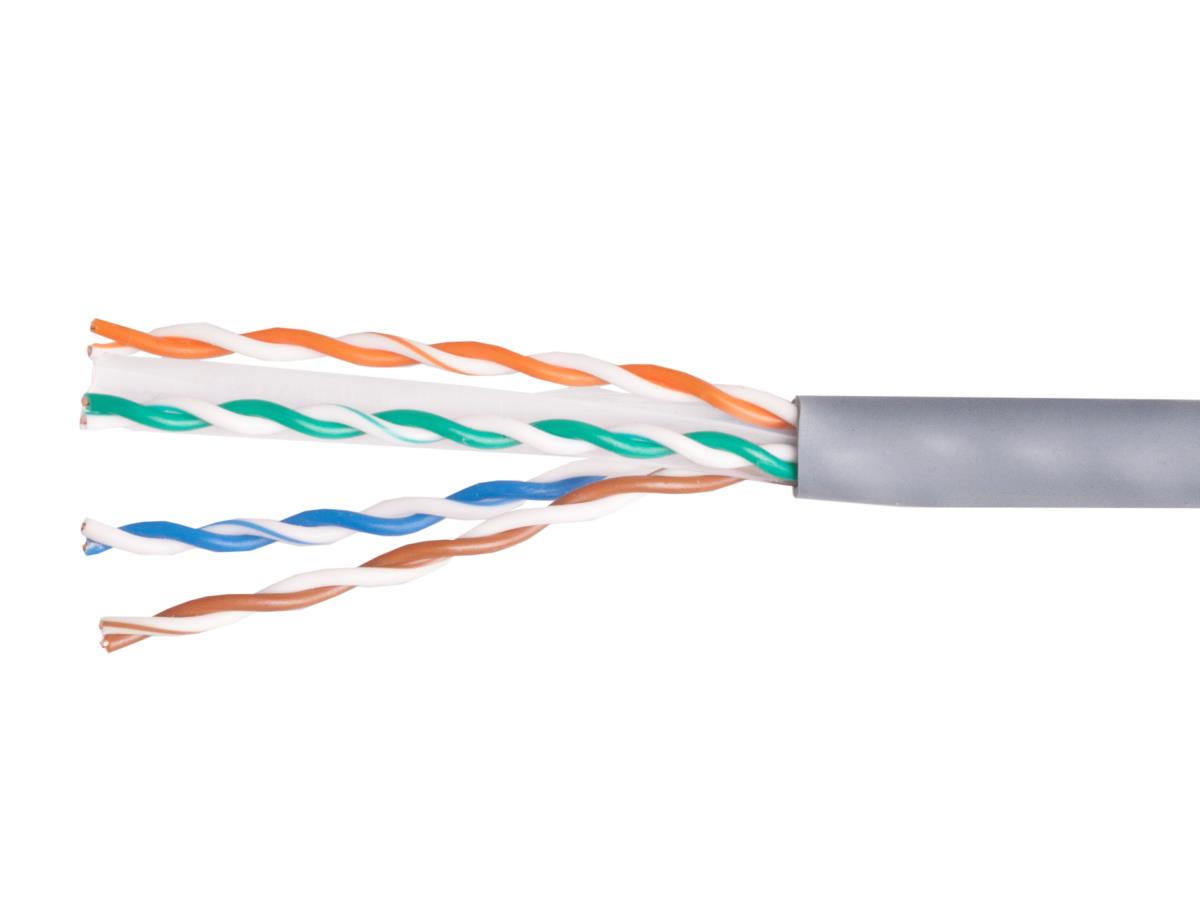

EU Product - Instal.Kab Cat6 U/UTP ECA 100.00m grau LSZH
Introduction
The equip® Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards. The solid installation cable is aimed to offer sturdy wide-ranged cable deployments, including 1000BASE-T Gigabit Ethernet and 100BASE-TX Fast Ethernet.
Specifications
| Technical details | |
|---|---|
| Product colour | Grey |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 100 m |
| Insulation outer diameter | 1.035 mm |
| Jacket thickness | 6.2 mm |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | CPR |
| Features | |
| Product colour | Grey |
| Conductor material | Copper |
| AWG wire size | 23 |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Certification | CPR |
| Cable length | 100 m |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | No |
| Connector 1 gender | No |
| Weight & dimensions | |
| Width | 6.2 mm |
| Depth | 100000 mm |
| Height | 6.2 mm |
| Weight | 3.69 kg |
| Insulation outer diameter | 1.035 mm |
| Jacket thickness | 6.2 mm |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 130 mm |
| Package height | 270 mm |
| Package weight | 3.7 kg |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Insulation outer diameter | 1.035 mm |
