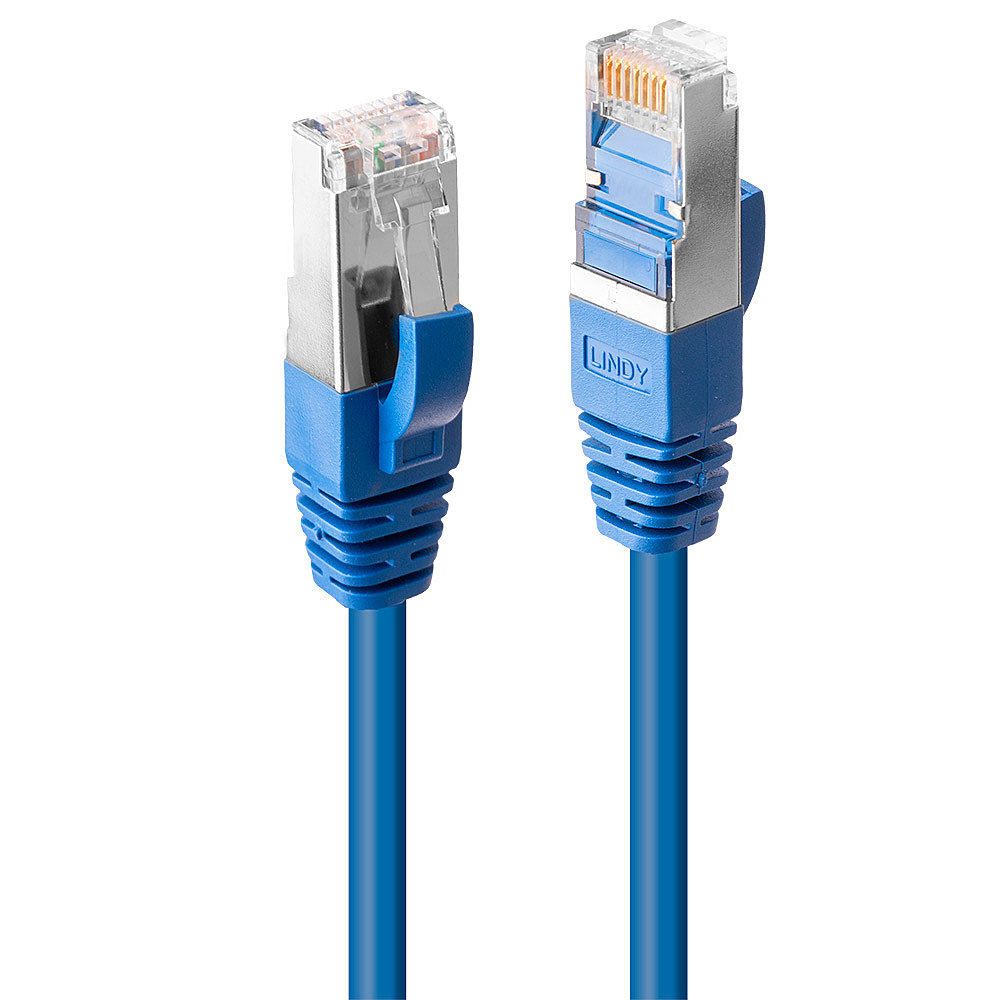

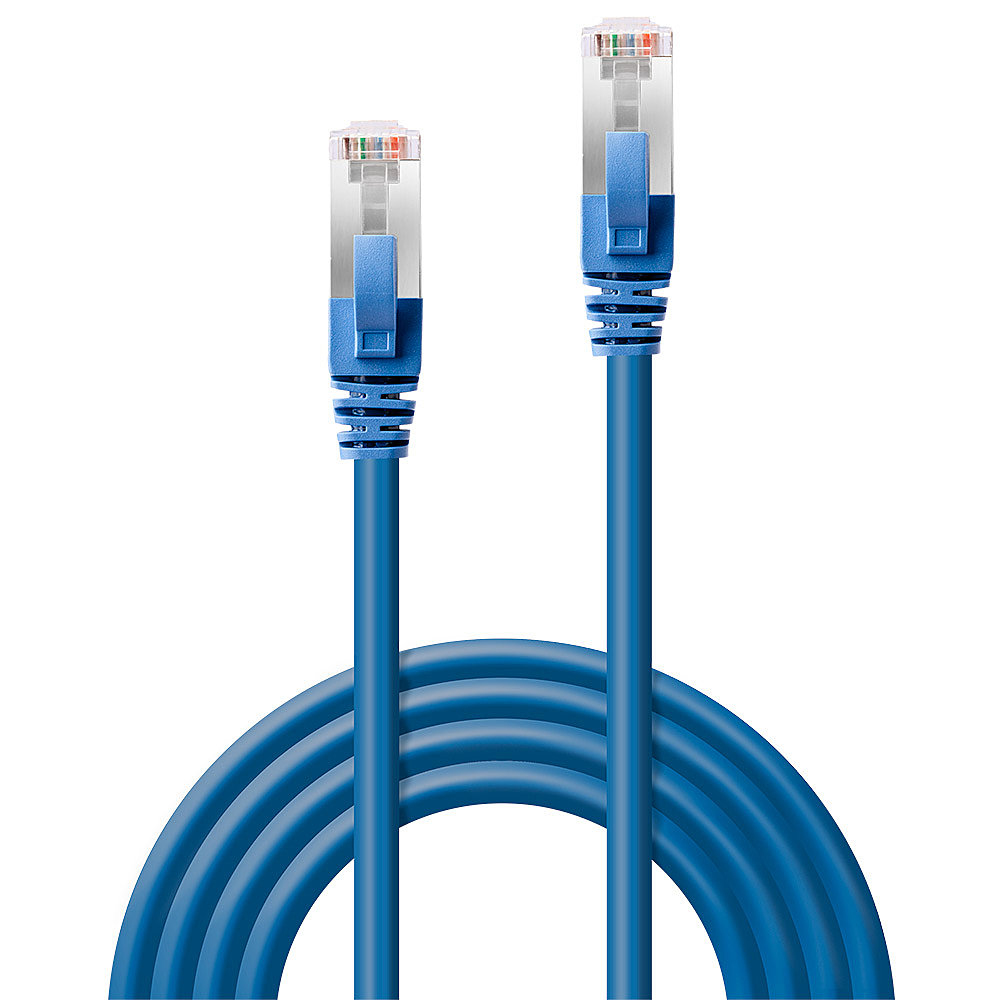

EU Product - Patchkabel Cat6 SSTP / S/FTP PIMF blau 2.00m
Introduction
Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP).

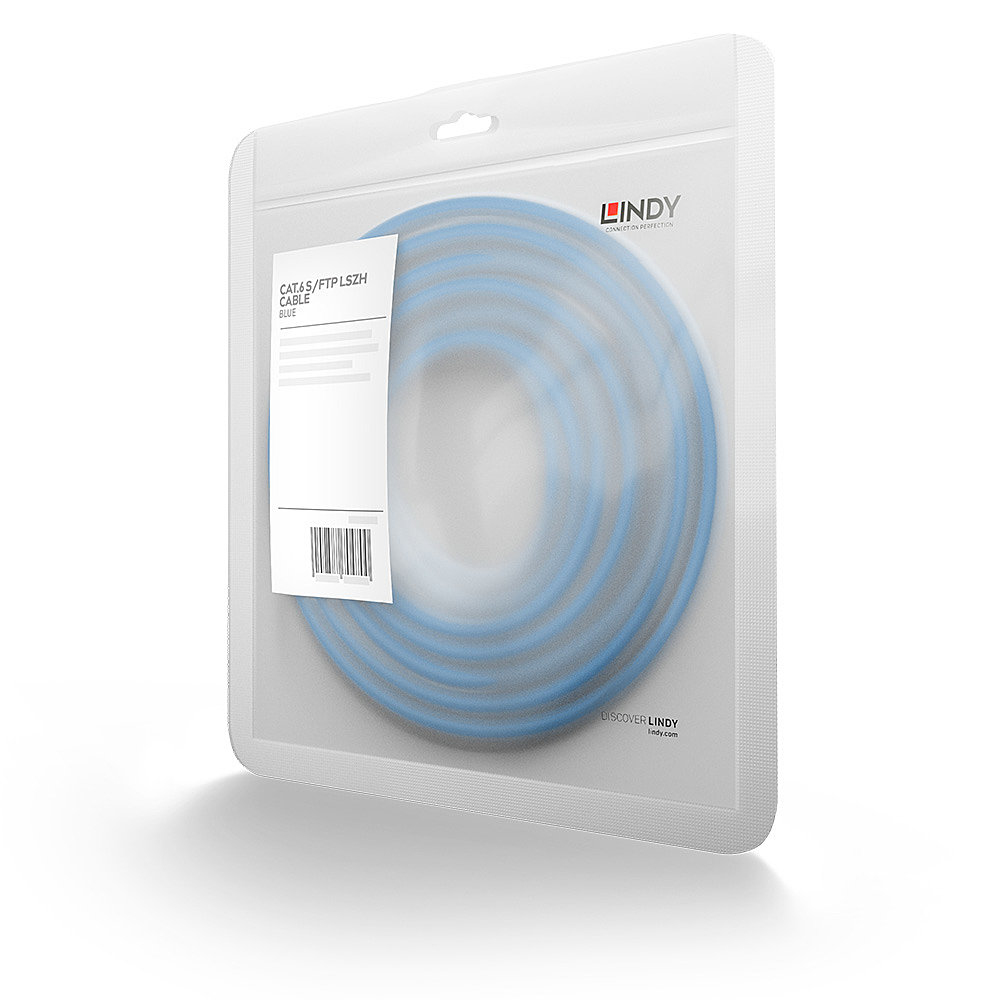

Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The 100% Component test slip included in each polybag ensures flawless compatibility between devices, each component of the cable is individually tested helping to eliminate problems such as insertion loss, return loss and crosstalk.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m
Available colours: Black, Blue, Gray, Red.
Specifications
| Features | |
|---|---|
| Product colour | Blue |
| Connector shielding | Yes |
| Connector shield material | Aluminium/Polyester |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 26 |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 2 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 1.86 cm |
| Certification | RoHS, REACH, UL |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating temperature (T-T) | -25 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Outer diameter | 6.2 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Product colour | Blue |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 2 m |
| Other features | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
