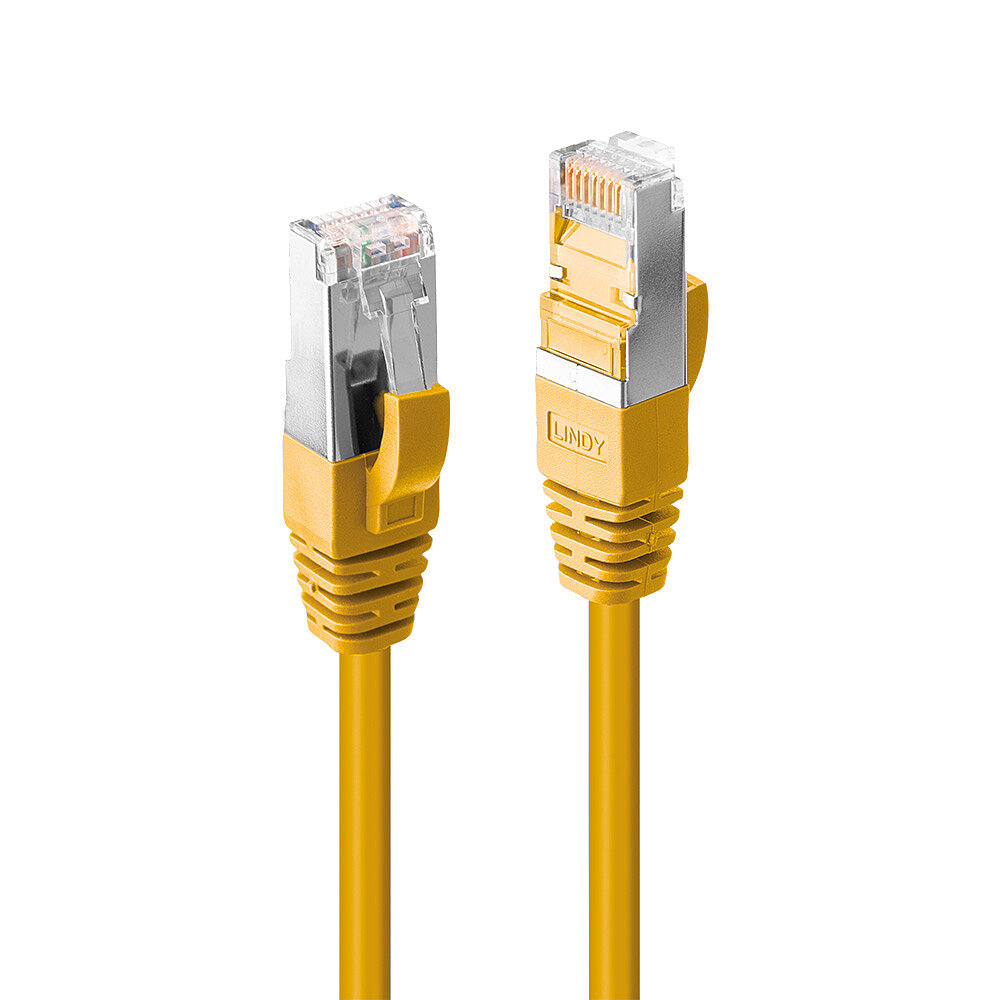

EU Product - Patchkabel Cat6 S/FTP LSZH Gelb 0.50m
Introduction
Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Specifications
| Technical details | |
|---|---|
| Product colour | Yellow |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 0.5 m |
| Sustainability certificates | UL ECOLOGO |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS |
| Features | |
| Product colour | Yellow |
| Conductor material | Copper |
| Frequency | 250 MHz |
| AWG wire size | 26 |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 0.5 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector housing material | Polycarbonate (PC) |
| Bend radius (min) | 1.86 cm |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating temperature (T-T) | -25 - 60 °C |
| Weight & dimensions | |
| Outer diameter | 6.2 mm |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Package type | Polybag |
