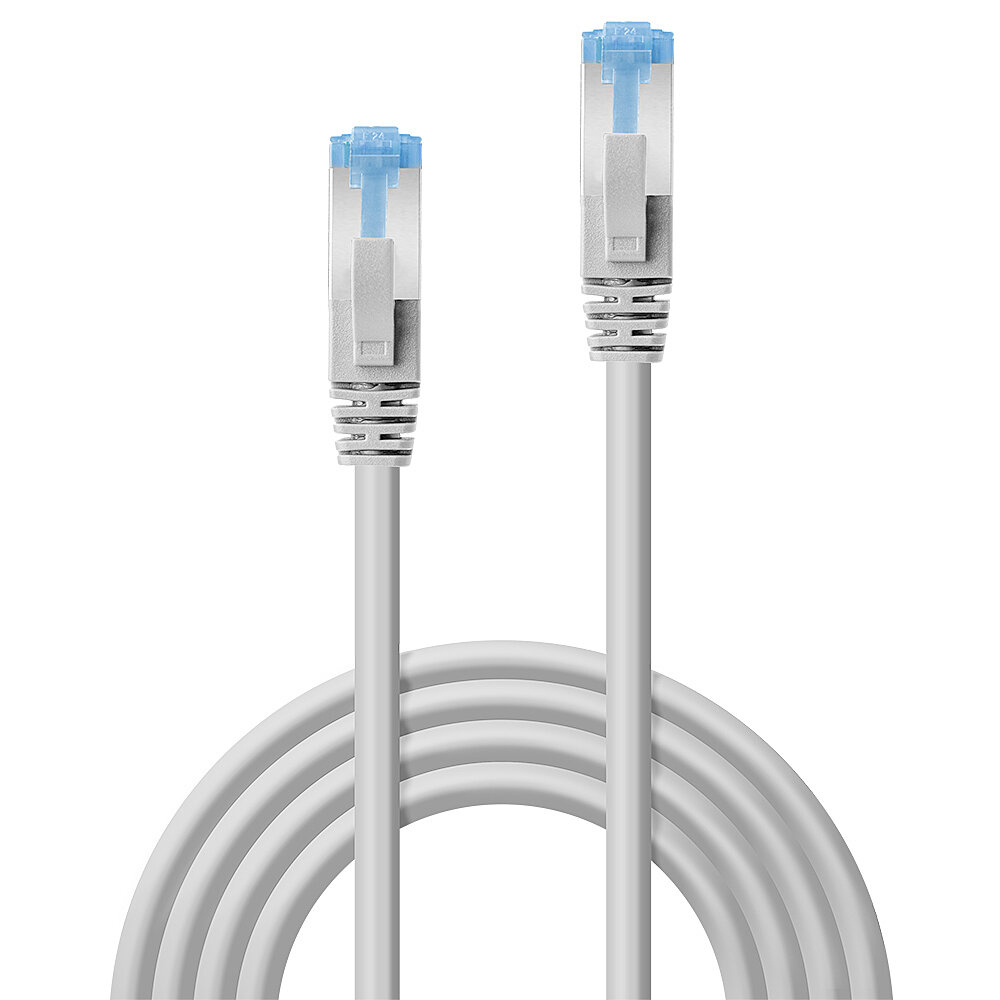

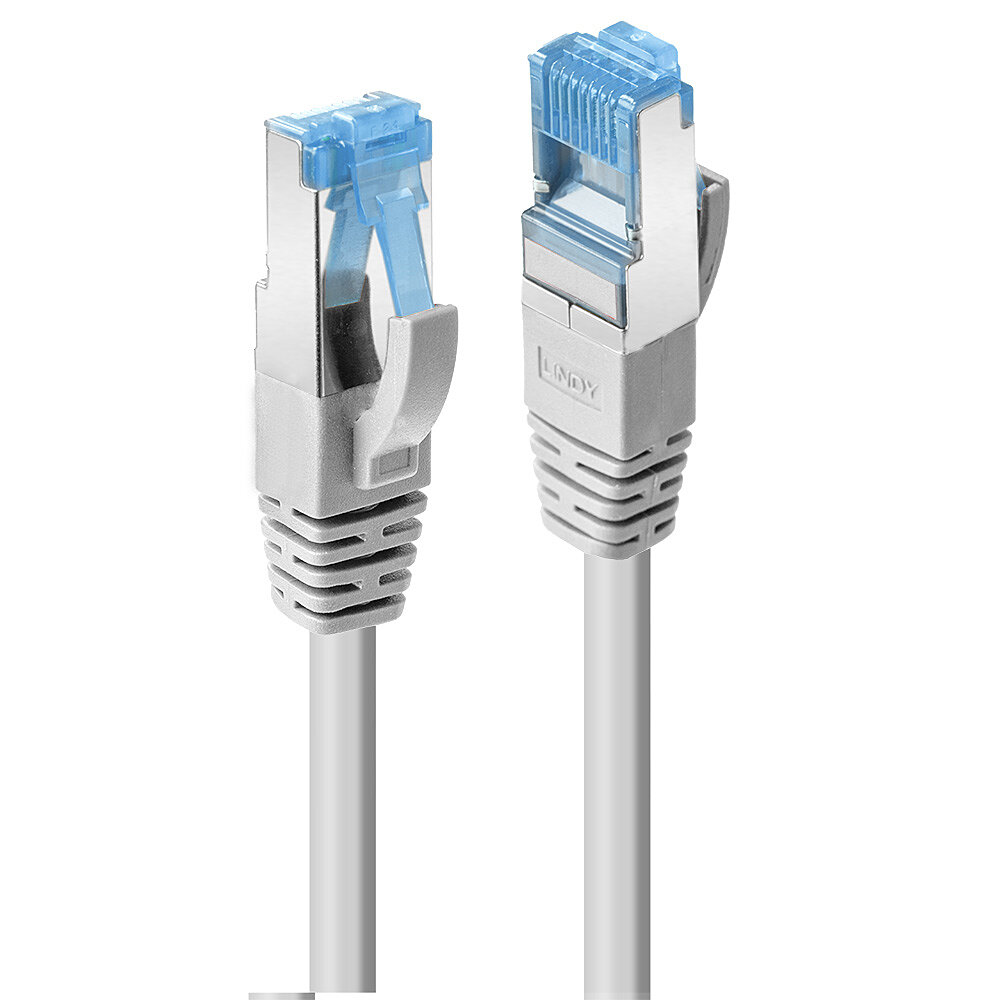

EU Product - Patchkabel Cat6 S/FTP LSZH Grau 70.00m
Introduction
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 50m, 70m, 100m.
Available colours: Black, Blue, Grey, Red, White
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Snagless cable boot | Yes |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 27 |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable class | Ea |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10GBase-T |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 70 m |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 7.2 cm |
| Nominal attenuation | 49.3dB/100m @ 500MHz |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Certification | RoHS, REACH, UL |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Compliance certificates | CE, REACH, RoHS |
| Weight & dimensions | |
| Outer diameter | 6 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 11.6 mm |
| Package depth | 21.5 mm |
| Package height | 8.3 mm |

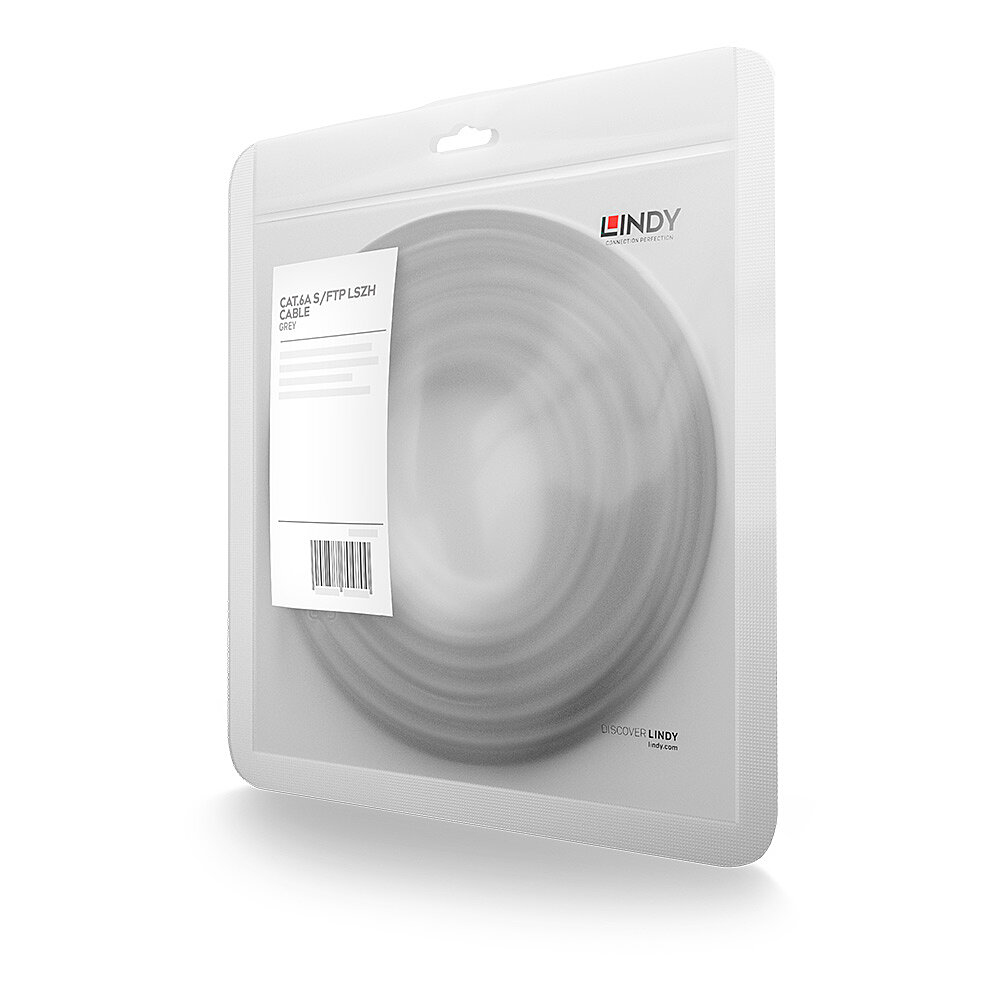

| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Grey |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable class | Ea |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10GBase-T |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 70 m |
| Compliance certificates | CE, REACH, RoHS |
| Sustainability compliance | Yes |
| Other features | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
