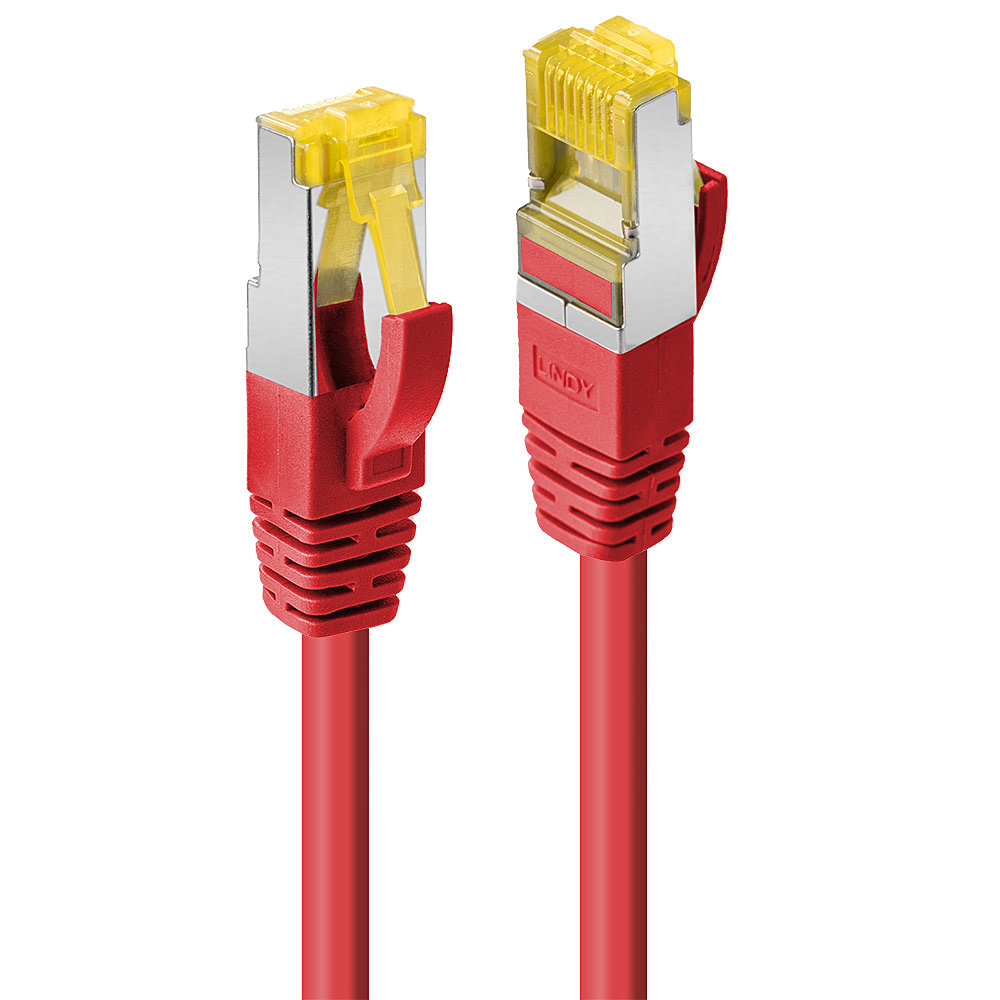

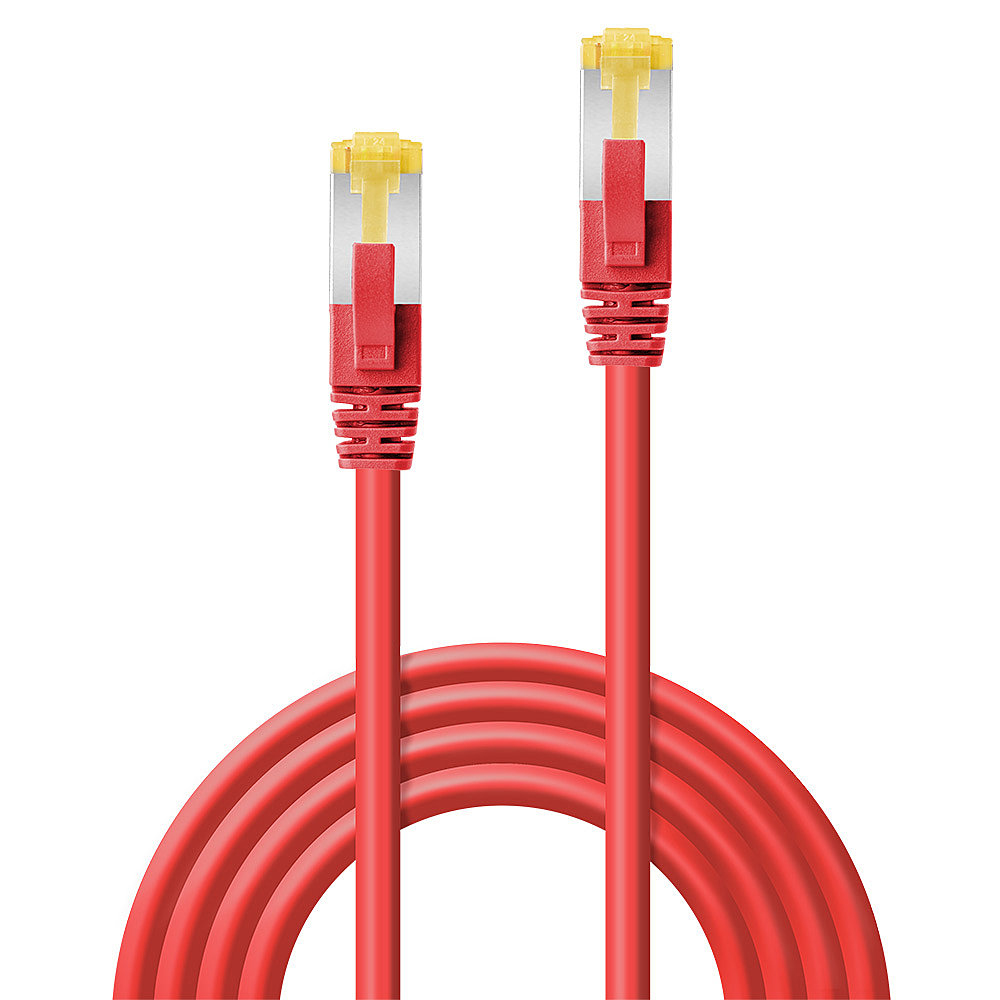

EU Product - Patchkabel Cat6A S/FTP LSZH Cat7 Rohkabel rot 0.30m
Introduction
Lindy's Patch Cables are manufactured and tested to conform with the ISO 11801 specification. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. Gold plated pins ensure complete signal integrity no matter the application.

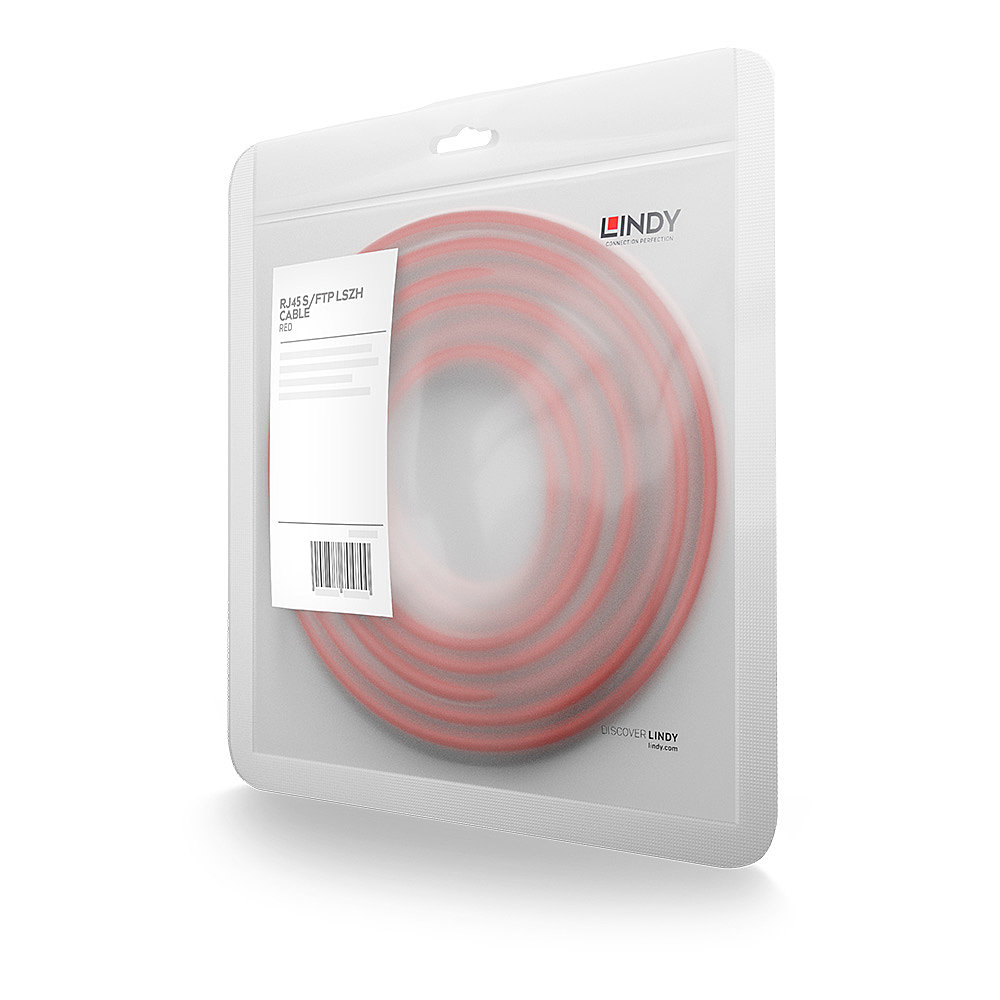

Each cable is packaged in a polybag, Cables of various colours are also available and therefore ideally suited for structured cabling in server cabinets or wall cabinets.
RJ45 connectors offer universal connectivity to computers and network components, such as routers, switches, network printers and network attached storage devices.
These cables are also ideal for use in data centres, rack spaces, server rooms and network cabinets. Additional uses include security systems and AV installations.
This cable uses Cat.7 raw cable (600Mhz) and Cat.6A connectors.
Specifications
| Features | |
|---|---|
| Product colour | Red |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 600 MHz |
| AWG wire size | 26 |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 0.3 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 7.8 cm |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 6.5 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Product colour | Red |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 0.3 m |
| Other features | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
