EU Product - Patchkabel Cat6A U/FTP Flachband weiß 10m
Introduction

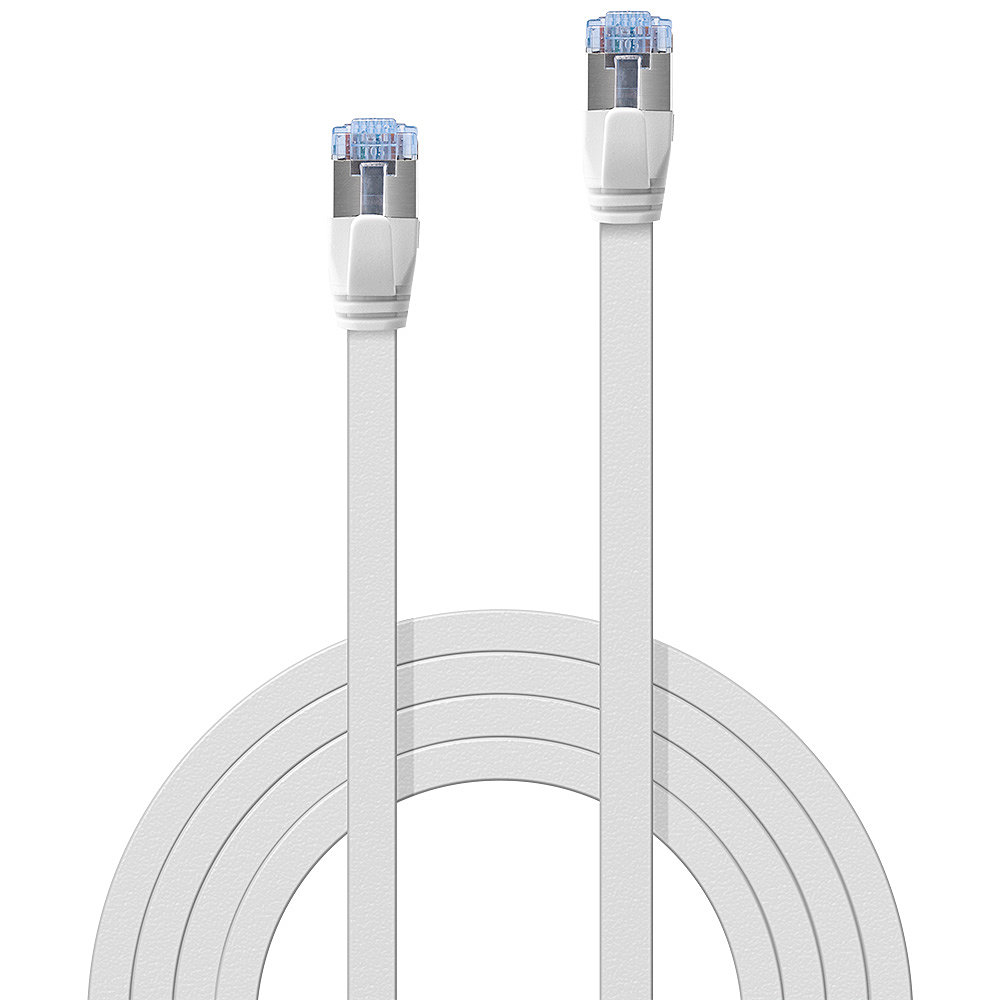

Cat.6A U/FTP flat network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, White.
Specifications
| Features | |
|---|---|
| Product colour | White |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Frequency | 500 MHz |
| AWG wire size | 32 |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 10 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 6 cm |
| Certification | RoHS, REACH, California Proposition 65 |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 40 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
| Weight & dimensions | |
| Connector 2 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Connector 1 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Packaging data | |

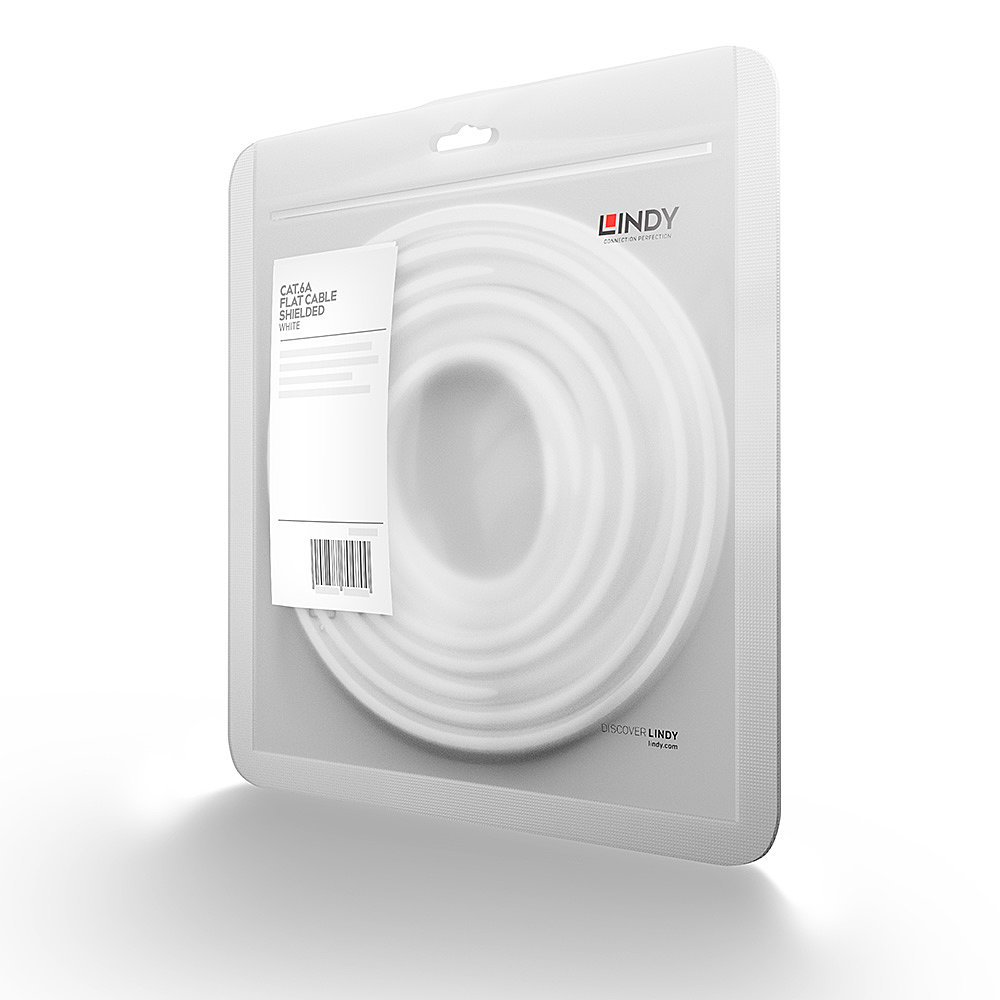

| Package type | Polybag |
| Technical details | |
| Product colour | White |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 10 m |
| Other features | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
