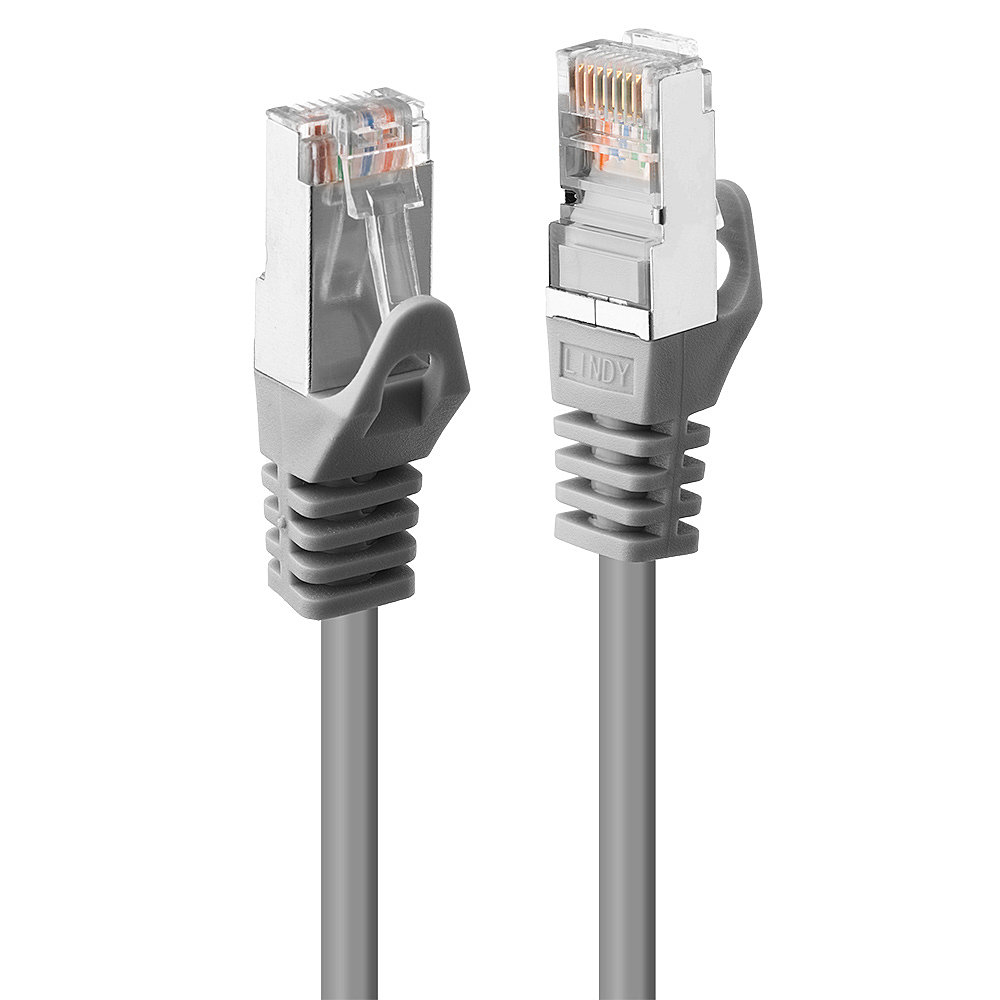

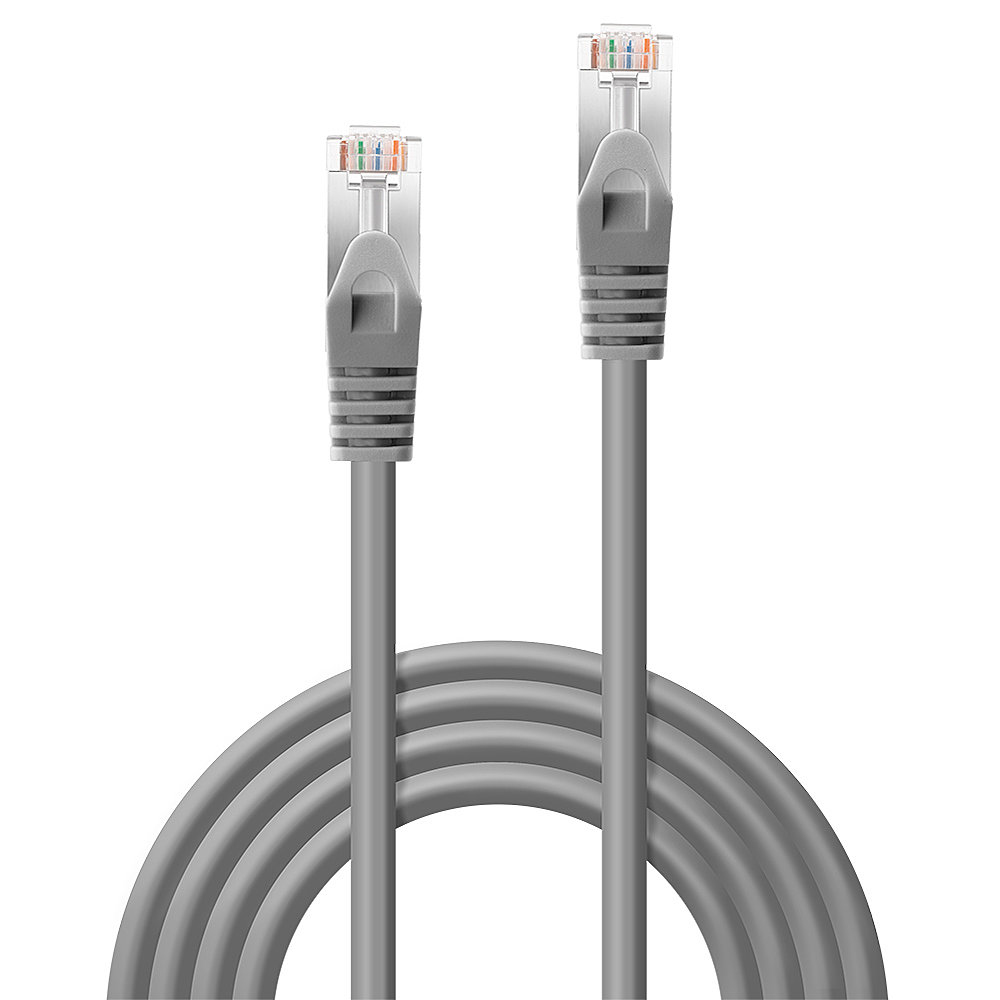

EU Product - Patchkabel Cat5e F/UTP grau 2.00m
Introduction
Cat.5e F/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. With its overall shielding (F/UTP) in the form of a foil, this type of cable has been used reliably for decades in many installations in the prosumer sector as well as in the professional segment, since it can easily be used for Gigabit Ethernet. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.5m, 1m, 2m, 3m, 5m, 10m.
Specifications
| Features | |
|---|---|
| Product colour | Grey |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper-Clad Aluminium (CCA) |
| Frequency | 100 MHz |
| AWG wire size | 26 |
| Cable standard | Cat5e |
| Cable shielding | F/UTP (FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 2 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bend radius (min) | 6 cm |
| Certification | RoHS, REACH, California Proposition 65 |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 5 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |

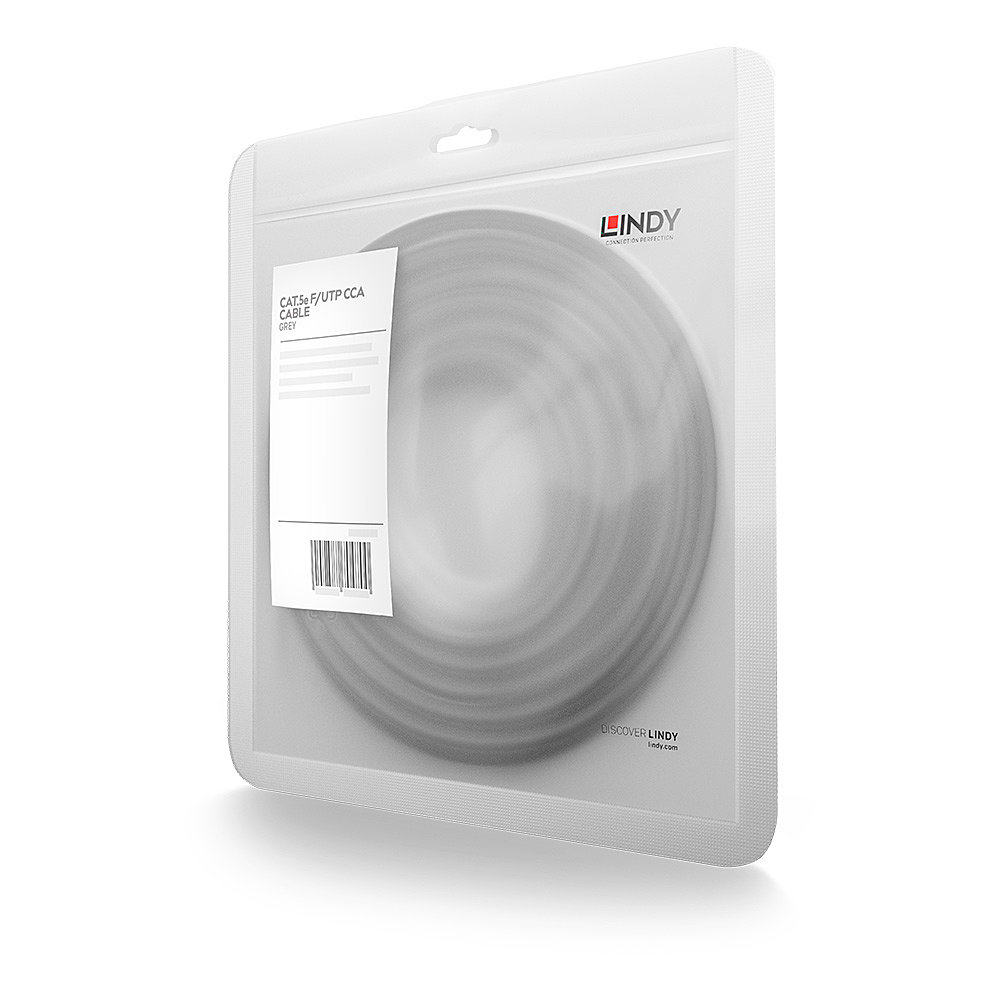

| Package type | Polybag |
| Technical details | |
| Product colour | Grey |
| Cable standard | Cat5e |
| Cable shielding | F/UTP (FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable length | 2 m |
| Other features | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
