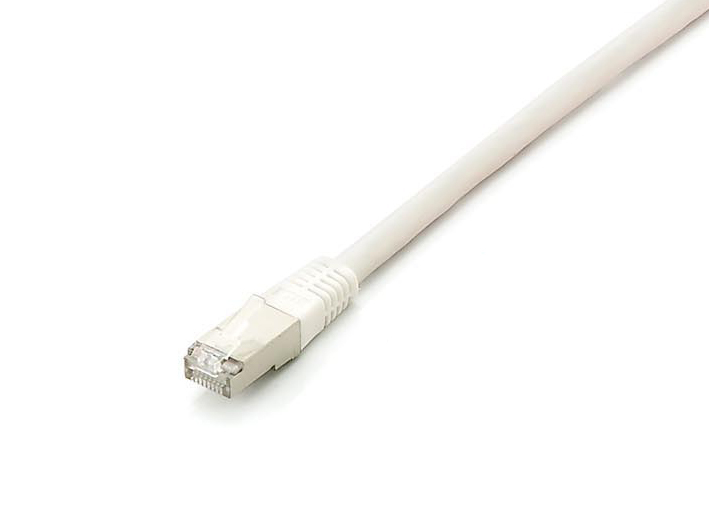

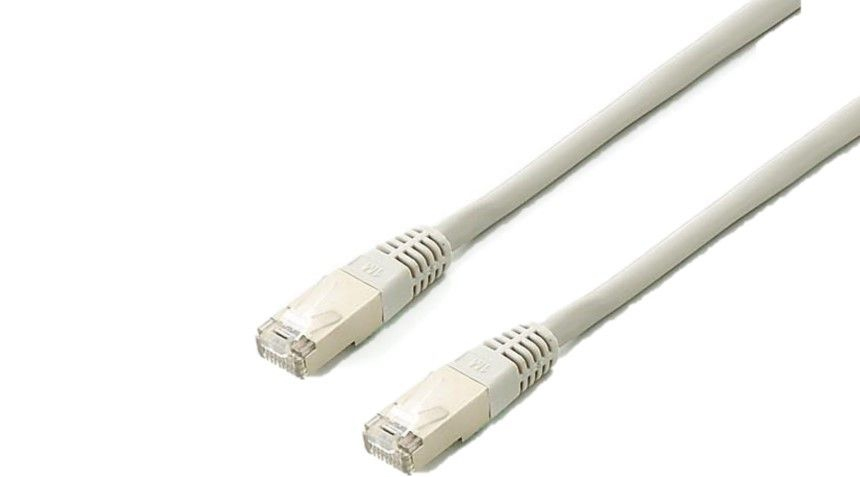

EU Product - Patchkabel Cat6A Plat.S/FTP 2xRJ45 20.00m weiß LSZH Polybeutel
Introduction
Cat.6A Pro S/FTP Patch Cord is composed of preeminent materials and fully-examined to Cat.6A Platinum S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.
Specifications
| Technical details | |
|---|---|
| Product colour | White |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 20 m |
| Country of origin | China |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | CE, REACH, RoHS, UKCA |
| Features | |
| Product colour | White |
| Country of origin | China |
| Conductor material | Copper |
| Molded cable boot | Yes |
| Frequency | 500 MHz |
| AWG wire size | 26/7 |
| Plug and Play | Yes |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10GBase-T |
| Data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Stranded |
| Cable length | 20 m |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power over Ethernet (PoE) | Yes |
| Cable shape | Round |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Weight & dimensions | |
| Width | 8.34 mm |
| Depth | 11.7 mm |
| Height | 20000 mm |
| Outer diameter | 6.1 mm |
| Weight | 745 g |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 50 mm |
| Package height | 290 mm |
| Package weight | 350 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 490 mm |
| Harmonized System (HS) code | 84733080 |
